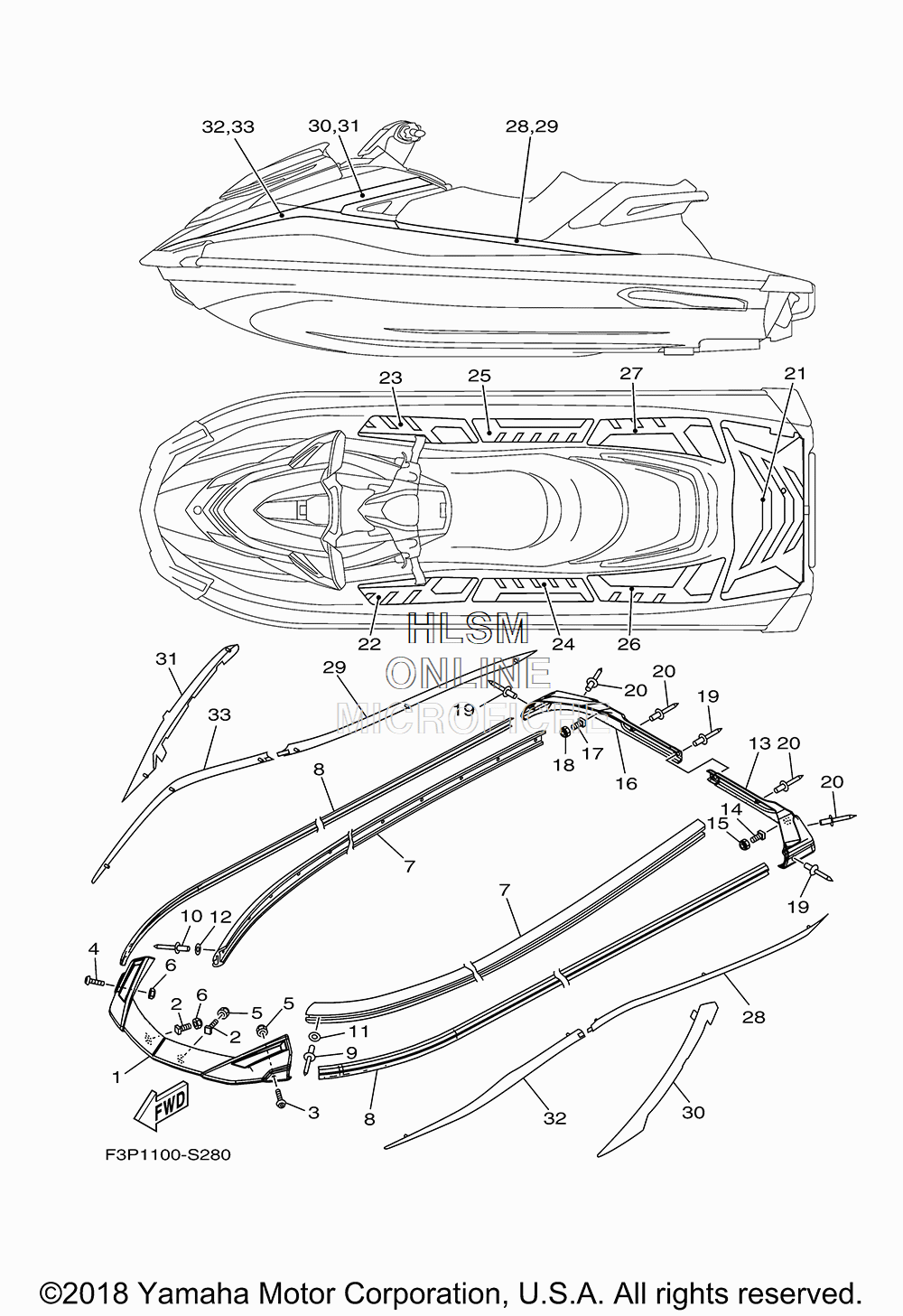

HULL - GUNWALE - MAT для Yamaha GP1800R - 2019 года выпуска

№

Артикул

Название
1

F2X-U2511-10-00 GUNWALE, BOW (YB - YAMAHA BLACK FOR BMG - BLACK METALLIC)

GUNWALE, BOW (YB - YAMAHA BLACK FOR BMG - BLACK METALLIC)
1

F2X-U2511-20-00 GUNWALE, BOW (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)

GUNWALE, BOW (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)
2

F1W-U491K-00-00 BOLT, SPECIAL

BOLT, SPECIAL
3

90110-06191-00 BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD
4

90110-06191-00 BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD
5

F2N-U142L-00-00 NUT, LOCK

NUT, LOCK
6

F2N-U142L-00-00 NUT, LOCK

NUT, LOCK
7

F2X-U2512-20-00 GUNWALE, SIDE (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)

GUNWALE, SIDE (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)
7

F2X-U2512-10-00 GUNWALE, SIDE (YB - YAMAHA BLACK FOR BMG - BLACK METALLIC)

GUNWALE, SIDE (YB - YAMAHA BLACK FOR BMG - BLACK METALLIC)
8

F2X-U2519-40-00 INNER,GUNWALE (RED FOR BMG - BLACK METALLIC)

INNER,GUNWALE (RED FOR BMG - BLACK METALLIC)
8

F2X-U2519-10-00 INNER,GUNWALE (YB - YAMAHA BLACK FOR VPBM6 - BLUE METALLIC)

INNER,GUNWALE (YB - YAMAHA BLACK FOR VPBM6 - BLUE METALLIC)
9

90267-489U8-00 RIVET, BLIND

RIVET, BLIND
10

90267-489U8-00 RIVET, BLIND

RIVET, BLIND
11

9299R-05200-00 WASHER

WASHER
12

9299R-05200-00 WASHER

WASHER
13

F2X-U251D-10-00 GUNWALE, STERN 1 (YB - YAMAHA BLACK FOR BMG - BLACK METALLIC)

GUNWALE, STERN 1 (YB - YAMAHA BLACK FOR BMG - BLACK METALLIC)
13

F2X-U251D-20-00 GUNWALE, STERN 1 (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)

GUNWALE, STERN 1 (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)
14

F1W-U491K-00-00 BOLT, SPECIAL

BOLT, SPECIAL
15

F2N-U142L-00-00 NUT, LOCK

NUT, LOCK
16

F2X-U251E-10-00 GUNWALE, STERN 2 (YB - YAMAHA BLACK FOR BMG - BLACK METALLIC)

GUNWALE, STERN 2 (YB - YAMAHA BLACK FOR BMG - BLACK METALLIC)
16

F2X-U251E-20-00 GUNWALE, STERN 2 (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)

GUNWALE, STERN 2 (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)
17

F1W-U491K-00-00 BOLT, SPECIAL

BOLT, SPECIAL
18

F2N-U142L-00-00 NUT, LOCK

NUT, LOCK
19

90267-48825-00 RIVET, BLIND

RIVET, BLIND
20

90267-48825-00 RIVET, BLIND

RIVET, BLIND
21

F3P-U3581-00-00 MAT, UPPER (GRAY/BLACK FOR BMG - BLACK METALLIC)

MAT, UPPER (GRAY/BLACK FOR BMG - BLACK METALLIC)
21

F3P-U3581-10-00 MAT, UPPER (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)

MAT, UPPER (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
22

F3P-U351H-00-00 MAT, STEP 1 (GRAY/BLACK FOR BMG - BLACK METALLIC)

MAT, STEP 1 (GRAY/BLACK FOR BMG - BLACK METALLIC)
22

F3P-U351H-10-00 MAT, STEP 1 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)

MAT, STEP 1 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
23

F3P-U351J-10-00 MAT, STEP 2 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)

MAT, STEP 2 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
23

F3P-U351J-00-00 MAT, STEP 2 (GRAY/BLACK FOR BMG - BLACK METALLIC)

MAT, STEP 2 (GRAY/BLACK FOR BMG - BLACK METALLIC)
24

F3P-U351K-10-00 MAT, STEP 3 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)

MAT, STEP 3 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
24

F3P-U351K-00-00 MAT, STEP 3 (GRAY/BLACK FOR BMG - BLACK METALLIC)

MAT, STEP 3 (GRAY/BLACK FOR BMG - BLACK METALLIC)
25

F3P-U351M-10-00 MAT, STEP 4 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)

MAT, STEP 4 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
25

F3P-U351M-00-00 MAT, STEP 4 (GRAY/BLACK FOR BMG - BLACK METALLIC)

MAT, STEP 4 (GRAY/BLACK FOR BMG - BLACK METALLIC)
26

F3P-U351N-00-00 MAT, STEP 5 (GRAY/BLACK FOR BMG - BLACK METALLIC)

MAT, STEP 5 (GRAY/BLACK FOR BMG - BLACK METALLIC)
26

F3P-U351N-10-00 MAT, STEP 5 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)

MAT, STEP 5 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
27

F3P-U351P-00-00 MAT, STEP 6 (GRAY/BLACK FOR BMG - BLACK METALLIC)

MAT, STEP 6 (GRAY/BLACK FOR BMG - BLACK METALLIC)
27

F3P-U351P-10-00 MAT, STEP 6 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)

MAT, STEP 6 (BLACK/BLUE FOR VPBM6 - BLUE METALLIC)
28

F2X-U89A8-41-00 ORNAMENT, STERN (LEFT HAND) (RED FOR BMG - BLACK METALLIC)

ORNAMENT, STERN (LEFT HAND) (RED FOR BMG - BLACK METALLIC)
28

F2X-U89A8-50-00 ORNAMENT, STERN (LEFT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)

ORNAMENT, STERN (LEFT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)
29

F2X-U89A9-41-00 ORNAMENT, STERN (RIGHT HAND) (RED FOR BMG - BLACK METALLIC)

ORNAMENT, STERN (RIGHT HAND) (RED FOR BMG - BLACK METALLIC)
29

F2X-U89A9-50-00 ORNAMENT, STERN (RIGHT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)

ORNAMENT, STERN (RIGHT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)
30

F2X-U89AA-41-00 ORNAMENT, MIDDLE (LEFT HAND) (RED FOR BMG - BLACK METALLIC)

ORNAMENT, MIDDLE (LEFT HAND) (RED FOR BMG - BLACK METALLIC)
30

F2X-U89AA-50-00 ORNAMENT, MIDDLE (LEFT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)

ORNAMENT, MIDDLE (LEFT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)
31

F2X-U89AB-50-00 ORNAMENT, MIDDLE (RIGHT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)

ORNAMENT, MIDDLE (RIGHT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)
31

F2X-U89AB-41-00 ORNAMENT, MIDDLE (RIGHT HAND) (RED FOR BMG - BLACK METALLIC)

ORNAMENT, MIDDLE (RIGHT HAND) (RED FOR BMG - BLACK METALLIC)
32

F2X-U89AC-50-00 ORNAMENT, BOW (LEFT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)

ORNAMENT, BOW (LEFT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)
32

F2X-U89AC-41-00 ORNAMENT, BOW (LEFT HAND) (RED FOR BMG - BLACK METALLIC)

ORNAMENT, BOW (LEFT HAND) (RED FOR BMG - BLACK METALLIC)
33

F2X-U89AD-41-00 ORNAMENT, BOW (RIGHT HAND) (RED FOR BMG - BLACK METALLIC)

ORNAMENT, BOW (RIGHT HAND) (RED FOR BMG - BLACK METALLIC)
33

F2X-U89AD-50-00 ORNAMENT, BOW (RIGHT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)

ORNAMENT, BOW (RIGHT HAND) (PURW - PURE WHITE FOR VPBM6 - BLUE METALLIC)
