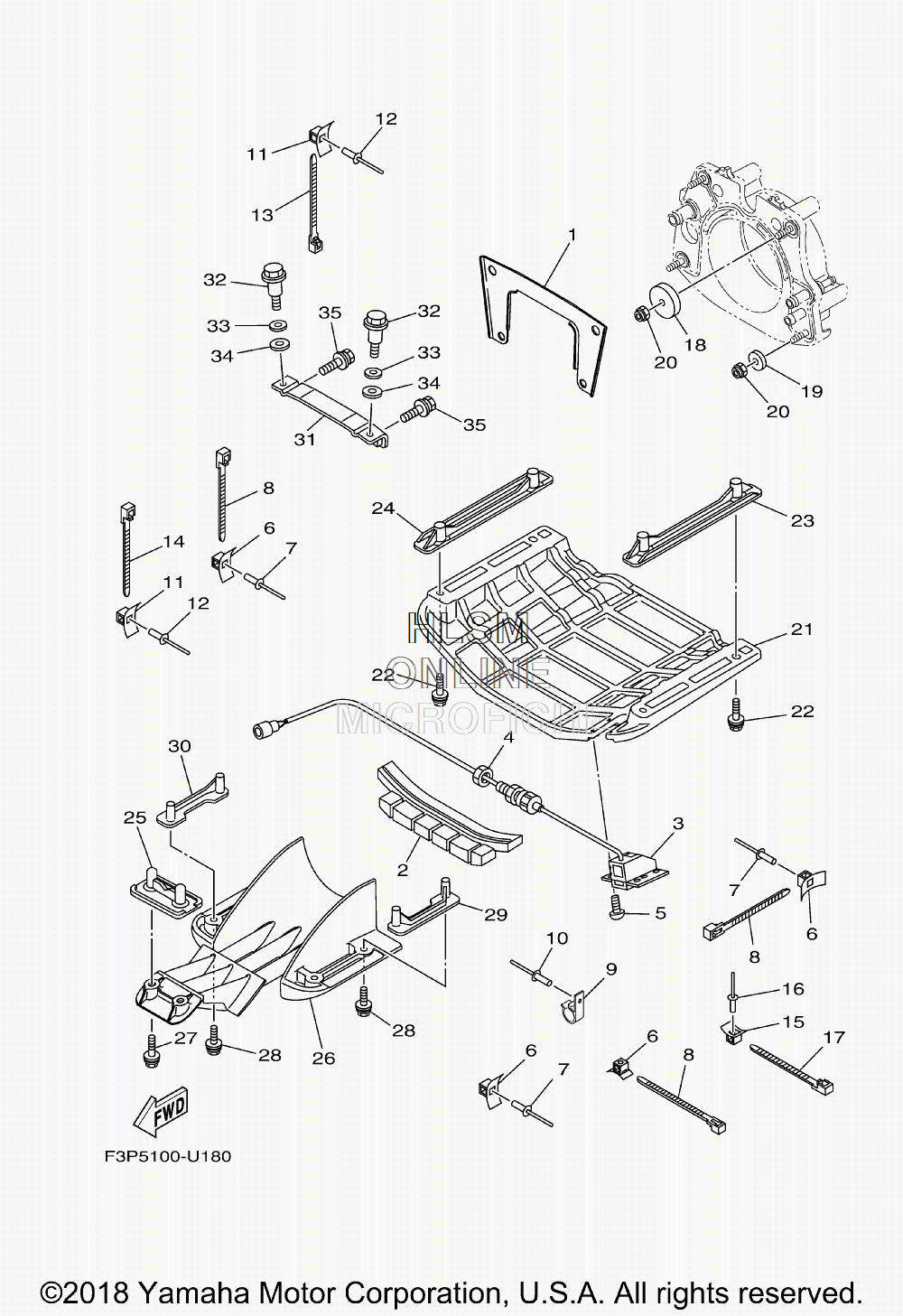

INTAKE AND RIDE PLATE ASSY для Yamaha GP1800R - 2019 года выпуска`
-
№АртикулНазвание
-
16EY-R1959-00-00 BRACKETBRACKET
-
2F2X-U72C0-00-00 SPACERSPACER
-
3F1S-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
4F2C-U151S-00-00 NUTNUT
-
590150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
6F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
890464-32801-00 CLAMPCLAMP
-
9F3J-U8368-01-00 CLAMPCLAMP
-
1090267-409U5-00 RIVET, BLINDRIVET, BLIND
-
11F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1290267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1390464-32801-00 CLAMPCLAMP
-
1490601-200U2-00 BANDBAND
-
15F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1690267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1790601-200U2-00 BANDBAND
-
18F1S-U725E-01-00 WASHERWASHER
-
1990201-10801-00 WASHER, PLATEWASHER, PLATE
-
209572R-10300-00 NUT, NYLONNUT, NYLON
-
21F3P-U273B-00-00 PLATE 2PLATE 2
-
2290119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
23F2X-U8572-00-00 BRACKET 2BRACKET 2
-
24F2X-U8572-00-00 BRACKET 2BRACKET 2
-
25F2S-U8577-00-00 BRACKET, 3BRACKET, 3
-
26F3P-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
2790119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2890119-08827-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
29F2X-U8571-00-00 BRACKET 1BRACKET 1
-
30F2X-U8571-00-00 BRACKET 1BRACKET 1
-
31F2C-U7557-01-00 BRACKETBRACKET
-
3290109-08041-00 BOLTBOLT
-
3392990-12200-00 WASHER, PLAINWASHER, PLAIN
-
3490430-12002-00 GASKETGASKET
-
3590119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
