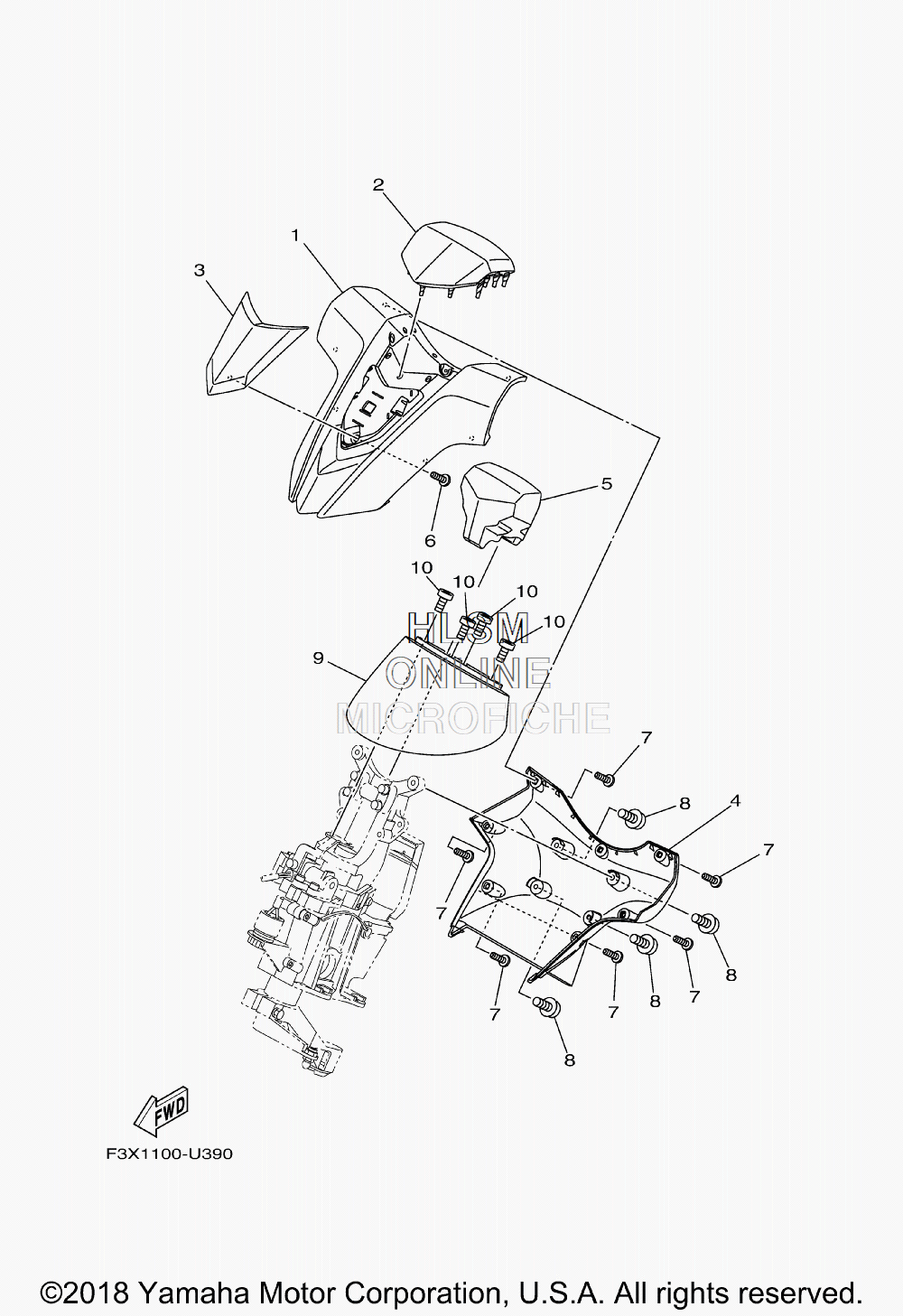

STEERING - PADDING для Yamaha FX SVHO - 2019 года выпуска`
-
№АртикулНазвание
-
1F3X-U143D-00-00 PAD, STEERING 1PAD, STEERING 1
-
2F3X-U142D-00-00 COVER, PADCOVER, PAD
-
3F3X-U142M-10-00 BASE, PADBASE, PAD
-
4F3X-U143E-00-00 PAD, STEERING 2PAD, STEERING 2
-
5F3X-U142E-00-00 CUSHION, PAD 1CUSHION, PAD 1
-
6F2S-U13C1-00-00 SCREWSCREW
-
7F2S-U13C1-00-00 SCREWSCREW
-
8F3Y-U2624-00-00 BOLTBOLT
-
9F2S-U143L-01-00 PAD, STEERING 3PAD, STEERING 3
-
1090154-06030-00 SCREW, BINDINGSCREW, BINDING
Все узлы модели:
- AIR CLEANER ASSY.
- BILGE PUMP
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD ASSY
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL - BATTERY
- ELECTRICAL - FUSE BOX
- ELECTRICAL - SENSORS
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - BILGE STRAINER
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT - REAR GRIP
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- • STEERING - PADDING
- SUPER CHARGER ASSY
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
