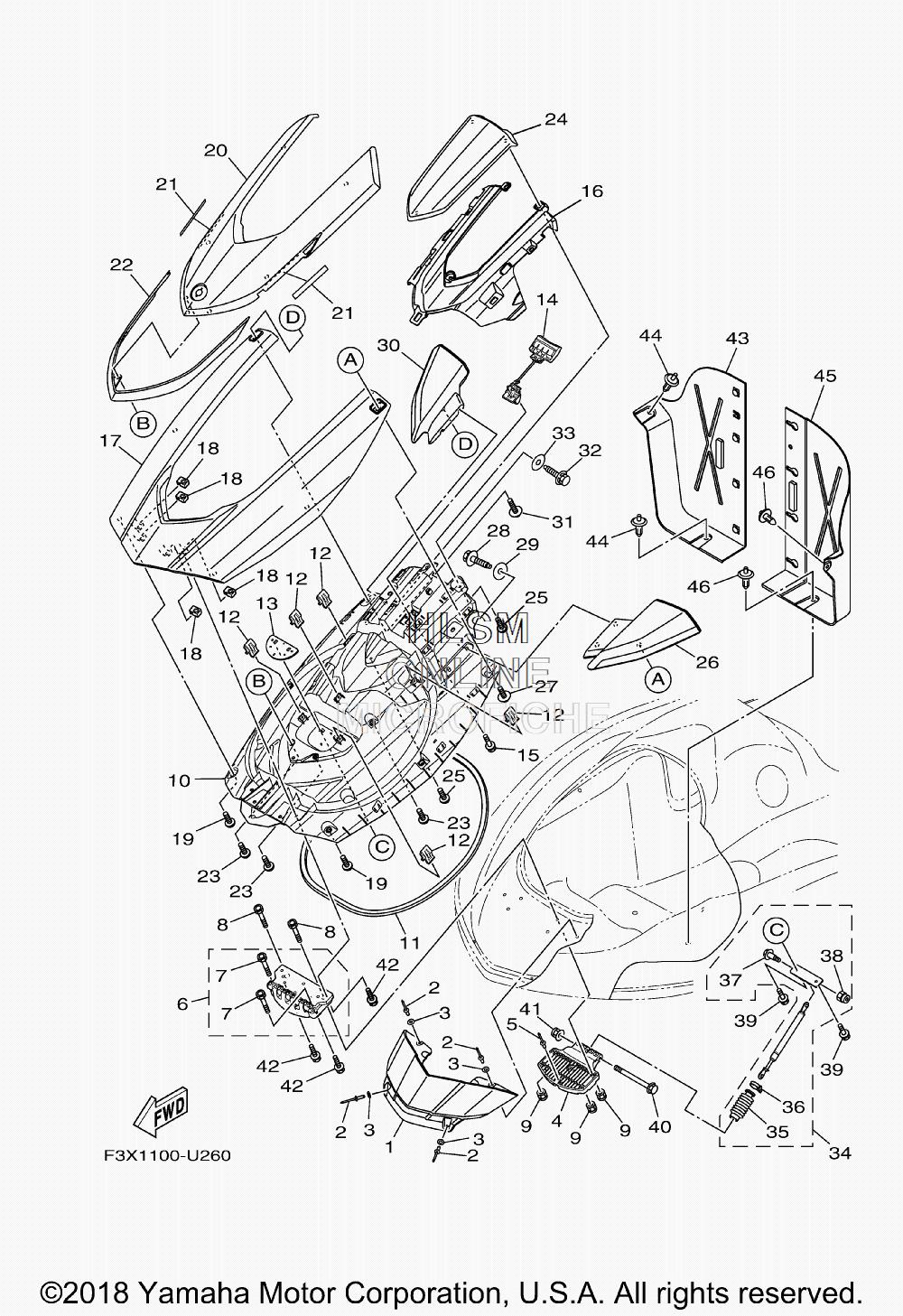

FRONT STORAGE W/ COVER для Yamaha FX SVHO - 2019 года выпуска
-
№АртикулНазвание
-
1F3X-U513M-01-P0 COVER, FRONT (PURW - PURE WHITE)COVER, FRONT (PURW - PURE WHITE)
-
290267-489U6-00 RIVET, BLINDRIVET, BLIND
-
39299R-05200-00 WASHERWASHER
-
4F3X-U518E-00-00 PLATE, HINGE LIDPLATE, HINGE LID
-
590267-489U6-00 RIVET, BLINDRIVET, BLIND
-
6F3X-U517D-01-00 HINGE, LIDHINGE, LID
-
7F3X-U3222-00-00 ...BOLT...BOLT
-
8F3X-U3222-00-00 BOLTBOLT
-
9F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
10F3X-U519G-00-00 INNER, ENGINE HATCHINNER, ENGINE HATCH
-
11F3X-U2663-00-00 PACKING 1PACKING 1
-
12F3Y-U153K-00-00 CLIPCLIP
-
13F3X-U5148-00-00 PLATE, HATCHPLATE, HATCH
-
14F3X-U517C-00-00 LOCK, LIDLOCK, LID
-
1590119-059U4-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
16F3X-U519F-00-00 OUTER, ENGINE HATCHOUTER, ENGINE HATCH
-
17F3X-U517B-00-P0 LID, ENGINE ROOM (PURW - PURE WHITE)LID, ENGINE ROOM (PURW - PURE WHITE)
-
18F3X-U517E-00-00 NUTNUT
-
19F2S-U13C1-00-00 SCREWSCREW
-
20F3X-U515N-00-P2 VISOR (RM9)VISOR (RM9)
-
21F0X-U515E-01-00 DAMPER 2DAMPER 2
-
22F3X-U517V-00-00 ORNAMENT, CENTERORNAMENT, CENTER
-
23F2S-U13C1-00-00 SCREWSCREW
-
24F3X-U515P-10-00 VISOR, 2VISOR, 2
-
25F2S-U13C1-00-00 SCREWSCREW
-
26F3X-U590D-00-00 MIRROR ASSY 1MIRROR ASSY 1
-
27F3X-U7823-11-00 SCREWSCREW
-
2890119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2990201-068G0-00 WASHER, PLATEWASHER, PLATE
-
30F3X-U590E-00-00 MIRROR ASSY 2MIRROR ASSY 2
-
31F3X-U7823-11-00 SCREWSCREW
-
3290119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3390201-068G0-00 WASHER, PLATEWASHER, PLATE
-
34F2S-6514S-00-00 DAMPER ASSYDAMPER ASSY
-
35F1W-6514T-00-00 ...COVER, DAMPER...COVER, DAMPER
-
361UA-82591-00-00 ...BAND...BAND
-
3790109-06218-00 ...BOLT...BOLT
-
3895720-06300-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
3990119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
40F3X-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
41F3Y-U142L-00-00 NUT, LOCKNUT, LOCK
-
4290119-06896-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
43F3X-U475B-00-00 LOCKER, BOWLOCKER, BOW
-
4490269-08801-00 RIVETRIVET
-
45F3X-U475F-00-00 PLATE, LOKER BOWPLATE, LOKER BOW
-
4690269-08801-00 RIVETRIVET
