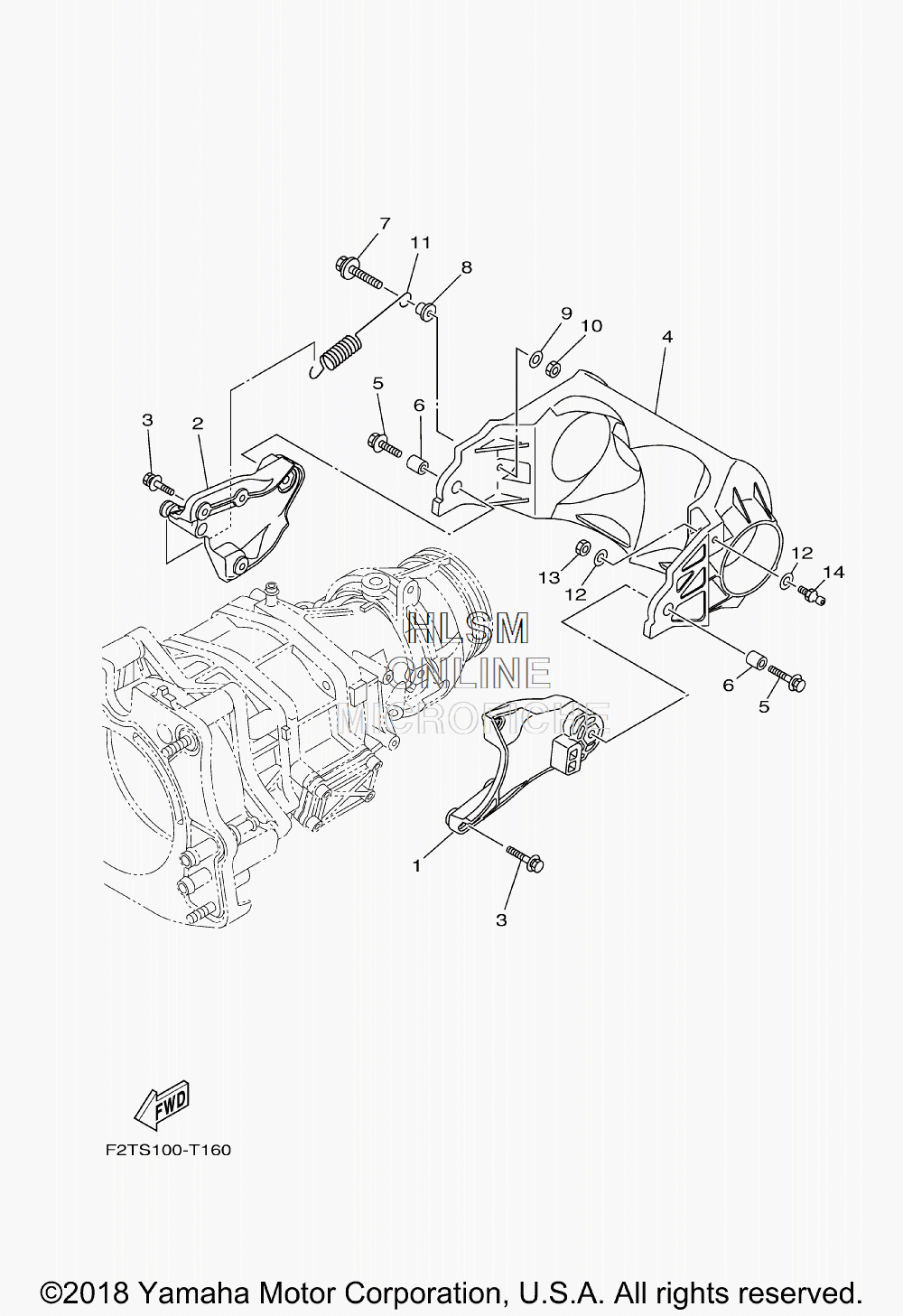

REVERSE GATE для Yamaha FX CRUISER SVHO - 2019 года выпуска`
-
№АртикулНазвание
-
16ET-R1341-10-00 BRACKET 1BRACKET 1
-
26ET-R1342-10-00 BRACKET 2BRACKET 2
-
390119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
46ET-R1314-10-00 GATE, REVERSEGATE, REVERSE
-
590119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690387-08M30-00 COLLARCOLLAR
-
790119-069UX-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890387-06319-00 COLLARCOLLAR
-
990201-06801-00 WASHER, PLATEWASHER, PLATE
-
1095380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
116S5-R2358-00-00 SPRING, RETAINERSPRING, RETAINER
-
1290201-06801-00 WASHER, PLATEWASHER, PLATE
-
1395380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
146GA-U1461-10-00 STUD, JOINT BALLSTUD, JOINT BALL
