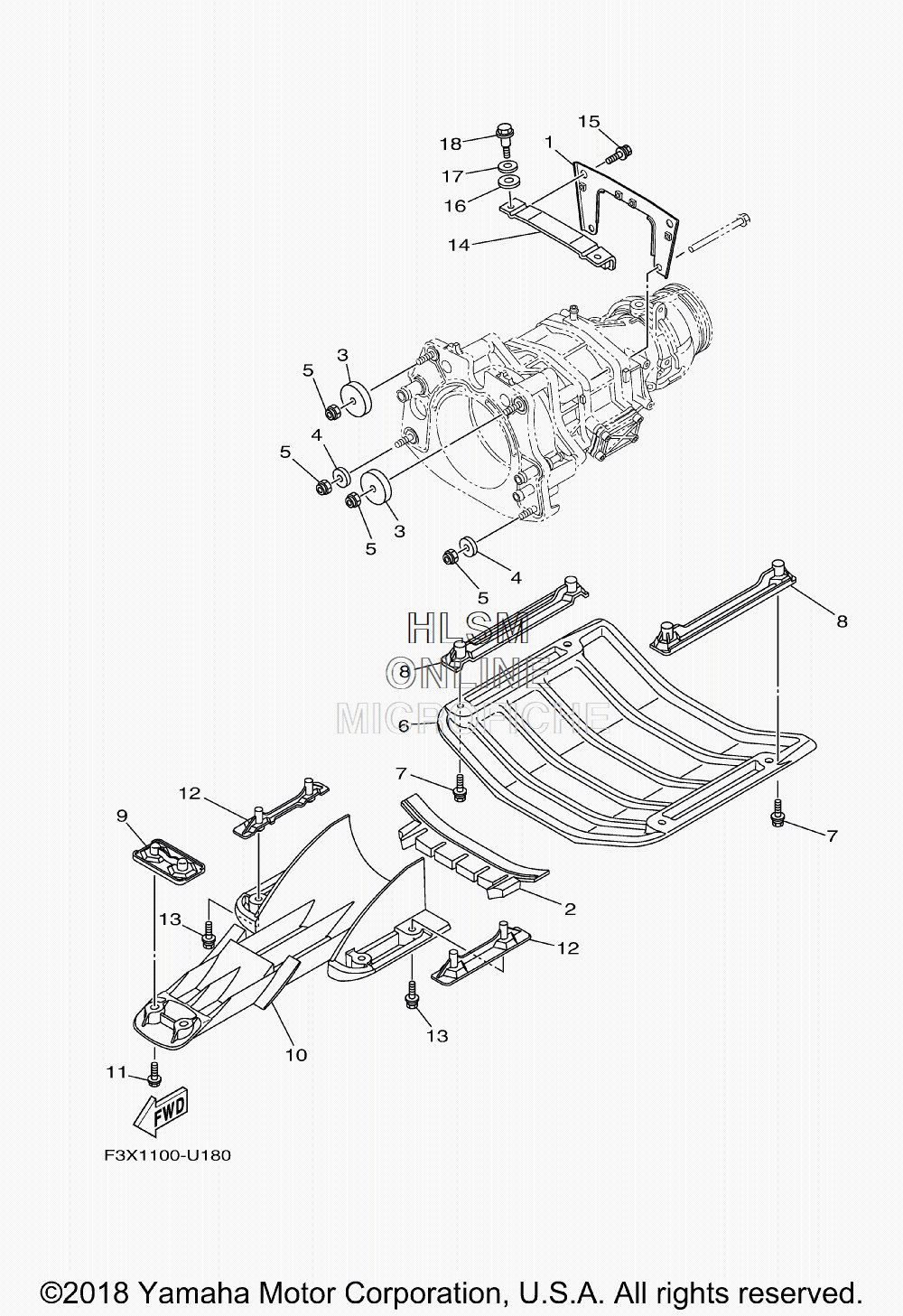

INTAKE AND RIDE PLATE ASSY для Yamaha FX CRUISER SVHO - 2019 года выпуска
-
№АртикулНазвание
-
16EY-R1959-00-00 BRACKETBRACKET
-
2F2S-U72C0-01-00 SPACERSPACER
-
3F1S-U725E-01-00 WASHERWASHER
-
490201-10801-00 WASHER, PLATEWASHER, PLATE
-
59572R-10300-00 NUT, NYLONNUT, NYLON
-
6F3X-U273B-01-00 PLATE 2PLATE 2
-
790119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
8F1B-U8572-01-00 BRACKET 2BRACKET 2
-
9F2S-U8577-00-00 BRACKET, 3BRACKET, 3
-
106ET-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
1190119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
12F1G-U8571-02-00 BRACKET 1BRACKET 1
-
1390119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
14F2C-U7557-01-00 BRACKETBRACKET
-
1590119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690430-12002-00 GASKETGASKET
-
1792990-12200-00 WASHER, PLAINWASHER, PLAIN
-
1890109-08041-00 BOLTBOLT
