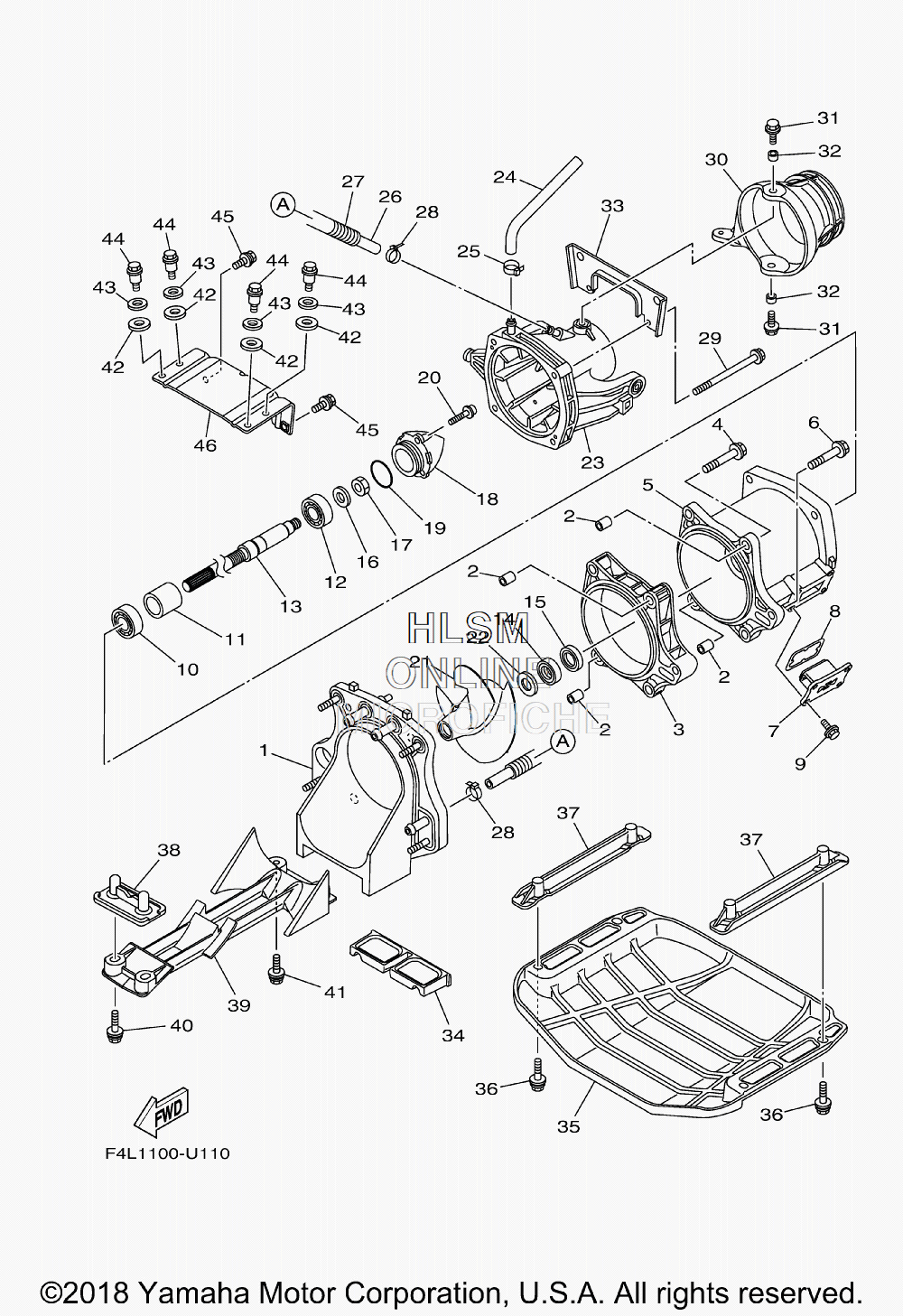

PROPULSION SYSTEM - EXTERNAL для Yamaha EXR - 2019 года выпуска`
-
№АртикулНазвание
-
16GA-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
299590-14016-00 PIN, DOWELPIN, DOWEL
-
36GY-R1317-00-00 HOUSING, IMPELLER 2HOUSING, IMPELLER 2
-
490119-10817-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
56GA-R1312-01-00 HOUSING, IMPELLERHOUSING, IMPELLER
-
697595-10565-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
76GA-G6882-00-00 FILTERFILTER
-
86GA-G2414-00-00 O-RINGO-RING
-
990119-06889-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1093306-205U0-00 BEARINGBEARING
-
1165V-G5538-00-00 SPACER 1SPACER 1
-
1293306-304U1-00 BEARINGBEARING
-
136GY-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
1493101-28M66-00 OIL SEALOIL SEAL
-
1593101-28002-00 OIL SEALOIL SEAL
-
1692990-16600-00 WASHERWASHER
-
1795317-16700-00 NUTNUT
-
186GY-R1326-00-00 CAPCAP
-
1993210-44003-00 O-RINGO-RING
-
2090110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
216GY-R1321-02-00 IMPELLERIMPELLER
-
226EY-R1348-00-00 SPACERSPACER
-
236GA-R1318-00-00 NOZZLENOZZLE
-
246GY-U72M2-00-00 HOSE 1HOSE 1
-
2590601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
2690445-14M24-00 HOSE (L260)HOSE (L260)
-
2790446-20M24-00 HOSE (L230)HOSE (L230)
-
2890465-11829-00 CLAMPCLAMP
-
2990119-08827-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
306BU-R1313-00-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
3190119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290387-08M06-00 COLLARCOLLAR
-
336GA-R1959-00-00 BRACKETBRACKET
-
34F3Y-U72C0-00-00 SPACERSPACER
-
35F3Y-U273B-01-00 PLATE 2PLATE 2
-
36F4L-U3222-00-00 BOLTBOLT
-
37F0V-U8572-01-00 BRACKET 2BRACKET 2
-
38F2S-U8577-00-00 BRACKET 3BRACKET 3
-
39F4L-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
40F3Y-U1426-00-00 BOLTBOLT
-
41F3Y-U1426-00-00 BOLTBOLT
-
4290430-12002-00 GASKETGASKET
-
4392990-12200-00 WASHER, PLAINWASHER, PLAIN
-
4490109-08041-00 BOLTBOLT
-
4590119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
46F4L-U7557-00-00 BRACKETBRACKET
