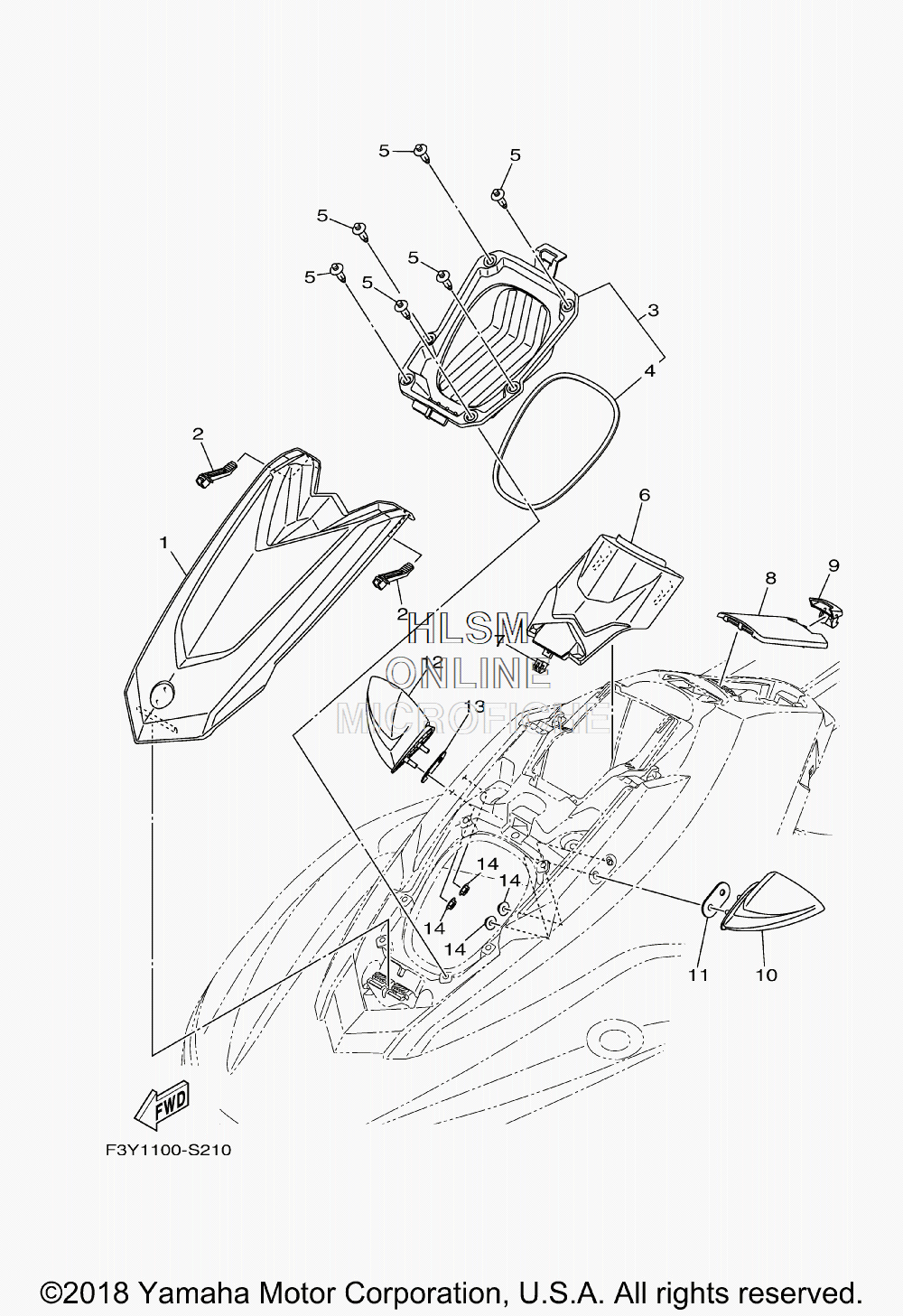

FRONT STORAGE W/ COVER для Yamaha EXR - 2019 года выпуска`
-
№АртикулНазвание
-
1F3Y-U517B-00-P5 LID, ENGINE ROOM (VLGS6 - LEAF GREEN)LID, ENGINE ROOM (VLGS6 - LEAF GREEN)
-
2F3Y-U264L-00-00 LOCK 1LOCK 1
-
3F3Y-U475A-00-00 BOWLOCKER ASSYBOWLOCKER ASSY
-
4F3Y-U2663-00-00 ...PACKING 1...PACKING 1
-
590269-08801-00 RIVETRIVET
-
6F3Y-U513M-00-00 COVER, FRONTCOVER, FRONT
-
7F3Y-U153K-00-00 CLIPCLIP
-
8F3Y-U517H-00-00 LID HATCHLID HATCH
-
9F3Y-U2875-00-00 LOCKLOCK
-
10F3Y-U596B-10-00 MIRROR (LEFT HAND)MIRROR (LEFT HAND)
-
11F3Y-U4953-00-00 PLATE APLATE A
-
12F3Y-U596C-10-00 MIRROR (RIGHT HAND)MIRROR (RIGHT HAND)
-
13F3Y-U4953-00-00 PLATE APLATE A
-
149572R-08300-00 NUT, FLANGENUT, FLANGE
