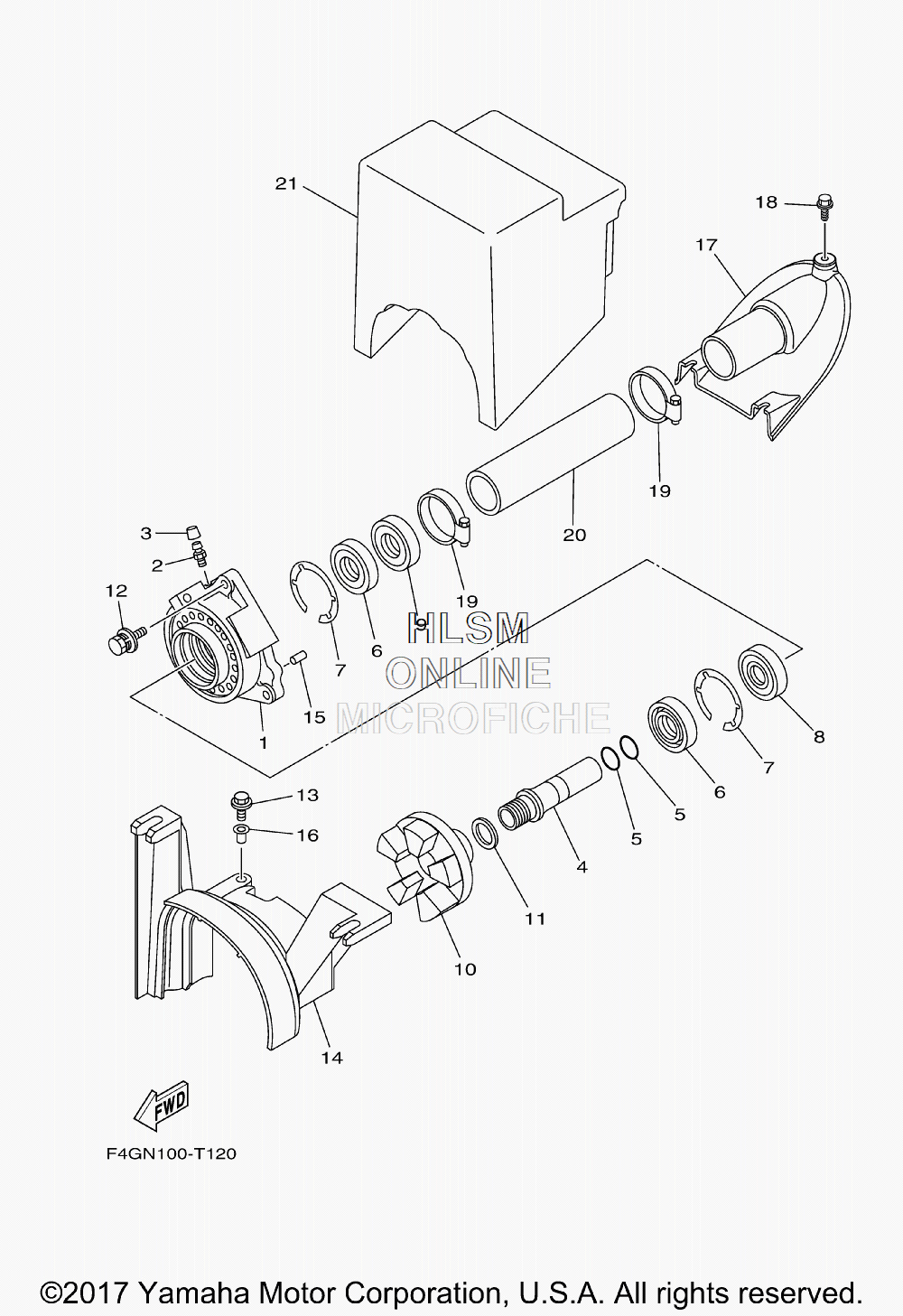

PROPULSION SYSTEM - INTERNAL для Yamaha VX LIMITED - 2018 года выпуска`
-
№АртикулНазвание
-
161X-45332-03-00 HOUSING, BEARINGHOUSING, BEARING
-
293700-06M03-00 NIPPLE, GREASENIPPLE, GREASE
-
3663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
460E-R1323-00-00 SHAFT, COUPLERSHAFT, COUPLER
-
593210-19001-00 O-RINGO-RING
-
693101-25M55-00 OIL SEALOIL SEAL
-
799009-52500-00 CIRCLIPCIRCLIP
-
893306-205A3-00 BEARINGBEARING
-
993102-25009-00 OIL SEALOIL SEAL
-
106EY-G5593-00-00 FLANGE, COUPLING 1FLANGE, COUPLING 1
-
1190201-27800-00 WASHER, PLATEWASHER, PLATE
-
12F4G-U1369-00-00 BOLTBOLT
-
1390119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
146EY-R1381-00-00 COVERCOVER
-
1593606-12019-00 PIN, DOWELPIN, DOWEL
-
1690387-06289-00 COLLARCOLLAR
-
17F2N-U883E-00-00 JOINT, PIPEJOINT, PIPE
-
1890109-06832-00 BOLTBOLT
-
1990601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
20F2N-U883B-00-00 PIPE 1PIPE 1
-
21F1K-U892D-00-00 FLOTATION, STERNFLOTATION, STERN
Все узлы модели:
- AIR SILENCER W/ INTAKE
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- • PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- SUPER CHARGER ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
