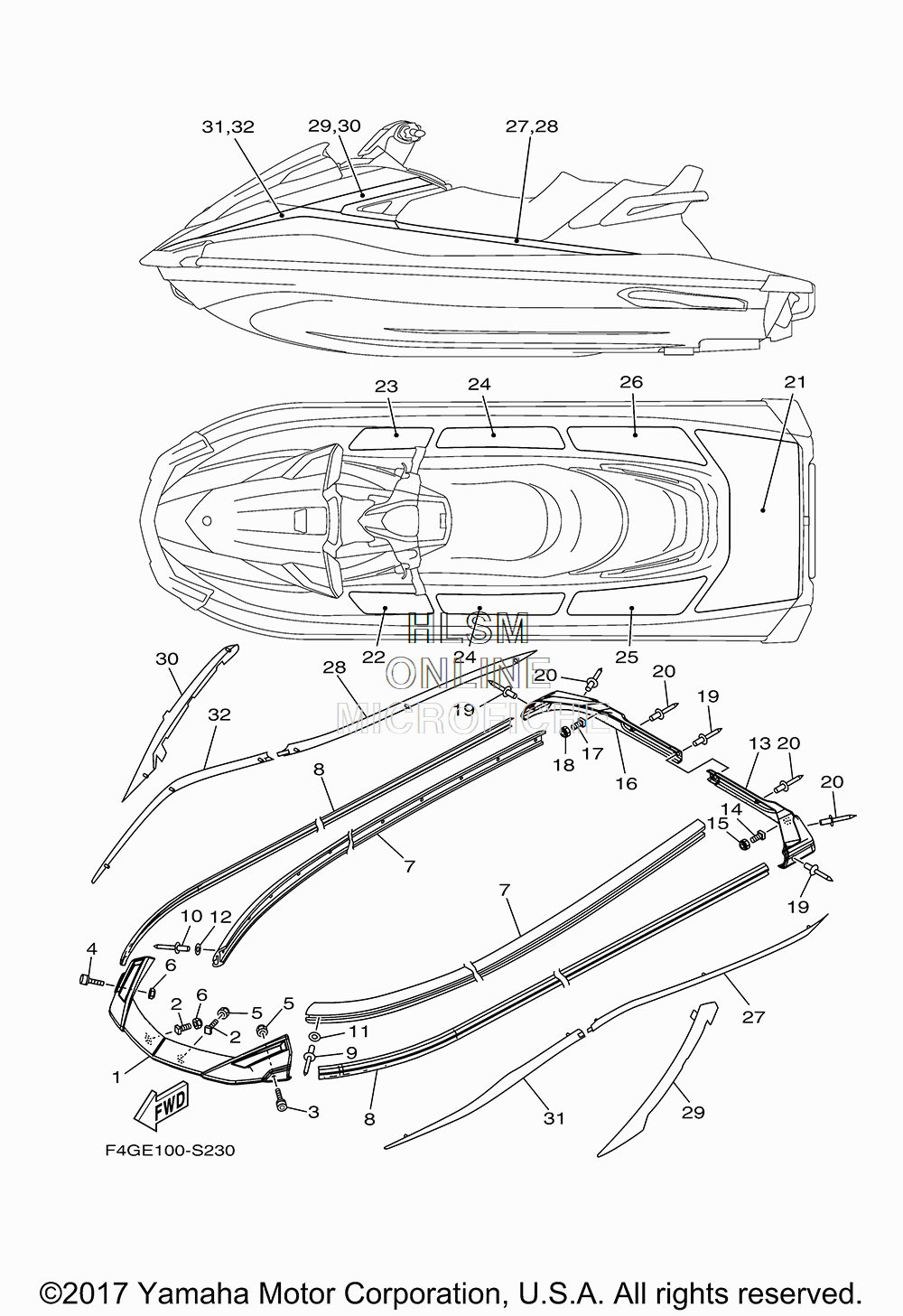

HULL - GUNWALE - MAT для Yamaha VX LIMITED - 2018 года выпуска`
-
№АртикулНазвание
-
1F2X-U2511-20-00 GUNWALE, BOW (PURW - WHITE)GUNWALE, BOW (PURW - WHITE)
-
2F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390110-06191-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490110-06191-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
6F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
7F2X-U2512-20-00 GUNWALE, SIDE (PURW)GUNWALE, SIDE (PURW)
-
8F2X-U2519-40-00 INNER,GUNWALE (RED)INNER,GUNWALE (RED)
-
990267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1090267-489U8-00 RIVET, BLINDRIVET, BLIND
-
119299R-05200-00 WASHERWASHER
-
129299R-05200-00 WASHERWASHER
-
13F2X-U251D-20-00 GUNWALE, STERN 1 (PURW - WHITE)GUNWALE, STERN 1 (PURW - WHITE)
-
14F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
15F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
16F2X-U251E-20-00 GUNWALE, STERN 2 (PURW - WHITE)GUNWALE, STERN 2 (PURW - WHITE)
-
17F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
18F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1990267-48825-00 RIVET, BLINDRIVET, BLIND
-
2090267-48825-00 RIVET, BLINDRIVET, BLIND
-
21F2X-U3581-01-00 MAT, UPPER (GRAY AND BLACK)MAT, UPPER (GRAY AND BLACK)
-
22F2X-U351H-00-00 MAT, STEP 1 (GRAY AND BLACK)MAT, STEP 1 (GRAY AND BLACK)
-
23F2X-U351J-00-00 MAT, STEP 2 (GRAY AND BLACK)MAT, STEP 2 (GRAY AND BLACK)
-
24F2X-U351K-00-00 MAT, STEP 3 (GRAY AND BLACK)MAT, STEP 3 (GRAY AND BLACK)
-
25F2X-U351M-00-00 MAT, STEP 4 (GRAY AND BLACK)MAT, STEP 4 (GRAY AND BLACK)
-
26F2X-U351N-00-00 MAT, STEP 5 (GRAY AND BLACK)MAT, STEP 5 (GRAY AND BLACK)
-
27F2X-U89A8-50-00 ORNAMENT, STERN LH (PURW - WHITE)ORNAMENT, STERN LH (PURW - WHITE)
-
28F2X-U89A9-50-00 ORNAMENT, STERN RH (PURW - WHITE)ORNAMENT, STERN RH (PURW - WHITE)
-
29F2X-U89AA-50-00 ORNAMENT, MIDDLE LH (PURW - WHITE)ORNAMENT, MIDDLE LH (PURW - WHITE)
-
30F2X-U89AB-50-00 ORNAMENT, MIDDLE RH (PURW - WHITE)ORNAMENT, MIDDLE RH (PURW - WHITE)
-
31F2X-U89AC-50-00 ORNAMENT, BOW LH (PURW - WHITE)ORNAMENT, BOW LH (PURW - WHITE)
-
32F2X-U89AD-50-00 ORNAMENT, BOW RH (PURW - WHITE)ORNAMENT, BOW RH (PURW - WHITE)
Все узлы модели:
- AIR SILENCER W/ INTAKE
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- • HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- SUPER CHARGER ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
