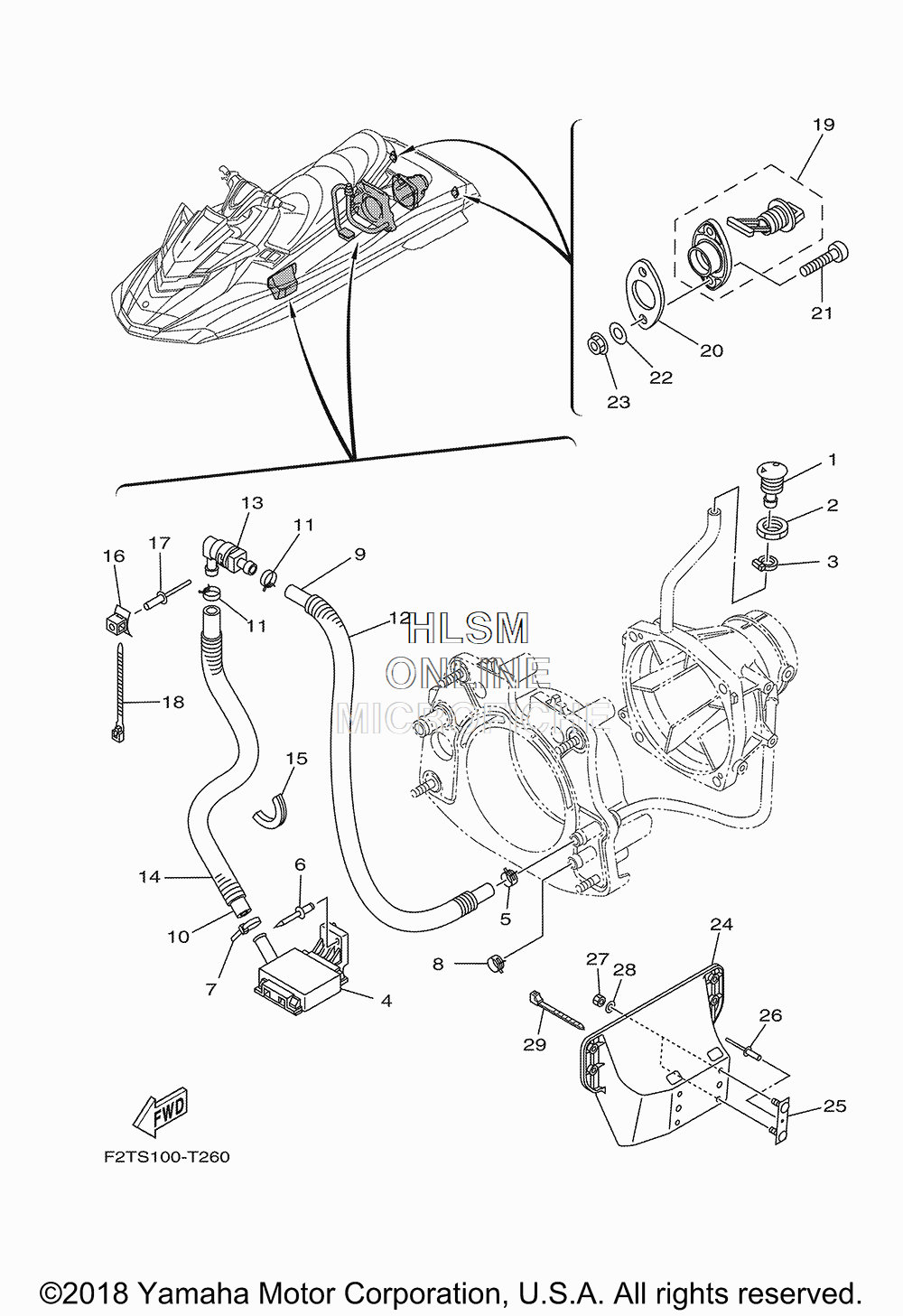

HULL FITTINGS - DRAIN PLUG W/ BILGE для Yamaha FX CRUISER SVHO - 2018 года выпуска`
-
№АртикулНазвание
-
1F1W-U269B-00-00 SPOUTSPOUT
-
2EU0-61652-00-00 NUTNUT
-
390601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
4F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
590467-21800-00 CLIPCLIP
-
690267-489U8-00 RIVET, BLINDRIVET, BLIND
-
790601-200U1-00 BANDBAND
-
890467-200A0-00 CLIPCLIP
-
990445-20804-00 HOSE (L860)HOSE (L860)
-
1090445-20800-00 HOSE (L500)HOSE (L500)
-
1190467-18804-00 CLIPCLIP
-
1290446-27M73-00 HOSE (L700)HOSE (L700)
-
1368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
1490446-27M55-00 TUBE (L400)TUBE (L400)
-
15F1S-U828H-01-00 TRIM, 1TRIM, 1
-
16F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1790267-48802-00 RIVET, BLINDRIVET, BLIND
-
1890464-32801-00 CLAMPCLAMP
-
19F1S-U2280-02-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
20F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
219788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
229299R-05200-00 WASHERWASHER
-
239572R-05300-00 NUT, FLANGENUT, FLANGE
-
24F1W-U8572-01-00 BRACKET 2BRACKET 2
-
25F1K-U826C-03-00 BRACKETBRACKET
-
2690267-489U1-00 RIVET,BLINDRIVET,BLIND
-
279572R-08300-00 NUT, FLANGENUT, FLANGE
-
289299R-08200-00 WASHERWASHER
-
2990464-32801-00 CLAMPCLAMP
