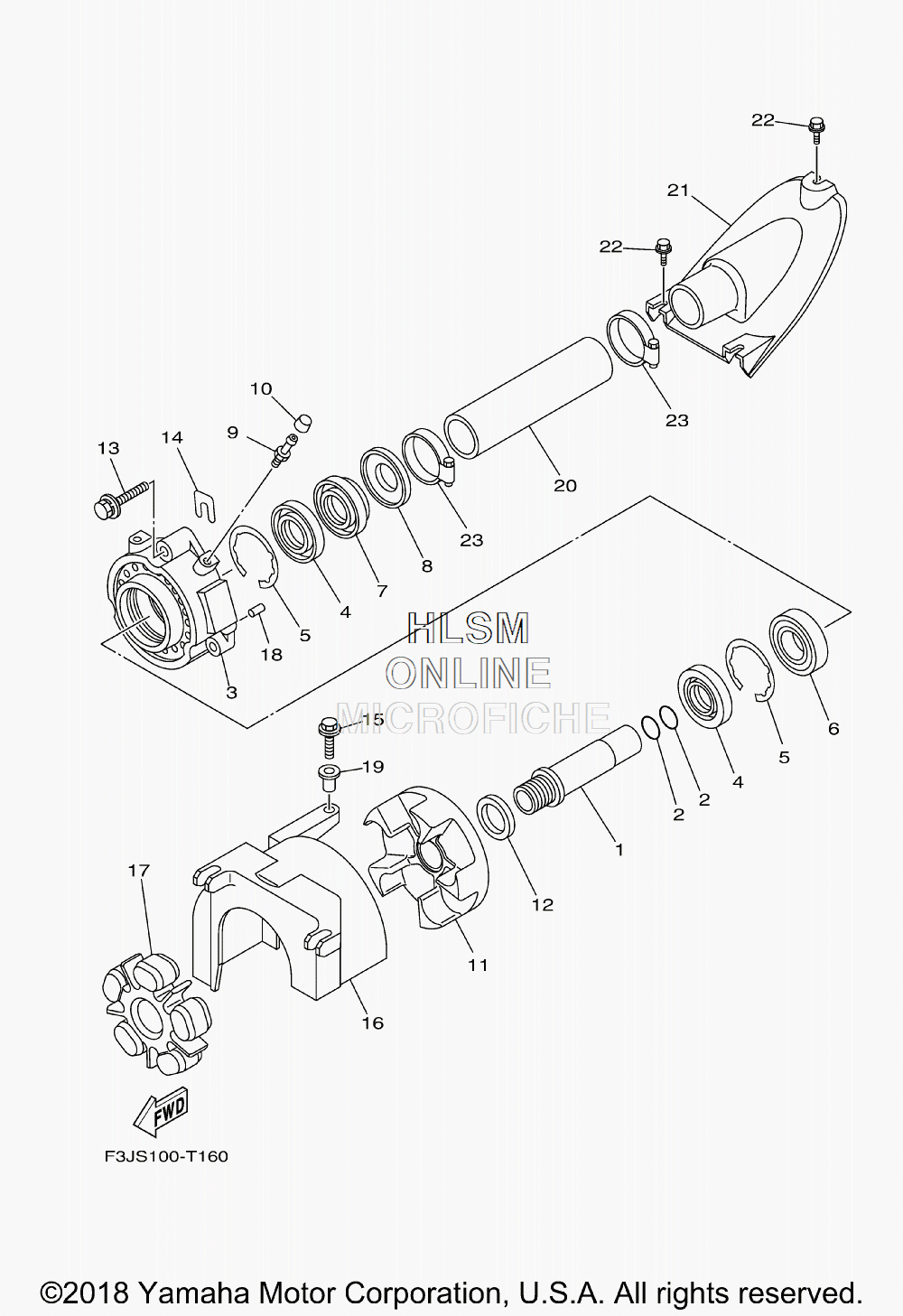

PROPULSION SYSTEM - INTERNAL для Yamaha FX CRUISER SVHO - 2018 года выпуска`
-
№АртикулНазвание
-
16S5-R1323-00-00 SHAFT, COUPLERSHAFT, COUPLER
-
293210-22MF1-00 O-RINGO-RING
-
36S5-G5332-00-00 HOUSING, BEARINGHOUSING, BEARING
-
493102-29008-00 OIL SEALOIL SEAL
-
599009-62500-00 .CIRCLIP.CIRCLIP
-
693306-20655-00 BEARINGBEARING
-
793102-29009-00 OIL SEALOIL SEAL
-
86ET-45613-00-00 WASHER, THRUSTWASHER, THRUST
-
993700-06M03-00 NIPPLE, GREASENIPPLE, GREASE
-
10663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
116S5-45593-00-94 FLANGE, COUPLING 1FLANGE, COUPLING 1
-
126ET-E2289-00-00 WASHERWASHER
-
1390119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
14GD0-U7249-00-05 SHIM (T=0.5)SHIM (T=0.5)
-
1590119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
166S5-R1381-01-00 COVERCOVER
-
176BH-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
1893606-12019-00 PIN, DOWELPIN, DOWEL
-
1990387-06289-00 COLLARCOLLAR
-
20F2S-U883B-00-00 PIPE 1PIPE 1
-
21F2S-U883E-00-00 JOINT, PIPEJOINT, PIPE
-
2290109-06832-00 BOLTBOLT
-
2390601-152U3-00 BAND, HOSE 52BAND, HOSE 52
