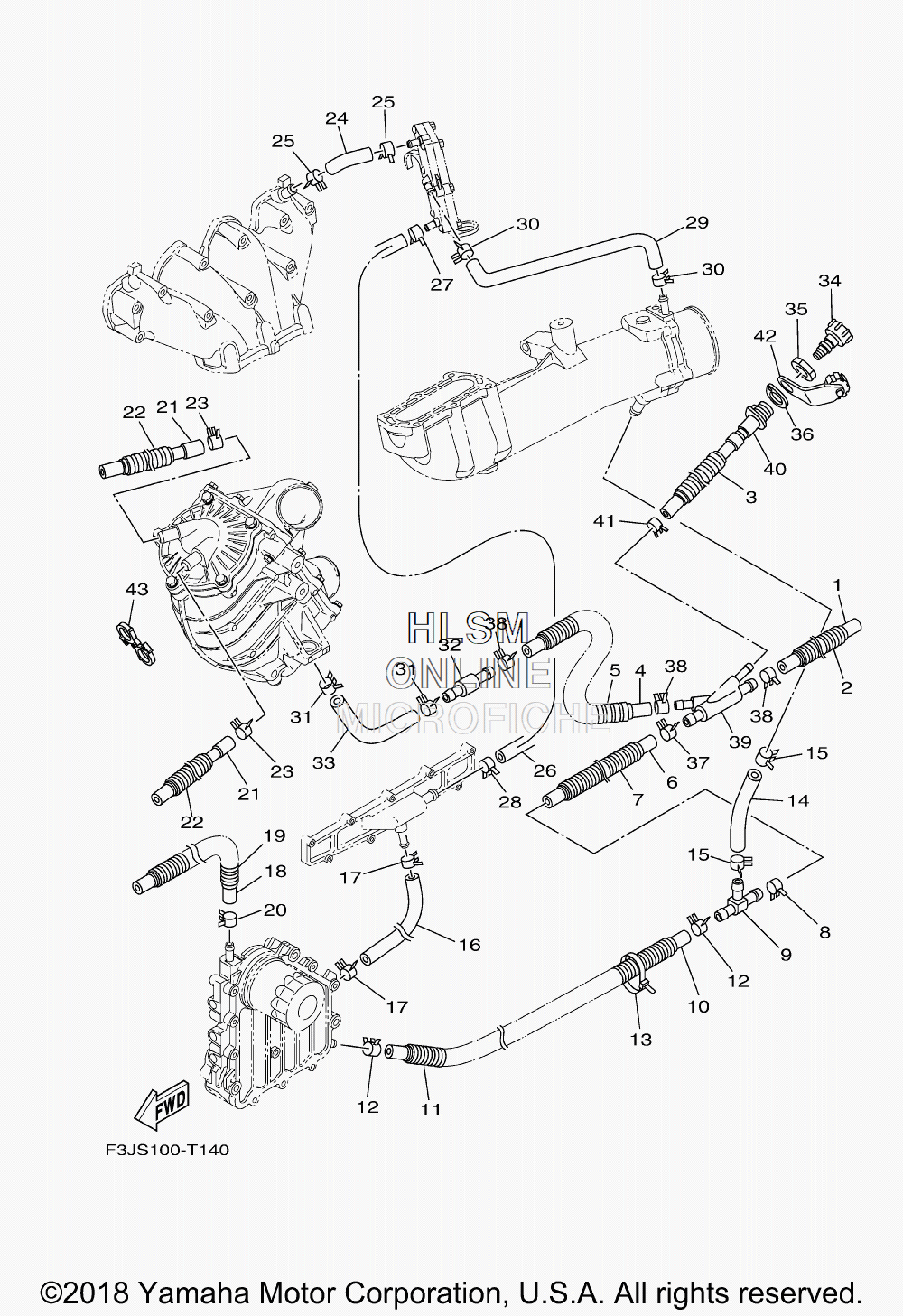

EXHAUST - HOSES для Yamaha FX CRUISER SVHO - 2018 года выпуска`
-
№АртикулНазвание
-
190445-21806-00 HOSE (L250)HOSE (L250)
-
290447-22801-00 TUBE (L200)TUBE (L200)
-
390447-19801-00 TUBE (L485)TUBE (L485)
-
490445-21807-00 HOSE (L970)HOSE (L970)
-
590447-22802-00 TUBE (L850)TUBE (L850)
-
66S5-1243E-01-00 HOSE 2HOSE 2
-
7F2T-U773D-00-00 TUBETUBE
-
890467-200A3-00 CLIPCLIP
-
96BH-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
1090445-18012-00 HOSE (L400)HOSE (L400)
-
1190447-19005-00 TUBE (L260)TUBE (L260)
-
1290467-160A0-00 CLIPCLIP
-
1390464-35132-00 CLAMPCLAMP
-
146S5-12589-01-00 HOSE 6HOSE 6
-
1590467-200A3-00 CLIPCLIP
-
166BH-1244H-00-00 HOSE 5HOSE 5
-
1790467-150A1-00 CLIPCLIP
-
186CS-12588-00-00 HOSE 5HOSE 5
-
1990447-19018-00 TUBE (L760)TUBE (L760)
-
2090467-160A0-00 CLIPCLIP
-
216CS-12552-00-00 HOSE 8HOSE 8
-
22F3J-U773D-00-00 TUBETUBE
-
2390467-170A4-00 CLIPCLIP
-
246ET-12577-00-00 HOSE 2HOSE 2
-
2590467-160A0-00 CLIPCLIP
-
266ET-12579-00-00 HOSE 4HOSE 4
-
2790467-160A0-00 CLIPCLIP
-
2890467-170A5-00 CLIPCLIP
-
296ET-12576-00-00 HOSE 1HOSE 1
-
3090467-160A0-00 CLIPCLIP
-
3190467-200A3-00 CLIPCLIP
-
326S5-12594-00-00 JOINT, HOSE 4JOINT, HOSE 4
-
336S5-12576-01-00 HOSE 1HOSE 1
-
3467X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
35EU0-61652-00-00 NUTNUT
-
36F2S-U7525-00-00 PACKINGPACKING
-
3790467-200A3-00 CLIPCLIP
-
3890467-200A3-00 CLIPCLIP
-
396ET-12581-10-00 JOINT, HOSE 1JOINT, HOSE 1
-
406CS-12580-00-00 JOINT ASSYJOINT ASSY
-
4190467-150A5-00 CLIPCLIP
-
426EY-84385-00-00 CAP,1CAP,1
-
4390464-24003-00 CLAMPCLAMP
