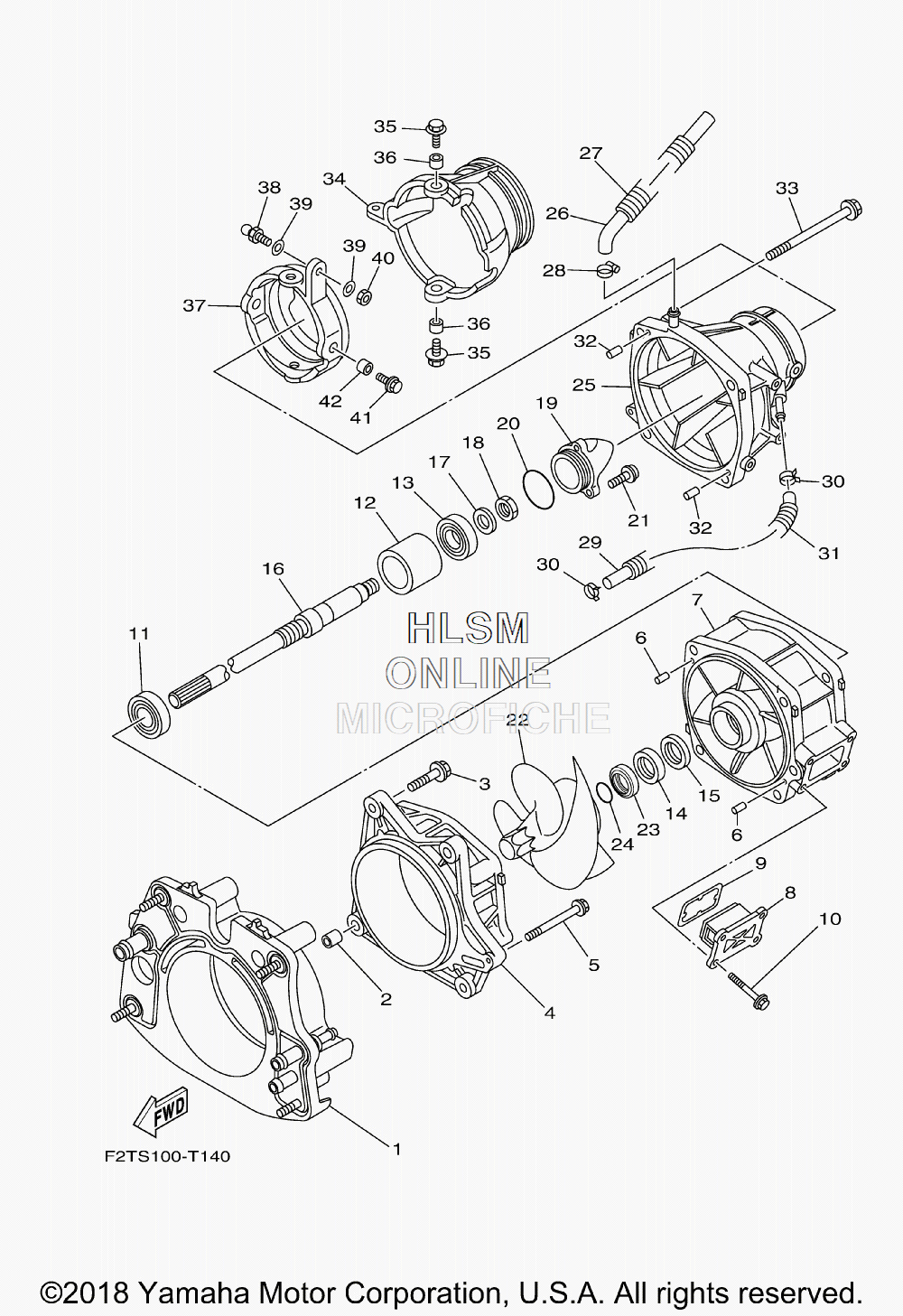

PROPULSION SYSTEM - EXTERNAL для Yamaha FX CRUISER HO - 2018 года выпуска`
-
№АртикулНазвание
-
16CS-G5831-20-00 PLATE, TRANSOMPLATE, TRANSOM
-
299590-14016-00 PIN, DOWELPIN, DOWEL
-
390119-10810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
46CR-R1312-00-00 HOUSING, IMPELLERHOUSING, IMPELLER
-
590119-06893-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
693606-12019-00 PIN, DOWELPIN, DOWEL
-
76CR-R1315-00-00 DUCT, IMPELLERDUCT, IMPELLER
-
86EX-G6882-10-00 FILTERFILTER
-
966V-42414-00-00 O-RINGO-RING
-
1090119-06889-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1193306-20654-00 BEARINGBEARING
-
126CS-G5538-00-00 SPACER 1SPACER 1
-
1393306-30537-00 BEARINGBEARING
-
1493102-31009-00 OIL SEALOIL SEAL
-
1593101-31001-00 OIL SEALOIL SEAL
-
166S5-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
1792990-20600-00 WASHERWASHER
-
1895312-20700-00 NUTNUT
-
196AN-R1326-00-00 CAPCAP
-
2093210-54010-00 O-RINGO-RING
-
2190110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
226BH-R1321-01-00 IMPELLERIMPELLER
-
236BH-R1348-00-00 SPACERSPACER
-
2493210-30611-00 O-RINGO-RING
-
256BH-R1318-01-00 NOZZLENOZZLE
-
266CS-U72M2-00-00 HOSE 1HOSE 1
-
2790447-19005-00 TUBE (L260)TUBE (L260)
-
2890601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
296ET-U215E-00-00 HOSEHOSE
-
3090467-141A0-00 CLIPCLIP
-
3190447-15001-00 HOSE, WITH SPRING (L205)HOSE, WITH SPRING (L205)
-
3293606-12019-00 PIN, DOWELPIN, DOWEL
-
3390119-10806-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
346S5-R1313-01-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
3590119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3690387-08M06-00 COLLARCOLLAR
-
376AN-R1190-00-00 RING,TRIMRING,TRIM
-
386ET-U1461-10-00 STUD, JOINT BALLSTUD, JOINT BALL
-
3990201-068M4-00 WASHER, PLATEWASHER, PLATE
-
4095380-06700-00 NUTNUT
-
4190119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4290387-08M06-00 COLLARCOLLAR
