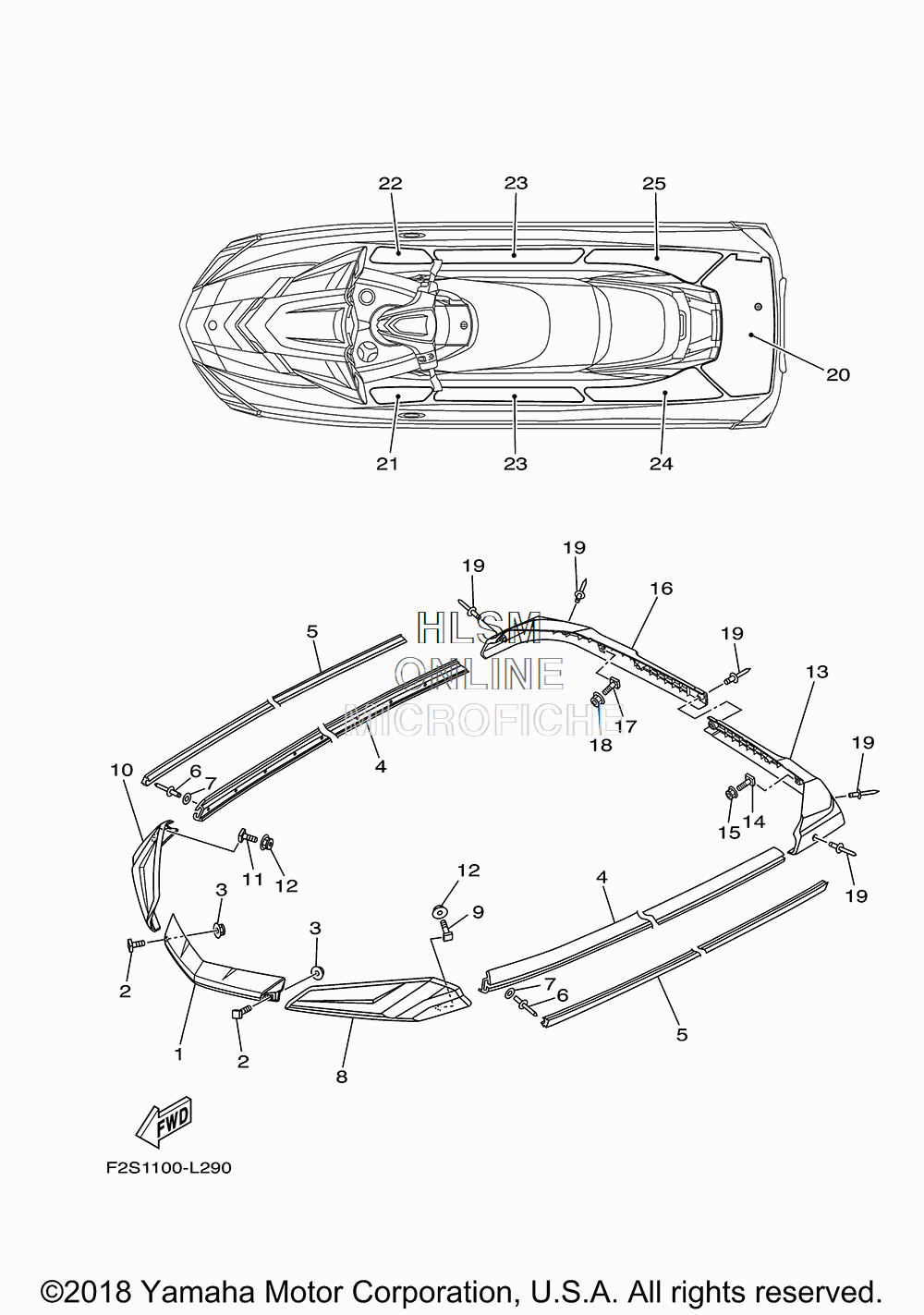

HULL - GUNWALE - MAT для Yamaha FX CRUISER HO - 2018 года выпуска`
-
№АртикулНазвание
-
1F2S-U2511-10-00 GUNWALE, BOW (BLACK FOR WHITE)GUNWALE, BOW (BLACK FOR WHITE)
-
1F2S-U2511-20-00 GUNWALE, BOW (GRAY)GUNWALE, BOW (GRAY)
-
2F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
3F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
4F2S-U2512-10-00 GUNWALE, SIDE (BLACK FOR WHITE)GUNWALE, SIDE (BLACK FOR WHITE)
-
4F2S-U2512-20-00 GUNWALE, SIDE (GRAY)GUNWALE, SIDE (GRAY)
-
5F2S-U2519-90-00 INNER,GUNWALE (WHITE FOR GRAY)INNER,GUNWALE (WHITE FOR GRAY)
-
5F2S-U2519-A0-00 INNER,GUNWALE (BLUE FOR WHITE)INNER,GUNWALE (BLUE FOR WHITE)
-
690267-489U8-00 RIVET, BLINDRIVET, BLIND
-
79299R-05200-00 WASHERWASHER
-
8F2S-U252E-11-00 JOINT, GUNWALE LH (BLACK FOR WHITE)JOINT, GUNWALE LH (BLACK FOR WHITE)
-
8F2S-U252E-20-00 JOINT, GUNWALE LH (GRAY)JOINT, GUNWALE LH (GRAY)
-
9F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
10F2S-U252F-11-00 JOINT, GUNWALE RH (BLACK FOR WHITE)JOINT, GUNWALE RH (BLACK FOR WHITE)
-
10F2S-U252F-20-00 JOINT, GUNWALE RH (GRAY)JOINT, GUNWALE RH (GRAY)
-
11F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
12F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
13F2S-U251D-10-00 GUNWALE, STERN 1 LH (BLACK FOR WHITE)GUNWALE, STERN 1 LH (BLACK FOR WHITE)
-
13F2S-U251D-20-00 GUNWALE, STERN 1 LH (GRAY)GUNWALE, STERN 1 LH (GRAY)
-
14F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
15F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
16F2S-U251E-10-00 GUNWALE, STERN 2 RH (BLACK)GUNWALE, STERN 2 RH (BLACK)
-
16F2S-U251E-20-00 GUNWALE, STERN 2 RH (GRAY)GUNWALE, STERN 2 RH (GRAY)
-
17F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
18F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1990267-48825-00 RIVET, BLINDRIVET, BLIND
-
20F2S-U3581-01-00 MAT, UPPER (DARK GRAY & BLACK)MAT, UPPER (DARK GRAY & BLACK)
-
21F2S-U351H-00-00 MAT, STEP 1 (DARK GRAY & BLACK)MAT, STEP 1 (DARK GRAY & BLACK)
-
22F2S-U351J-00-00 MAT, STEP 2 (DARK GRAY & BLACK)MAT, STEP 2 (DARK GRAY & BLACK)
-
23F2S-U351K-00-00 MAT, STEP 3 (DARK GRAY & BLACK)MAT, STEP 3 (DARK GRAY & BLACK)
-
24F2S-U351M-00-00 MAT, STEP 4 (DARK GRAY & BLACK)MAT, STEP 4 (DARK GRAY & BLACK)
-
25F2S-U351N-00-00 MAT, STEP 5 (DARK GRAY & BLACK)MAT, STEP 5 (DARK GRAY & BLACK)
