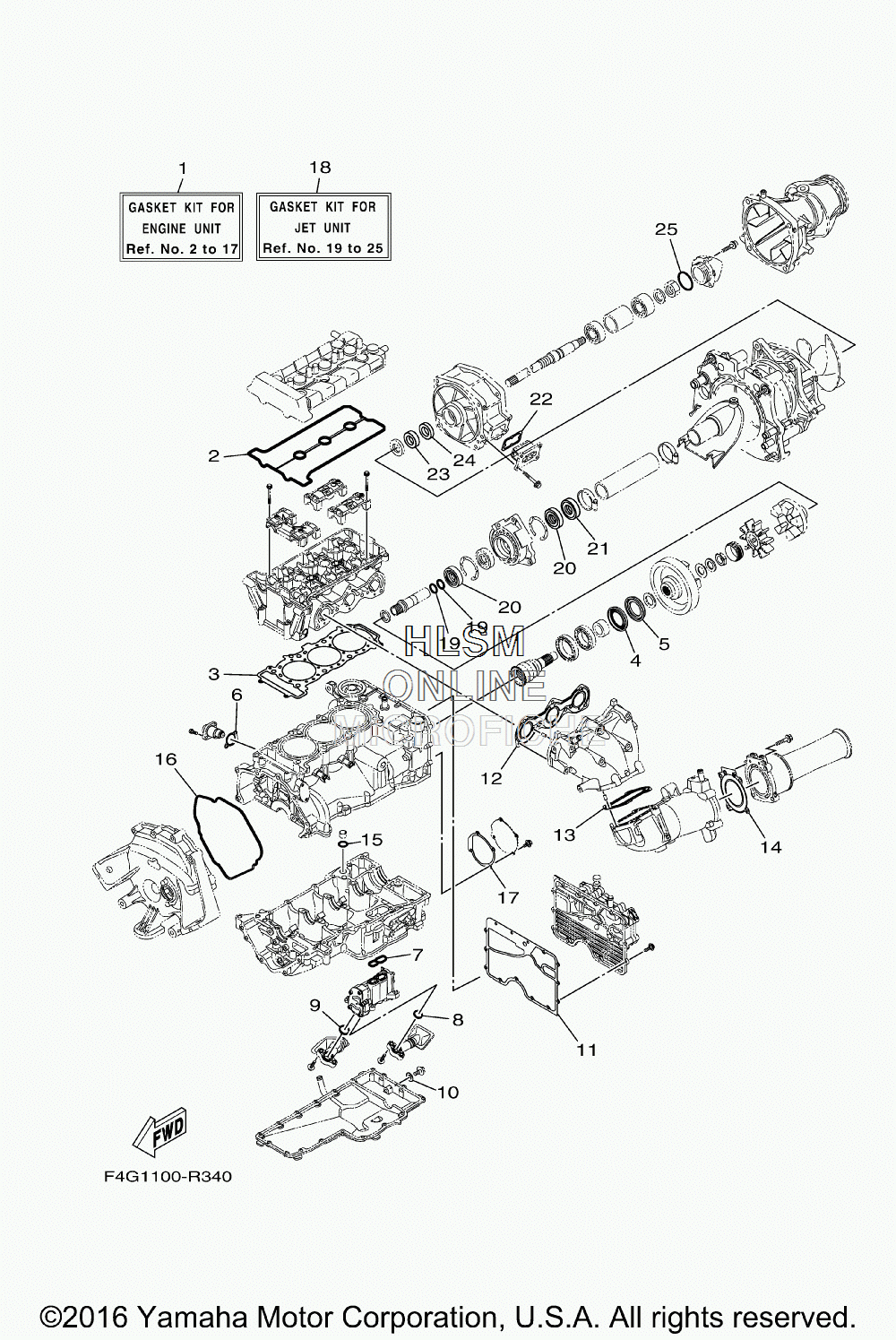

GASKET KIT - ENGINE AND JET UNIT для Yamaha WAVERUNNER VX LIMITED [VX1050FS] - 2017 года выпуска`
-
№АртикулНазвание
-
16EY-W0001-00-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
26EY-11193-00-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
36EY-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
493101-40001-00 ...OIL SEAL...OIL SEAL
-
593101-40002-00 ...OIL SEAL...OIL SEAL
-
62C0-12213-00-00 ...GASKET, TENSIONER CASE...GASKET, TENSIONER CASE
-
76EY-13563-00-00 ...GASKET...GASKET
-
86EY-13477-00-00 ...GASKET...GASKET
-
96EY-13476-00-00 ...GASKET...GASKET
-
1090430-08209-00 ...GASKET...GASKET
-
116EY-15453-00-00 ...GASKET...GASKET
-
126EY-14613-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
136EY-14739-00-00 ...GASKET, MUFFLER DAMPER 1...GASKET, MUFFLER DAMPER 1
-
146EY-14749-00-00 ...GASKET, MUFFLER DAMPER 2...GASKET, MUFFLER DAMPER 2
-
1593210-17010-00 ...O-RING...O-RING
-
166EY-15461-00-00 ...GASKET, CRANKCASE COVER 2...GASKET, CRANKCASE COVER 2
-
176EY-15463-00-00 ...GASKET, 2...GASKET, 2
-
186EY-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
1993210-19001-00 ...O-RING...O-RING
-
2093101-25M55-00 ...OIL SEAL...OIL SEAL
-
2193102-25009-00 ...OIL SEAL...OIL SEAL
-
2266V-42414-00-00 ...O-RING...O-RING
-
2393101-28M66-00 ...OIL SEAL...OIL SEAL
-
2493101-28002-00 ...OIL SEAL...OIL SEAL
-
2593210-44003-00 ...O-RING...O-RING
