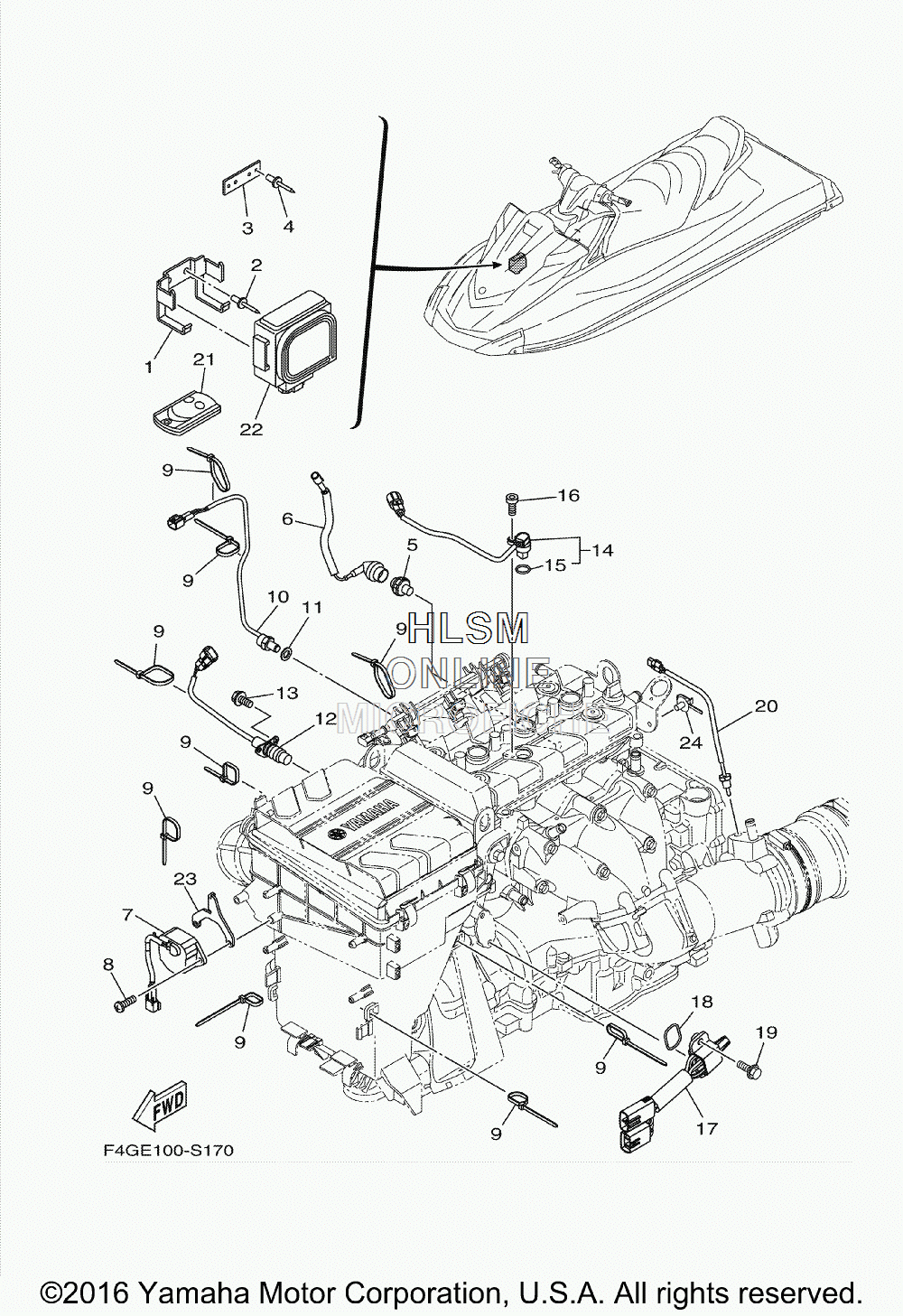

ELECTRICAL 2 для Yamaha WAVERUNNER VX LIMITED [VX1050FS] - 2017 года выпуска`
-
№АртикулНазвание
-
1F1W-U826C-00-00 BRACKETBRACKET
-
290267-489U1-00 RIVET,BLINDRIVET,BLIND
-
3F1W-U8376-00-00 PLATEPLATE
-
490267-489U1-00 RIVET,BLINDRIVET,BLIND
-
568V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
660E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
760E-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
897780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
990465-13M18-00 CLAMPCLAMP
-
1061A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1192990-10600-00 WASHER, PLATEWASHER, PLATE
-
126CR-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1397595-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
142S3-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
154D9-81168-00-00 ...O-RING...O-RING
-
1691380-06016-00 BOLTBOLT
-
176CS-8273J-10-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
1893210-32172-00 O-RINGO-RING
-
1990119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
206DE-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
216B6-86261-00-00 XMTR. COMP.XMTR. COMP.
-
226B6-86265-00-00 RECEIVER COMPLETERECEIVER COMPLETE
-
236EY-83618-00-00 PLATEPLATE
-
2490464-20005-00 CLAMPCLAMP
