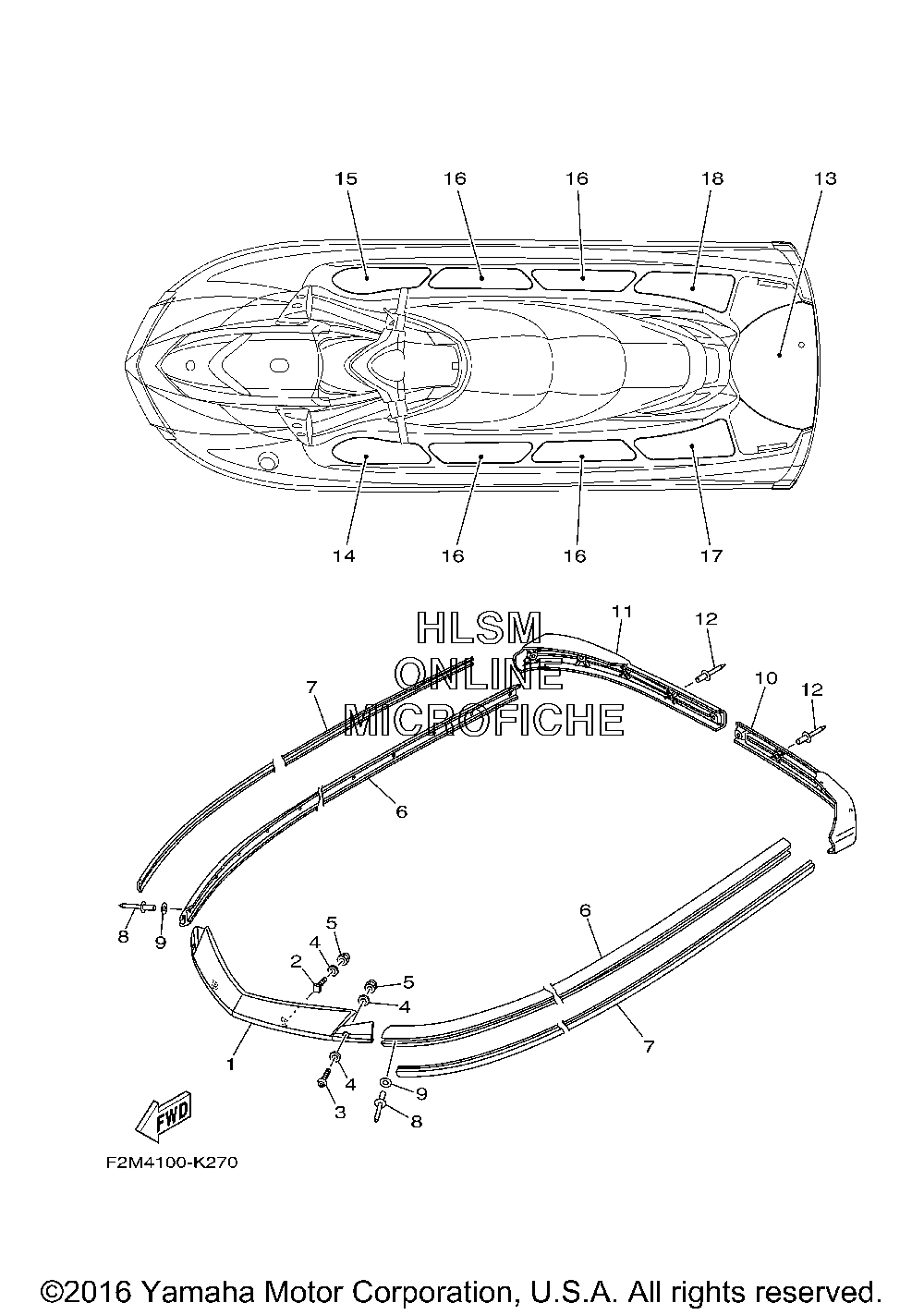

HULL - GUNWALE - MAT для Yamaha VXS [VX1800L] - 2016 года выпуска`
-
№АртикулНазвание
-
1F2N-U2511-02-00 GUNWALE, BOWGUNWALE, BOW
-
2F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390111-06803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
49299R-06200-00 WASHERWASHER
-
59572R-06300-00 NUT, NYLONNUT, NYLON
-
6F1K-U2512-03-00 GUNWALE, SIDE (GRAY)GUNWALE, SIDE (GRAY)
-
7F1K-U2519-20-00 INNER,GUNWALE (YAMAHA BLACK)INNER,GUNWALE (YAMAHA BLACK)
-
890267-489U8-00 RIVET, BLINDRIVET, BLIND
-
99299R-05200-00 WASHERWASHER
-
10F1K-U251D-01-00 GUNWALE, STERN 1 (GRAY)GUNWALE, STERN 1 (GRAY)
-
11F1K-U251E-01-00 GUNWALE, STERN 2 (GRAY)GUNWALE, STERN 2 (GRAY)
-
1290267-48963-00 RIVET, BLINDRIVET, BLIND
-
13F2N-U3581-00-00 MAT, UPPER (DARK GREY)MAT, UPPER (DARK GREY)
-
14F2N-U351H-00-00 MAT, STEP 1 (DARK GREY)MAT, STEP 1 (DARK GREY)
-
15F2N-U351J-00-00 MAT, STEP 2 (DARK GREY)MAT, STEP 2 (DARK GREY)
-
16F2N-U351K-00-00 MAT, STEP 3 (DARK GREY)MAT, STEP 3 (DARK GREY)
-
17F2N-U351M-00-00 MAT, STEP 4 (DARK GREY)MAT, STEP 4 (DARK GREY)
-
18F2N-U351N-00-00 MAT, STEP 5 (DARK GREY)MAT, STEP 5 (DARK GREY)
Все узлы модели:
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER 2
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- • HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PAN UP TO E/N 6CN-1005800
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- SUPER CHARGER ASSY
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
