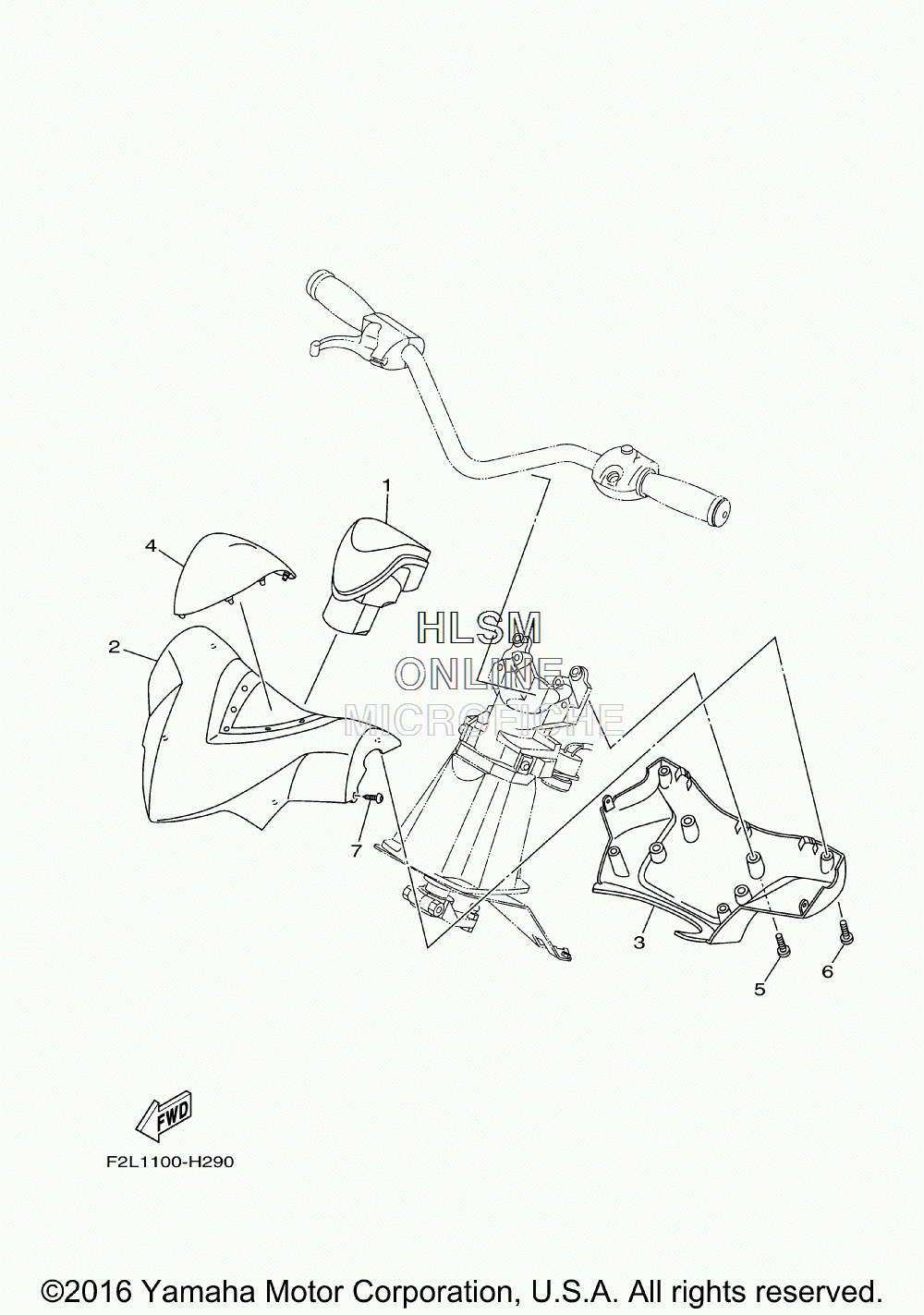

HANDLEBAR PAD для Yamaha VXS [VX1800L] - 2016 года выпуска
-
№АртикулНазвание
-
1F1K-U156E-01-00 PAD 1PAD 1
-
2F1K-U143D-01-00 PAD, STEERING 1PAD, STEERING 1
-
3F1K-U143E-01-00 PAD, STEERING 2PAD, STEERING 2
-
4F1K-U142D-00-00 COVER, PADCOVER, PAD
-
590154-06017-00 SCREW, BINDINGSCREW, BINDING
-
690149-05903-00 SCREWSCREW
-
790167-04003-00 SCREW, TAPPINGSCREW, TAPPING
