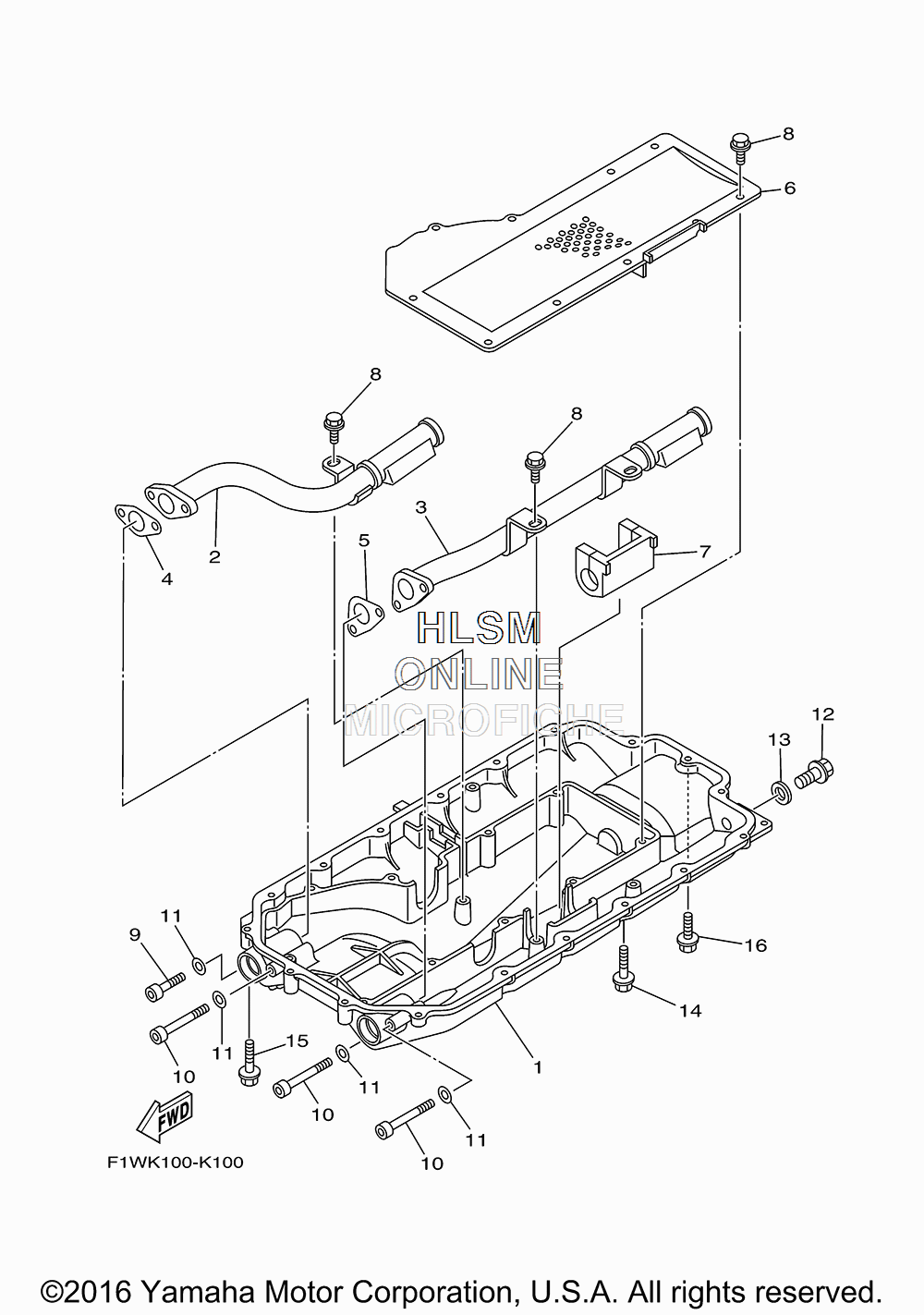

OIL PAN UP TO E/N 6CN-1005800 для Yamaha VXR [VX1800AL] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    6S5-1310A-10-94 PAN, OIL (E/N 6CN-1005701 - 6CN-1005800)
    PAN, OIL (E/N 6CN-1005701 - 6CN-1005800)
  • 2
    6S5-13405-00-00 OIL PIPE COMP. 2 (E/N 6CN-1005701 - 6CN-1005800)
    OIL PIPE COMP. 2 (E/N 6CN-1005701 - 6CN-1005800)
  • 3
    6S5-13406-00-00 OIL PIPE COMP. 2 (E/N 6CN-1005701 - 6CN-1005800)
    OIL PIPE COMP. 2 (E/N 6CN-1005701 - 6CN-1005800)
  • 4
    6S5-13476-00-00 GASKET (E/N 6CN-1005701 - 6CN-1005800)
    GASKET (E/N 6CN-1005701 - 6CN-1005800)
  • 5
    6S5-13477-00-00 GASKET (E/N 6CN-1005701 - 6CN-1005800)
    GASKET (E/N 6CN-1005701 - 6CN-1005800)
  • 6
    6S5-13317-00-00 PLATE, BAFFLE (E/N 6CN-1005701 - 6CN-1005800)
    PLATE, BAFFLE (E/N 6CN-1005701 - 6CN-1005800)
  • 7
    6S5-15486-00-00 GROMMET (E/N 6CN-1005701 - 6CN-1005800)
    GROMMET (E/N 6CN-1005701 - 6CN-1005800)
  • 8
    95817-06014-00 BOLT, FLANGE
    BOLT, FLANGE
  • 9
    91314-06035-00 BOLT, HEXAGON SOCKET HEAD
    BOLT, HEXAGON SOCKET HEAD
  • 10
    91314-06060-00 BOLT, HEXAGON SOCKET HEAD
    BOLT, HEXAGON SOCKET HEAD
  • 11
    90201-06028-00 WASHER, PLATE
    WASHER, PLATE
  • 12
    95814-08016-00 BOLT, FLANGE
    BOLT, FLANGE
  • 13
    90430-08209-00 GASKET
    GASKET
  • 14
    95024-06035-00 BOLT, FLG.(SMALL HEAD)
    BOLT, FLG.(SMALL HEAD)
  • 15
    95024-06030-00 BOLT, FLANGE (SMALL HEAD)
    BOLT, FLANGE (SMALL HEAD)
  • 16
    95024-06020-00 BOLT, FLG.(SMALL HEAD)
    BOLT, FLG.(SMALL HEAD)
