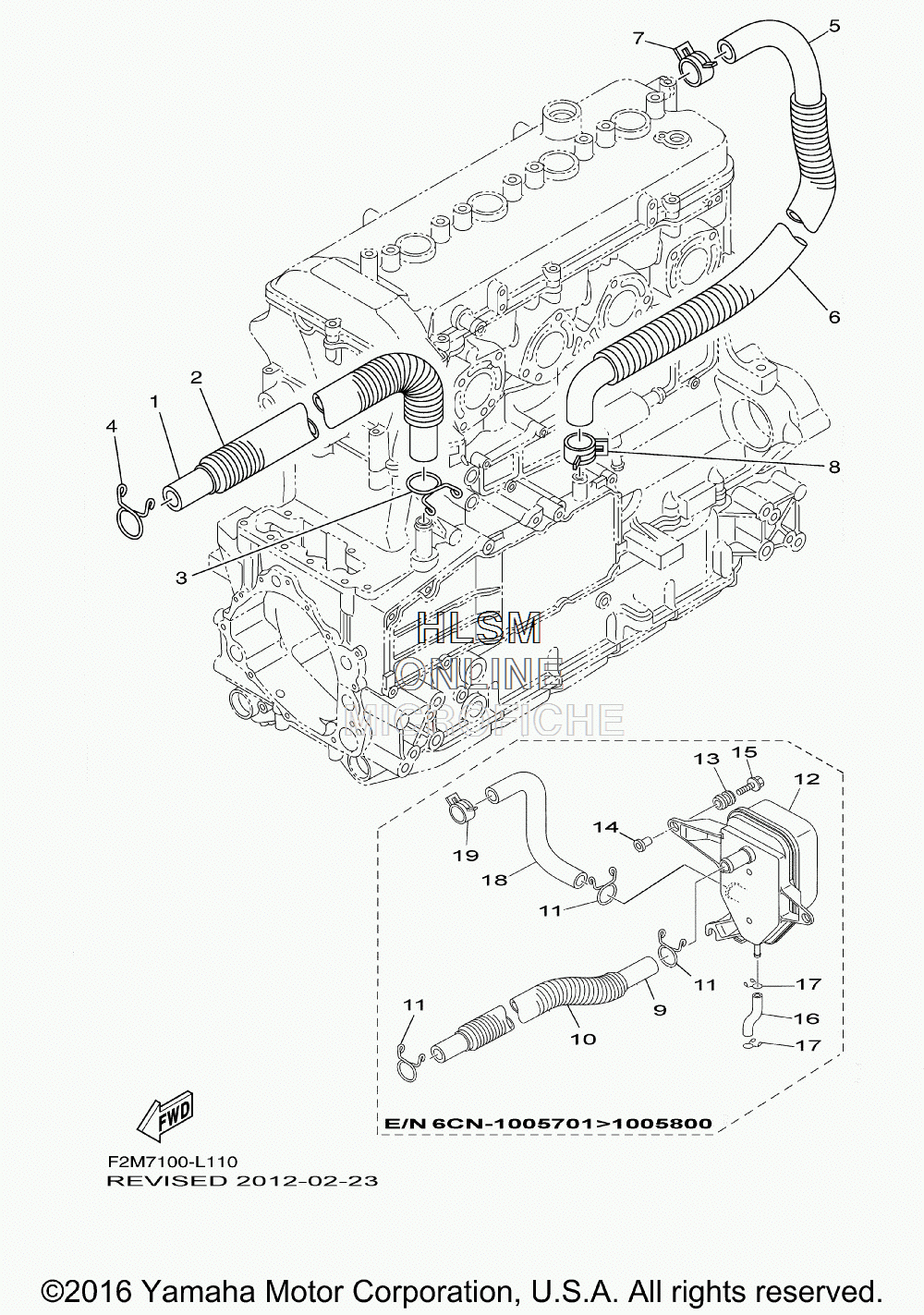

OIL BREATHER ASSY. для Yamaha VXR [VX1800AL] - 2016 года выпуска
-
№АртикулНазвание
-
16S5-11166-10-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
290447-22015-00 TUBE (L410)TUBE (L410)
-
390467-190A0-00 CLIPCLIP
-
490467-190A0-00 CLIPCLIP
-
56S5-11167-10-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
690447-22016-00 TUBE (L490)TUBE (L490)
-
790467-240A0-00 CLIPCLIP
-
890467-200A3-00 CLIPCLIP
-
96S5-111666-00-00 PIPE, BREATHER 1 (E/N 6CN-1005701 - 6CN-1005800)PIPE, BREATHER 1 (E/N 6CN-1005701 - 6CN-1005800)
-
1090446-30MF1-00 HOSE (L600) (E/N 6CN-1005701 - 6CN-1005800)HOSE (L600) (E/N 6CN-1005701 - 6CN-1005800)
-
1190467-200A2-00 CLIP (E/N 6CN-1005701 - 6CN-1005800)CLIP (E/N 6CN-1005701 - 6CN-1005800)
-
126BH-11160-00-00 BREATHER ASSY (E/N 6CN-1005701 - 6CN-1005800)BREATHER ASSY (E/N 6CN-1005701 - 6CN-1005800)
-
1361N-82317-00-00 DAMPER, IGNITION COIL (E/N 6CN-1005701 - 6CN-1005800)DAMPER, IGNITION COIL (E/N 6CN-1005701 - 6CN-1005800)
-
1490387-06119-00 COLLAR (E/N 6CN-1005701 - 6CN-1005800)COLLAR (E/N 6CN-1005701 - 6CN-1005800)
-
1595824-06030-00 BOLT, FLANGE (E/N 6CN-1005701 - 6CN-1005800)BOLT, FLANGE (E/N 6CN-1005701 - 6CN-1005800)
-
166S5-11125-00-00 PIPE, BREATHER 4 (E/N 6CN-1005701 - 6CN-1005800)PIPE, BREATHER 4 (E/N 6CN-1005701 - 6CN-1005800)
-
1790467-11019-00 CLIP (E/N 6CN-1005701 - 6CN-1005800)CLIP (E/N 6CN-1005701 - 6CN-1005800)
-
186S5-11167-00-00 PIPE, BREATHER 2 (E/N 6CN-1005701 - 6CN-1005800)PIPE, BREATHER 2 (E/N 6CN-1005701 - 6CN-1005800)
-
1990467-240A0-00 CLIP (E/N 6CN-1005701 - 6CN-1005800)CLIP (E/N 6CN-1005701 - 6CN-1005800)
