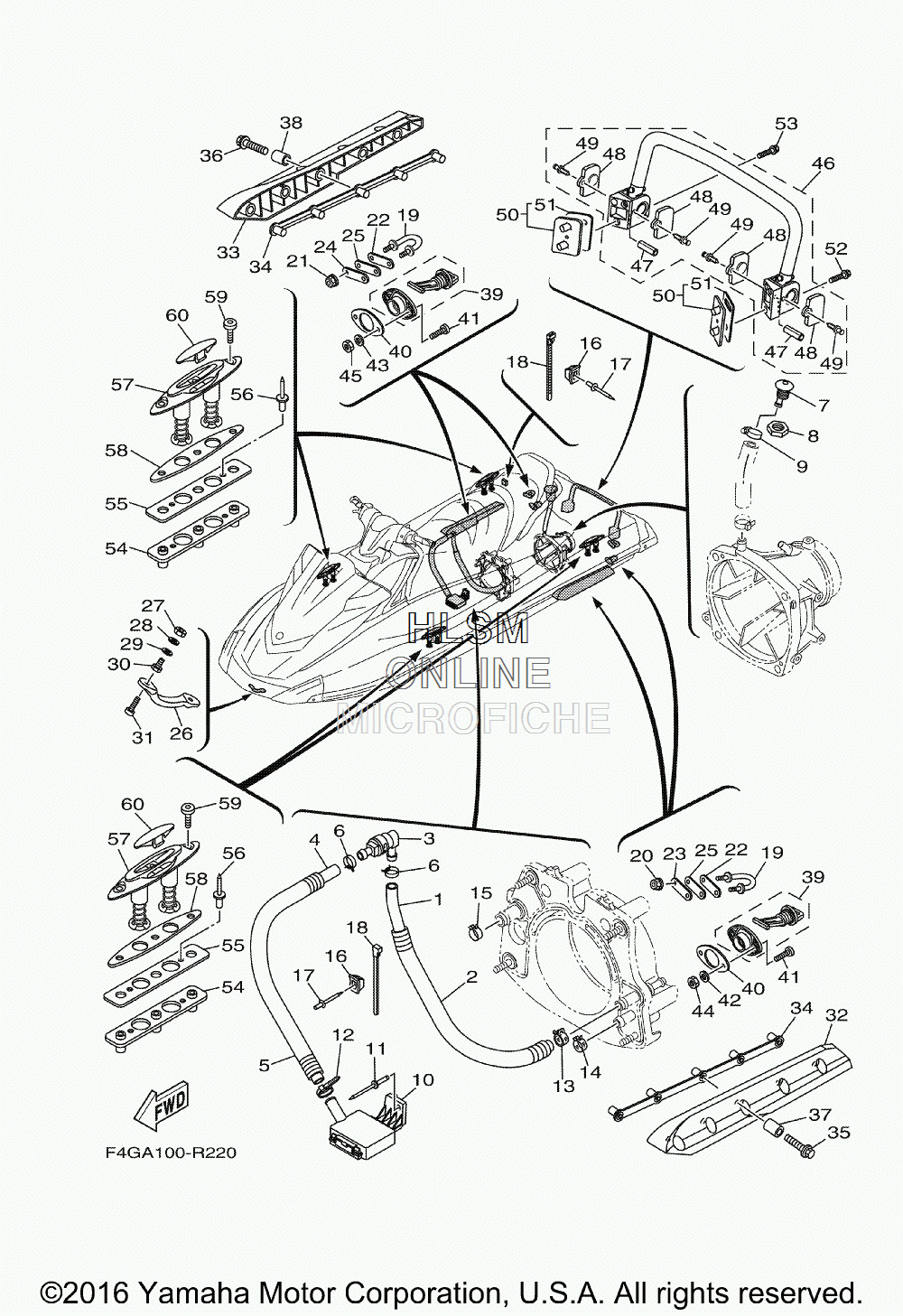

HULL FITTINGS W/ SPONSONS для Yamaha VX LIMITED [VX1050FR] - 2016 года выпуска
-
№АртикулНазвание
-
16EY-U771G-00-00 HOSE 2HOSE 2
-
26EY-U773E-00-00 TUBE,2TUBE,2
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-20804-00 HOSE (L860)HOSE (L860)
-
56EX-U773E-00-00 TUBE,2TUBE,2
-
690467-18804-00 CLIPCLIP
-
7F1W-U269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
10F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1290465-10098-00 CLAMPCLAMP
-
1390467-21800-00 CLIPCLIP
-
1490467-200A0-00 CLIPCLIP
-
1590467-26800-00 CLIPCLIP
-
16F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1790267-48802-00 RIVET, BLINDRIVET, BLIND
-
1890464-32801-00 CLAMPCLAMP
-
19F2N-U1628-02-00 STERN EYESTERN EYE
-
209572R-08300-00 NUT, FLANGENUT, FLANGE
-
219572R-08300-00 NUT, FLANGENUT, FLANGE
-
22GP7-U4953-10-00 PLATE APLATE A
-
23GP7-U4953-10-00 PLATE APLATE A
-
24GP7-U4953-10-00 PLATE APLATE A
-
25F1B-U1653-02-00 PACKINGPACKING
-
26F1K-61624-00-00 BOW EYE 1BOW EYE 1
-
2799780-12600-00 NUT.HEX.(COARS)NUT.HEX.(COARS)
-
2892990-12200-00 WASHER, PLAINWASHER, PLAIN
-
29F0X-61637-00-00 WASHERWASHER
-
30F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
3190110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
32F1S-U883N-01-00 STABILIZER LH (BLACK)STABILIZER LH (BLACK)
-
33F1S-U883P-01-00 STABILIZER RH (BLACK)STABILIZER RH (BLACK)
-
34F1X-U883T-01-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
3590105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
3690105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
37F2N-U8169-00-00 SPACERSPACER
-
38F2N-U8169-00-00 SPACERSPACER
-
39F1S-U2280-02-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
40F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
419788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
429299R-05200-00 WASHERWASHER
-
439299R-05200-00 WASHERWASHER
-
449572R-05300-00 NUT, FLANGENUT, FLANGE
-
459572R-05300-00 NUT, FLANGENUT, FLANGE
-
46F2X-U278A-00-00 LADDER, STEP ASSYLADDER, STEP ASSY
-
47F1W-U771H-00-00 ...SLEEVE 1...SLEEVE 1
-
48F2C-U377H-00-00 ...INNER, COVER SIDE 1...INNER, COVER SIDE 1
-
49F2C-U1314-00-00 ...PIN...PIN
-
50F2S-U278F-00-00 BRACKET, LADDER LHBRACKET, LADDER LH
-
51F2S-U278H-00-00 ...PACKING, BRKT. 1...PACKING, BRKT. 1
-
5290119-08861-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5390119-08861-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
54F1X-U826C-10-00 BRACKETBRACKET
-
55F1X-U2157-00-00 PACKINGPACKING
-
5690267-489U6-00 RIVET, BLINDRIVET, BLIND
-
57F1X-U163A-02-00 CLEAT ASSY.CLEAT ASSY.
-
58F4G-U2284-00-00 PACKINGPACKING
-
59F1W-U2624-00-00 BOLTBOLT
-
60F1X-U826D-00-00 COVERCOVER
