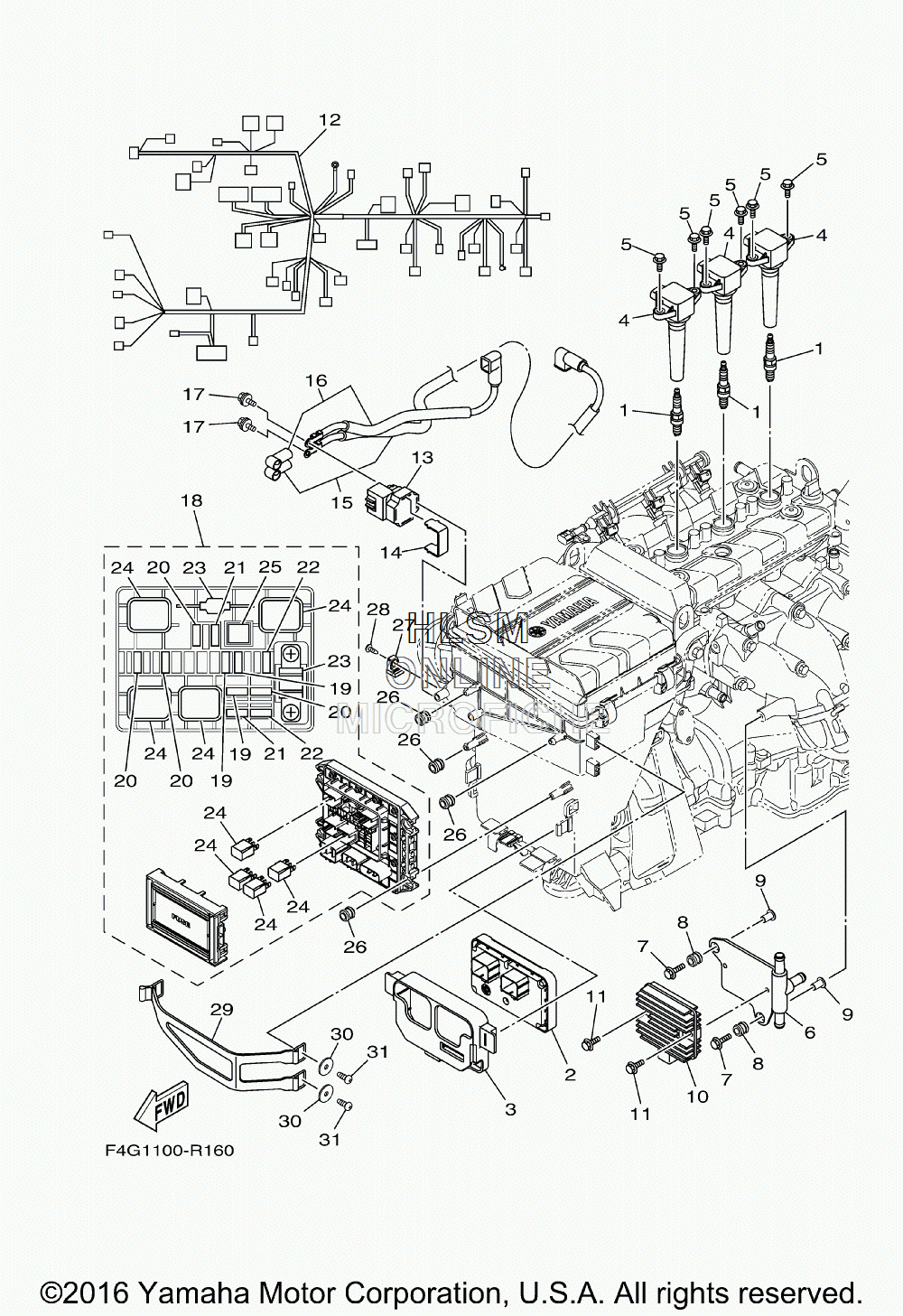

ELECTRICAL 1 для Yamaha VX LIMITED [VX1050FR] - 2016 года выпуска`
-
№АртикулНазвание
-
1CR9-EB000-00-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
26EY-8591A-A0-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
36EY-8591S-00-00 GROMMET, ECUGROMMET, ECU
-
46EX-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
595880-06016-00 BOLT, FLANGEBOLT, FLANGE
-
66EY-81975-00-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
790119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
86A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
990387-06119-00 COLLARCOLLAR
-
106D3-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1195814-06020-00 BOLT, FLANGEBOLT, FLANGE
-
126EY-8259L-A0-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
136EY-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
146EY-81953-00-00 STAY, RELAYSTAY, RELAY
-
156EY-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
166EY-82117-00-00 WIRE, LEADWIRE, LEAD
-
1797595-06612-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
186EX-82170-00-00 FUSE BOX ASSYFUSE BOX ASSY
-
1967F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
2067F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
2167F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
2267F-82151-10-00 ...FUSE (30A)...FUSE (30A)
-
236EX-82151-00-00 ...FUSE (50A)...FUSE (50A)
-
246EX-8195A-00-00 ...RELAY ASSY...RELAY ASSY
-
256EX-2812A-00-00 ...PULLER, FUSE...PULLER, FUSE
-
266A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
276AA-85542-00-00 BRACKETBRACKET
-
2890160-05003-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
296EY-82593-00-00 BANDBAND
-
3090201-06570-00 WASHER, PLATEWASHER, PLATE
-
3197780-60516-00 SCREW, TAPPINGSCREW, TAPPING
