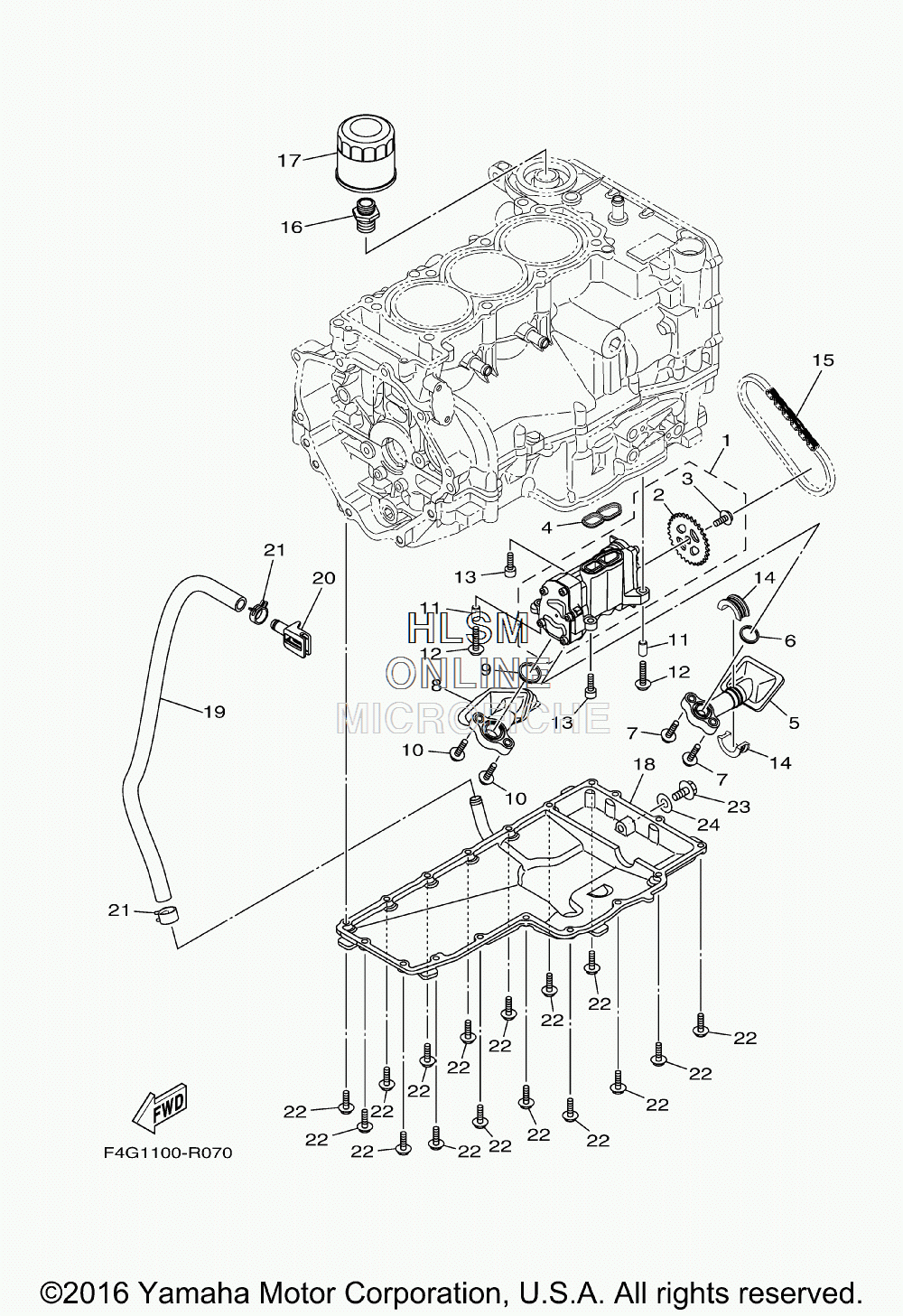

OIL PUMP для Yamaha VX CRUISER [VX1050AR] - 2016 года выпуска`
-
№АртикулНазвание
-
16EY-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
26EY-13355-00-00 ...SPROCKET, DRIVEN...SPROCKET, DRIVEN
-
390149-06190-00 ...SCREW...SCREW
-
46EY-13563-00-00 GASKETGASKET
-
56EY-13405-00-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
66EY-13477-00-00 GASKETGASKET
-
790110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
86EY-13406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
96EY-13476-00-00 GASKETGASKET
-
1090110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1199530-08016-00 PIN, DOWELPIN, DOWEL
-
1290110-06287-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390110-06335-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
146EY-15486-00-00 GROMMETGROMMET
-
1594580-25060-00 CHAIN (DID25 60LE)CHAIN (DID25 60LE)
-
1690401-20008-00 BOLT, UNIONBOLT, UNION
-
175GH-13440-50-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
186EY-13417-00-00 COVER, STRAINERCOVER, STRAINER
-
1990445-18M06-00 HOSE (L500)HOSE (L500)
-
206EY-13455-00-00 PLUGPLUG
-
2190467-170A5-00 CLIPCLIP
-
2295024-06020-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
2395814-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2490430-08209-00 GASKETGASKET
