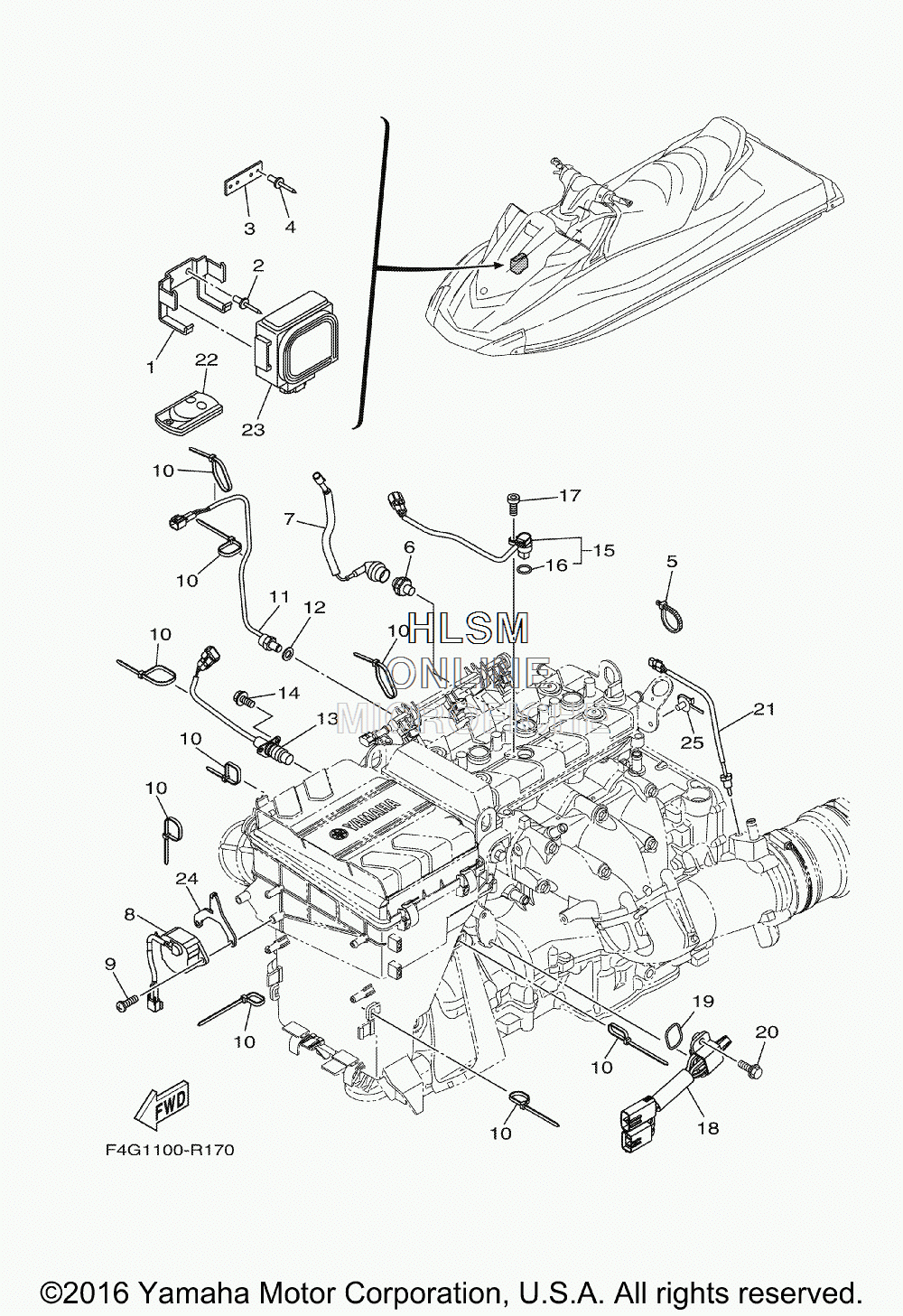

ELECTRICAL 2 для Yamaha VX CRUISER [VX1050AR] - 2016 года выпуска`
-
№АртикулНазвание
-
1F1W-U826C-00-00 BRACKETBRACKET
-
290267-489U1-00 RIVET,BLINDRIVET,BLIND
-
3F1W-U8376-00-00 PLATEPLATE
-
490267-489U1-00 RIVET,BLINDRIVET,BLIND
-
590464-40825-00 CLAMPCLAMP
-
668V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
760E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
860E-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
997780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
1090465-13M18-00 CLAMPCLAMP
-
1161A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1292990-10600-00 WASHER, PLATEWASHER, PLATE
-
136CR-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1497595-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
152S3-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
164D9-81168-00-00 ...O-RING...O-RING
-
1791380-06016-00 BOLTBOLT
-
186CS-8273J-10-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
1993210-32172-00 O-RINGO-RING
-
2090119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
216DE-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
226B6-86261-00-00 XMTR. COMP.XMTR. COMP.
-
236B6-86265-00-00 RECEIVER COMPLETERECEIVER COMPLETE
-
246EY-83618-00-00 PLATEPLATE
-
2590464-20005-00 CLAMPCLAMP
