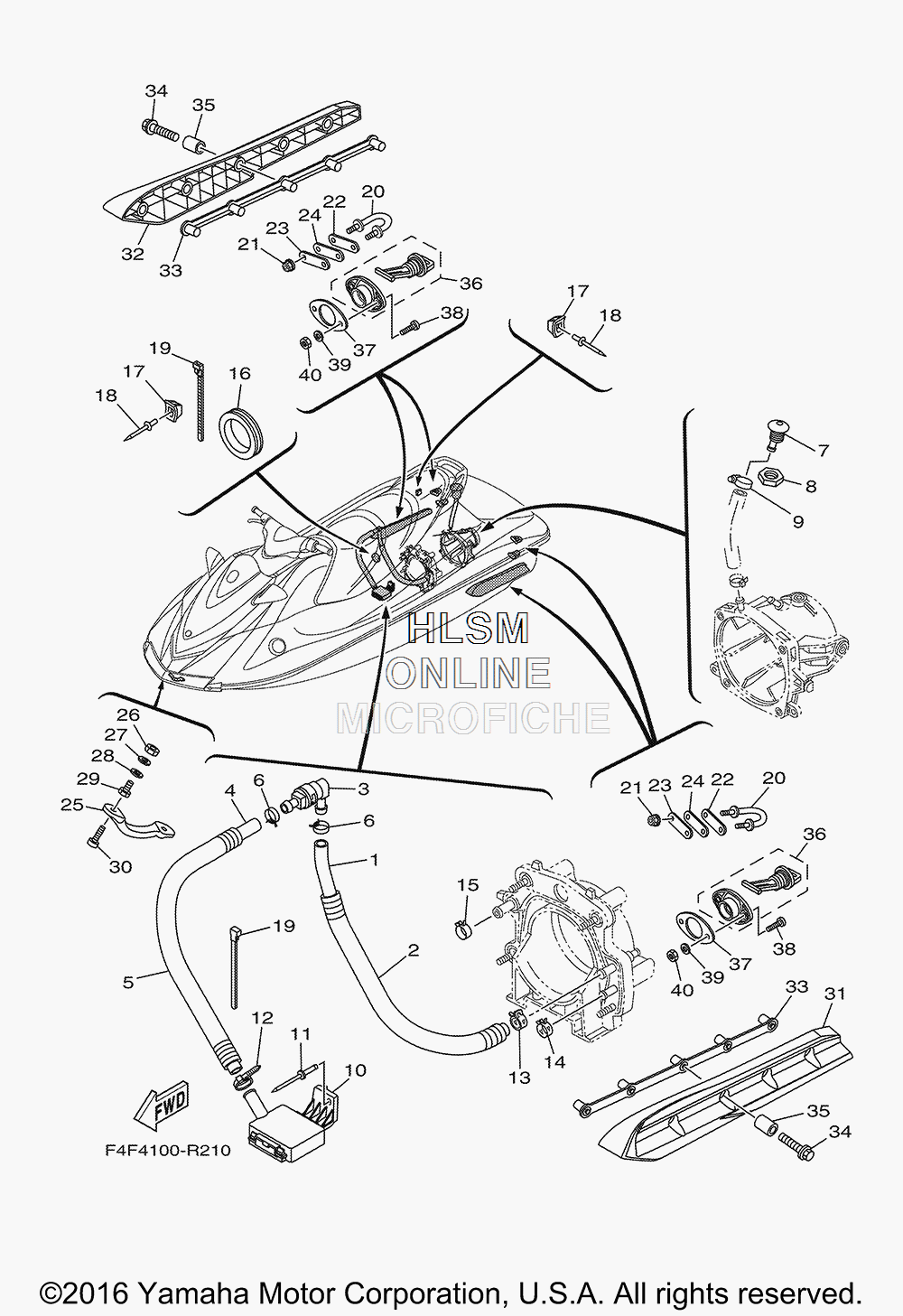

HULL FITTINGS W/ SPONSONS для Yamaha V1 [VX1050ER] - 2016 года выпуска`
-
№АртикулНазвание
-
16EY-U771G-00-00 HOSE 2HOSE 2
-
26EY-U773E-00-00 TUBE,2TUBE,2
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-20804-00 HOSE (L860)HOSE (L860)
-
56EX-U773E-00-00 TUBE,2TUBE,2
-
690467-18804-00 CLIPCLIP
-
7F1W-U269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
10F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1290465-10098-00 CLAMPCLAMP
-
1390467-21800-00 CLIPCLIP
-
1490467-200A0-00 CLIPCLIP
-
1590467-26800-00 CLIPCLIP
-
16F4F-U1338-00-00 GROMMETGROMMET
-
17F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1890267-48802-00 RIVET, BLINDRIVET, BLIND
-
1990464-32801-00 CLAMPCLAMP
-
20F2N-U1628-02-00 STERN EYESTERN EYE
-
219572R-08300-00 NUT, FLANGENUT, FLANGE
-
22GP7-U4953-10-00 PLATE APLATE A
-
23F2C-U4953-10-00 PLATE APLATE A
-
24F1B-U1653-02-00 PACKINGPACKING
-
25F1K-61624-00-00 BOWEYE 1BOWEYE 1
-
2699780-12600-00 NUT.HEX.(COARS)NUT.HEX.(COARS)
-
2792990-12200-00 WASHER, PLAINWASHER, PLAIN
-
28F0X-61637-00-00 WASHERWASHER
-
29F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
3090110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
31F2N-U883N-00-00 STABILIZER LHSTABILIZER LH
-
32F2N-U883P-00-00 STABILIZER RHSTABILIZER RH
-
33F1X-U883T-01-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
3490105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
35F2N-U8169-00-00 SPACERSPACER
-
36F1S-U2280-02-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
37F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
389788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
399299R-05200-00 WASHERWASHER
-
409572R-05300-00 NUT, FLANGENUT, FLANGE
