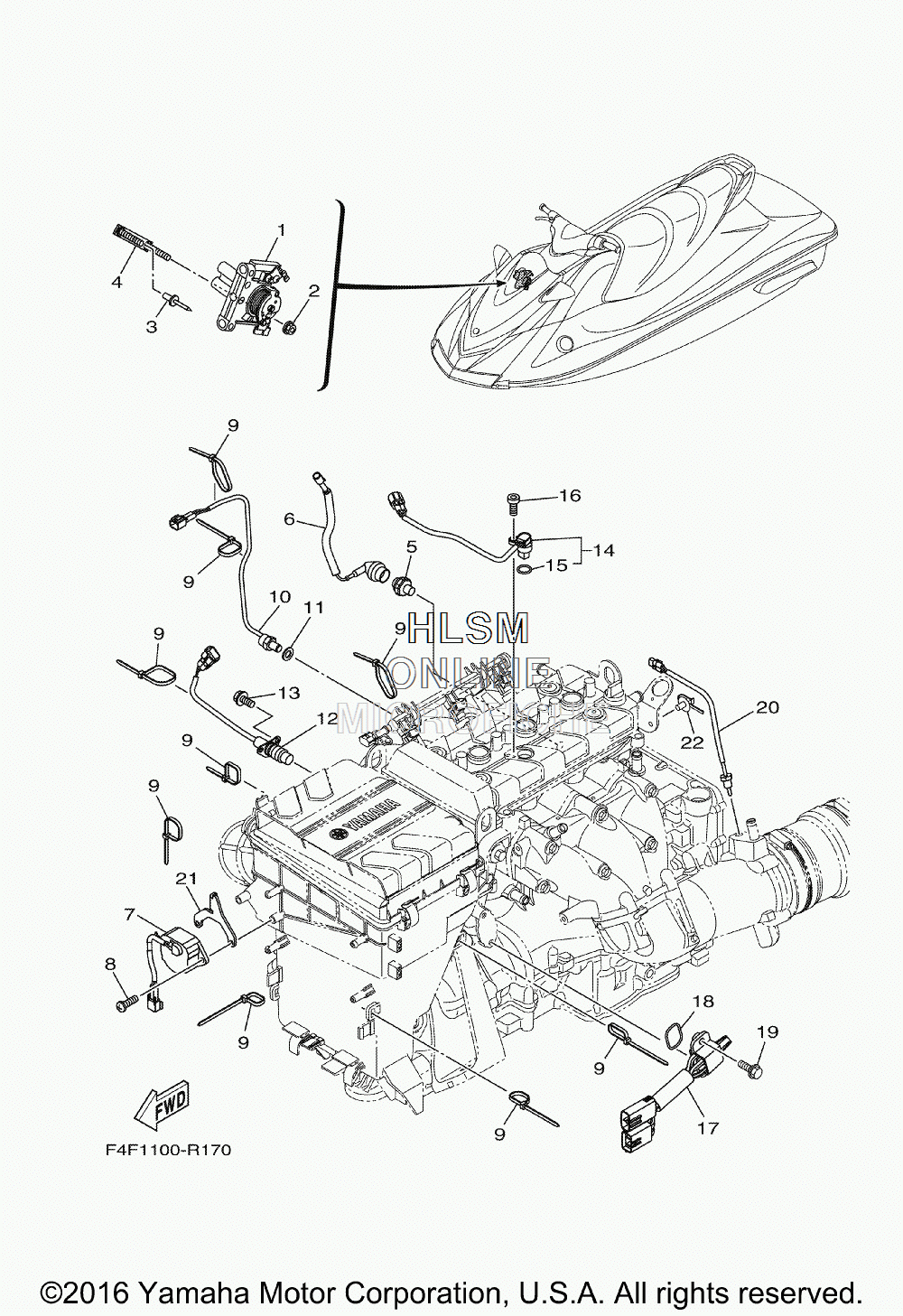

ELECTRICAL 2 для Yamaha V1 [VX1050ER] - 2016 года выпуска`
-
№АртикулНазвание
-
16D3-14305-21-00 ACCEL. POSITON SENSOR ASSYACCEL. POSITON SENSOR ASSY
-
295780-08300-00 NUT, FLANGENUT, FLANGE
-
390267-489U1-00 RIVET,BLINDRIVET,BLIND
-
4F2N-U7254-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
568V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
660E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
760E-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
897780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
990465-13M18-00 CLAMPCLAMP
-
1061A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1192990-10600-00 WASHER, PLATEWASHER, PLATE
-
126CR-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1397595-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
142S3-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
154D9-81168-00-00 ...O-RING...O-RING
-
1691380-06016-00 BOLTBOLT
-
176CS-8273J-10-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
1893210-32172-00 O-RINGO-RING
-
1990119-06MA3-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
206DE-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
216EY-83618-00-00 PLATEPLATE
-
2290464-20005-00 CLAMPCLAMP
