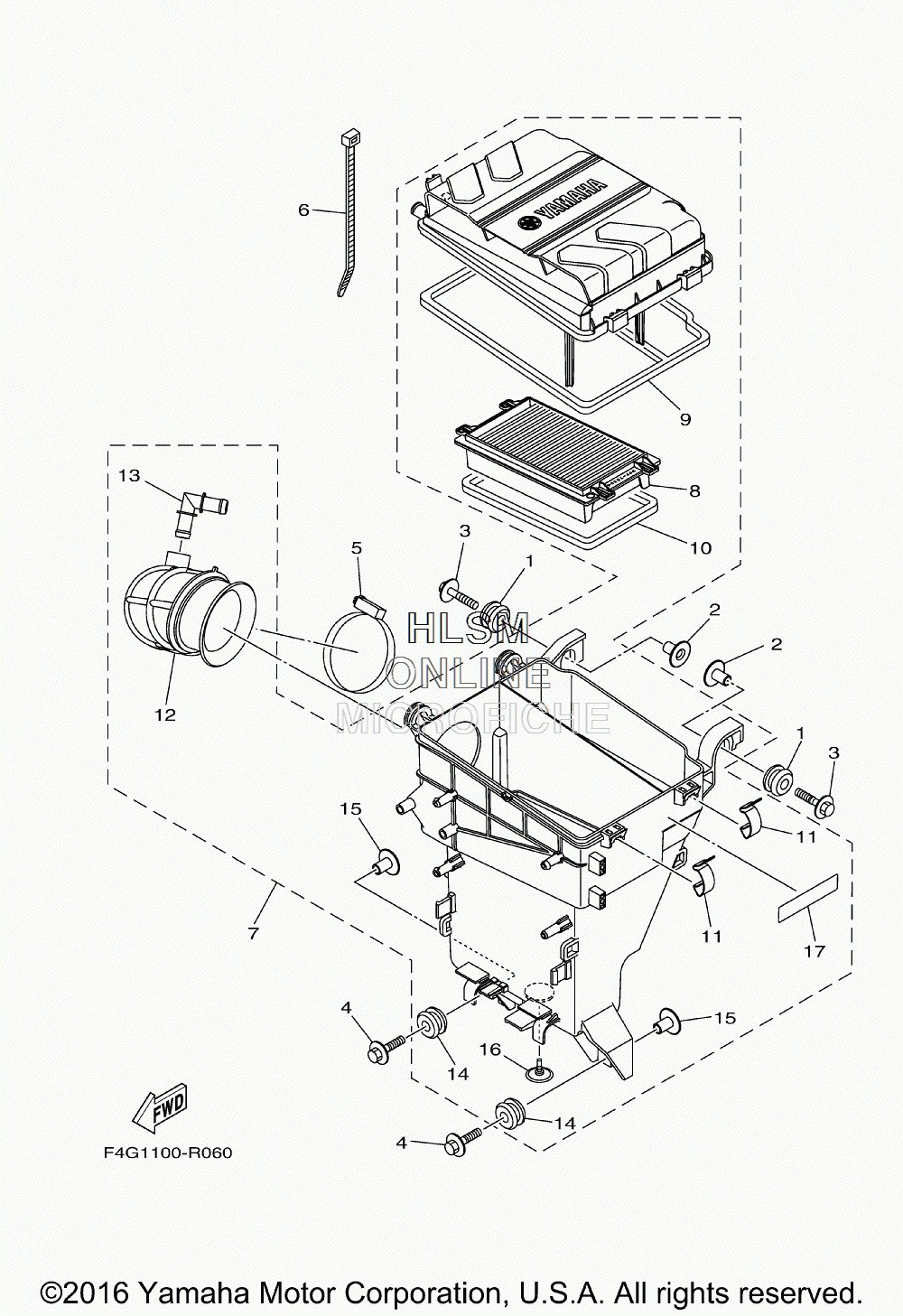

SUPER CHARGER ASSY для Yamaha V1 SPORT [VX1050DR] - 2016 года выпуска`
-
№АртикулНазвание
-
190480-22M15-00 GROMMETGROMMET
-
290387-08M37-00 COLLARCOLLAR
-
390119-08169-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590450-90002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
690465-13M18-00 CLAMPCLAMP
-
76EY-14410-00-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
86EY-14451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
96EY-14462-00-00 ...SEAL...SEAL
-
106EY-14452-00-00 ...SEAL...SEAL
-
116EY-14436-00-00 ...HOOK...HOOK
-
126EY-14419-00-00 ...PIPE...PIPE
-
136EY-14485-00-00 ...PIPE, JOINT...PIPE, JOINT
-
1490480-22M15-00 ...GROMMET...GROMMET
-
1590387-08M37-00 ...COLLAR...COLLAR
-
166EY-14470-00-00 ...VALVE...VALVE
-
1760E-83627-00-00 ...LABEL, CAUTION 7...LABEL, CAUTION 7
Все узлы модели:
- AIR SILENCER W/ INTAKE
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- • SUPER CHARGER ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
