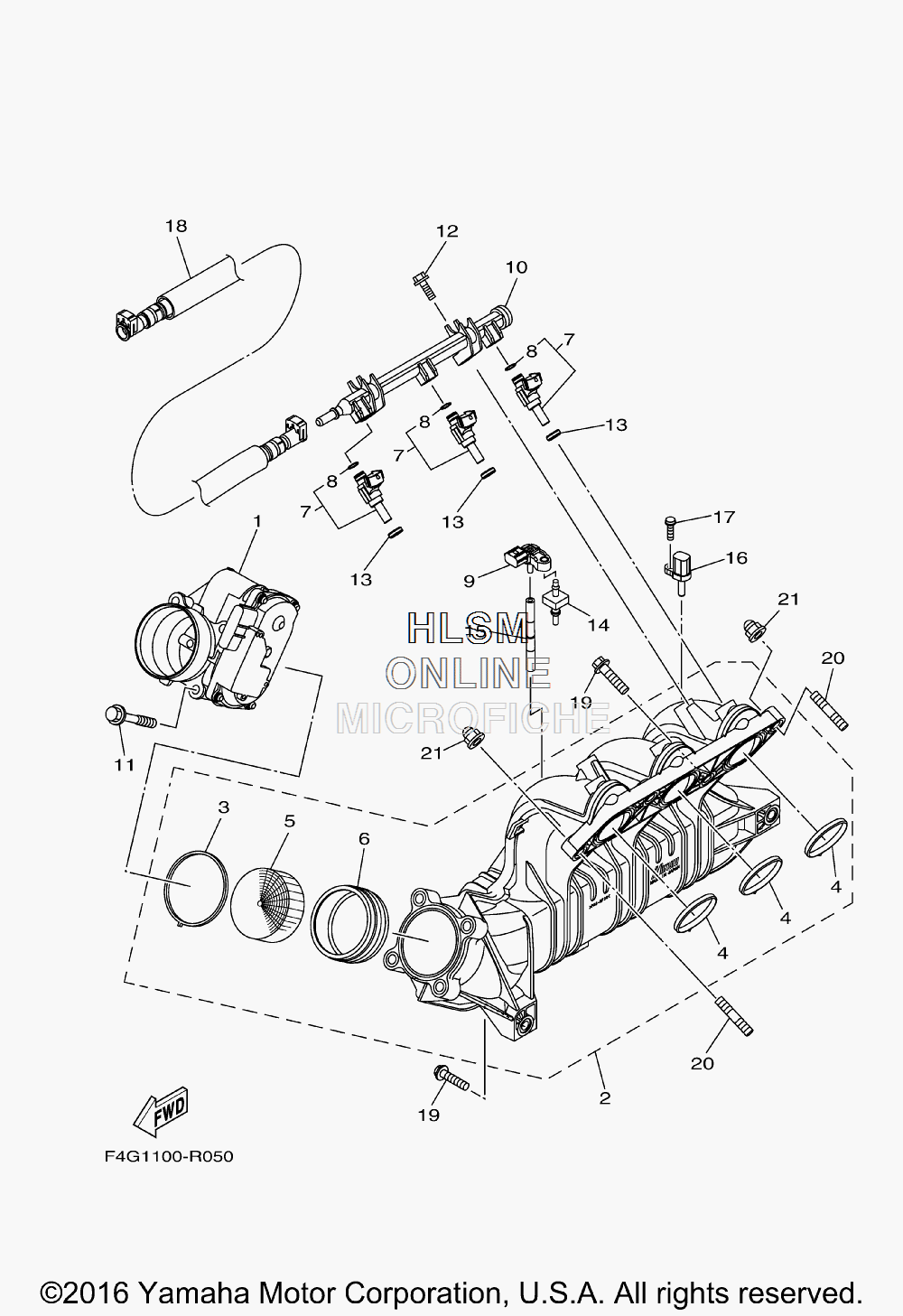

AIR SILENCER W/ INTAKE для Yamaha V1 SPORT [VX1050DR] - 2016 года выпуска`
-
№АртикулНазвание
-
16EY-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
26EY-13641-00-00 MANIFOLD, INTAKE 1MANIFOLD, INTAKE 1
-
36EY-14156-00-00 ...GASKET, INSULATING...GASKET, INSULATING
-
46EY-14126-00-00 ...GASKET...GASKET
-
56D3-1444B-00-00 ...RIBBON...RIBBON
-
66EY-14457-00-00 ...SEAL...SEAL
-
76EY-13761-00-00 INJECTORINJECTOR
-
868V-1416A-00-00 ...O-RING...O-RING
-
95S7-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
106EY-12880-00-00 DELIVERY PIPEDELIVERY PIPE
-
1190105-08243-00 BOLT, FLANGEBOLT, FLANGE
-
1295814-06020-00 BOLT, FLANGEBOLT, FLANGE
-
138FP-13556-10-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
146BH-14445-00-00 GROMMETGROMMET
-
156EY-13532-00-00 HOSE, VACUUM SENSING 3HOSE, VACUUM SENSING 3
-
168FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1797702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
186EY-2450B-00-00 FUEL HOSE ASSYFUEL HOSE ASSY
-
1997513-08535-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2095612-08625-00 BOLT, STUDBOLT, STUD
-
2190176-08080-00 NUT, CROWNNUT, CROWN
