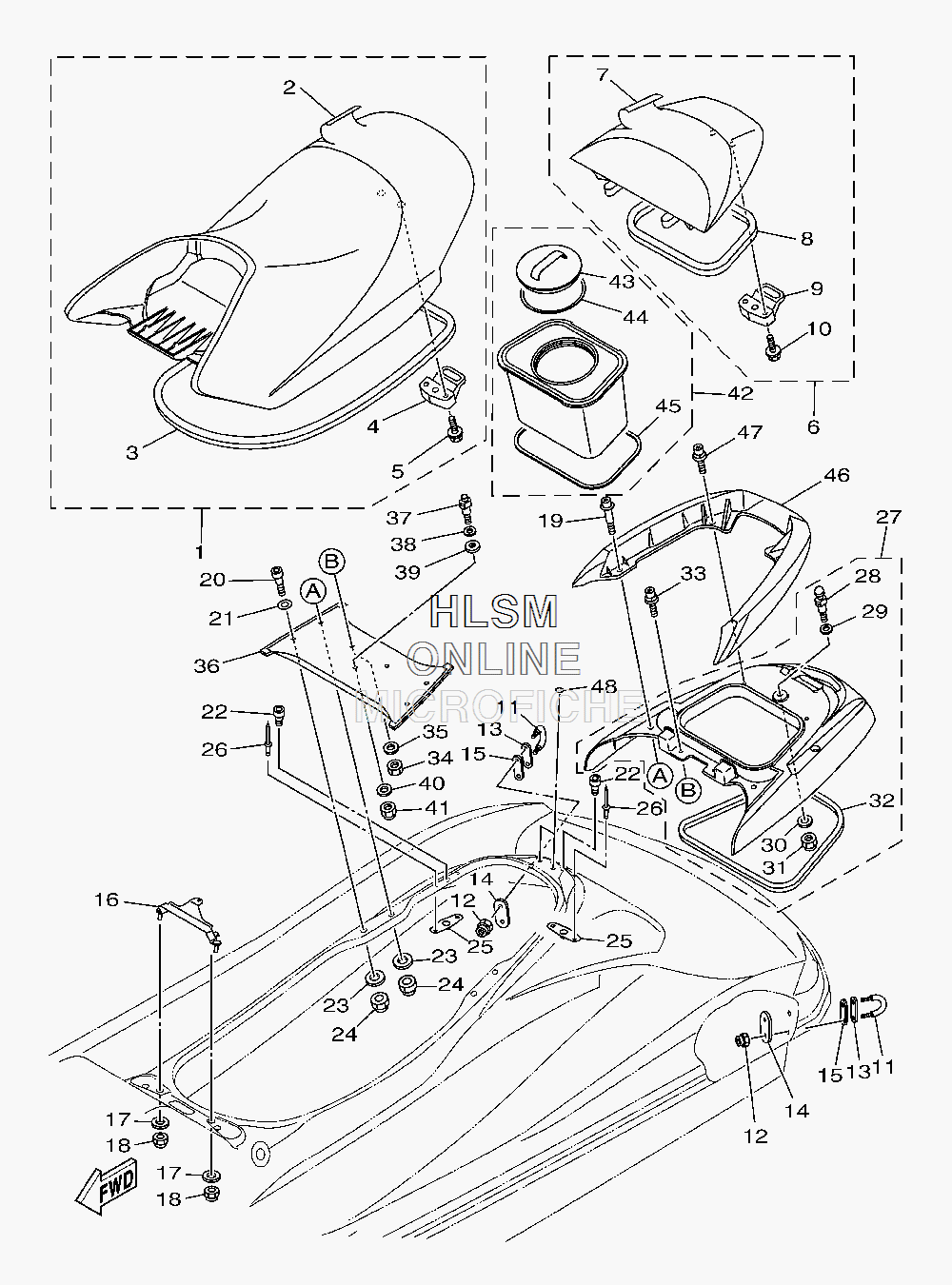

SEAT W/ UNDER LOCKER для Yamaha FZR [GX1800R] - 2016 года выпуска`
-
№АртикулНазвание
-
1F2R-U371A-50-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
2F2R-U371B-50-00 ...COVER, SEAT 1...COVER, SEAT 1
-
3F1W-U2664-01-00 ...PACKING...PACKING
-
4F1B-U3850-02-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
590119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
6F2R-U372A-50-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
7F2R-U372B-50-00 ...COVER, SEAT...COVER, SEAT
-
8F2C-U266D-01-00 ...PACKING 5...PACKING 5
-
9F2C-U3850-00-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
1090119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
11F2N-U1628-02-00 STERN EYESTERN EYE
-
129572R-08300-00 NUT, FLANGENUT, FLANGE
-
13GP7-U4953-10-00 PLATE APLATE A
-
14F2C-U4953-10-00 PLATE APLATE A
-
15F1B-U1653-02-00 PACKINGPACKING
-
16F2C-U378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
1790201-099U3-00 WASHER, PLATEWASHER, PLATE
-
189572R-08300-00 NUT, FLANGENUT, FLANGE
-
19F2C-U2624-01-00 BOLTBOLT
-
20F2C-U2624-20-00 BOLTBOLT
-
219299R-10200-00 WASHERWASHER
-
22F2C-U2624-10-00 BOLTBOLT
-
239299R-08200-00 WASHERWASHER
-
249572R-08300-00 NUT, FLANGENUT, FLANGE
-
25F2C-U826C-00-00 BRACKETBRACKET
-
2690267-489U1-00 RIVET,BLINDRIVET,BLIND
-
27F2C-U890L-10-00 DECK BEAM ASSYDECK BEAM ASSY
-
28GH1-U3774-00-00 ...PIN...PIN
-
2990201-109U6-00 ...WASHER, PLATE...WASHER, PLATE
-
309299R-10200-00 ...WASHER...WASHER
-
319572R-10300-00 ...NUT, NYLON...NUT, NYLON
-
32F2C-U375E-00-00 ...PACKING 1...PACKING 1
-
33F2C-U2624-30-00 BOLTBOLT
-
349538R-08600-00 NUTNUT
-
359299R-08200-00 WASHERWASHER
-
36F2C-U8952-11-00 BEAM, DECK 1BEAM, DECK 1
-
37F1B-U3774-00-00 PINPIN
-
3892990-12200-00 WASHER, PLAINWASHER, PLAIN
-
39F0X-6375E-00-00 PACKING 1PACKING 1
-
409299R-10200-00 WASHERWASHER
-
419572R-10300-00 NUT, NYLONNUT, NYLON
-
42F2C-U591A-02-00 CASE,ASSY 1CASE,ASSY 1
-
43F2C-U591C-00-00 ...CAP,CASE...CAP,CASE
-
44F2C-U591D-01-00 ...PACKING,CASE...PACKING,CASE
-
45F2C-U266E-00-00 ...PACKING,6...PACKING,6
-
46F2R-U271B-10-00 GRIP, HANDGRIP, HAND
-
47F2C-U2624-30-00 BOLTBOLT
-
48F2R-U884B-00-00 SEAL 1SEAL 1
