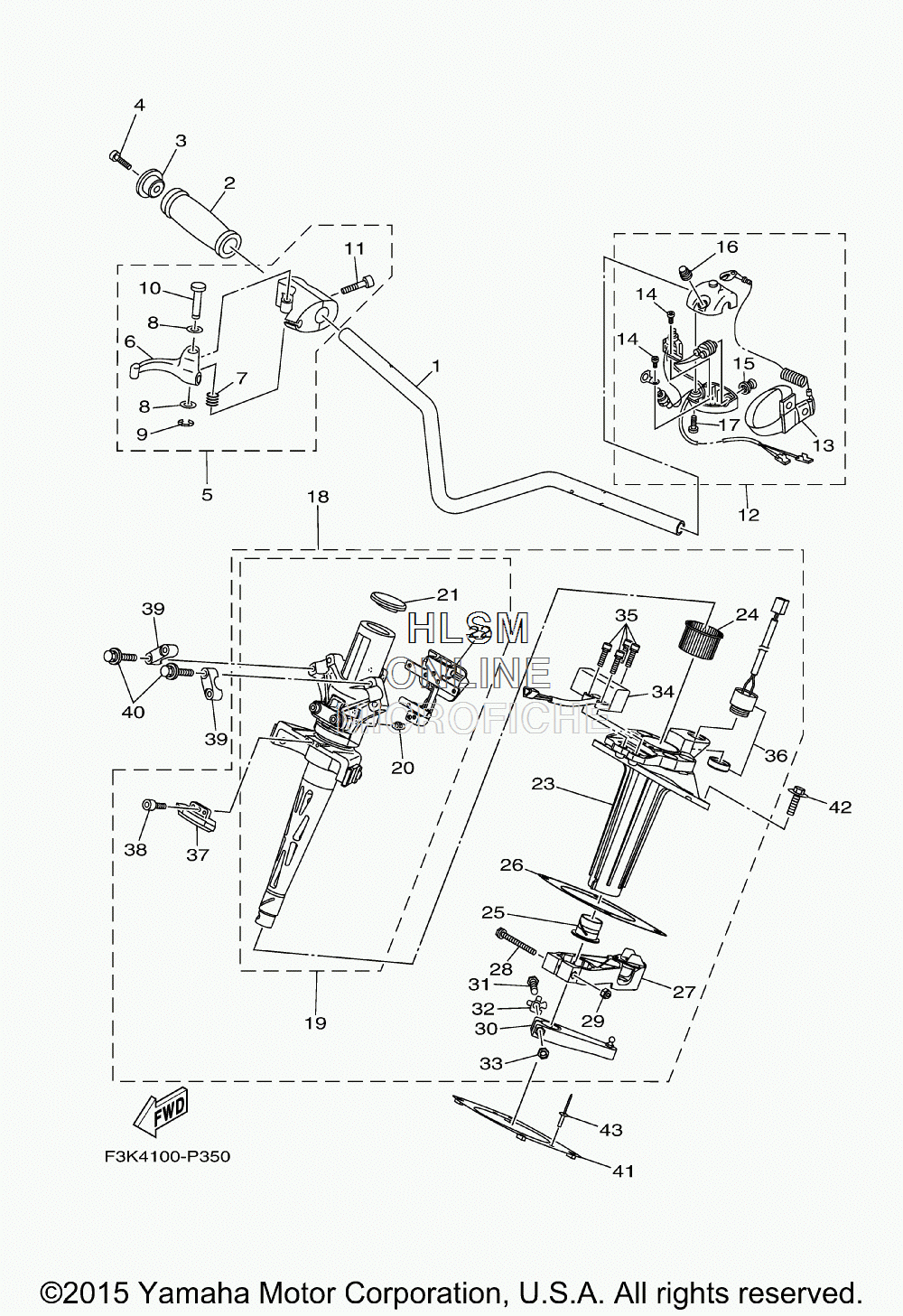

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha FZR [GX1800R] - 2016 года выпуска
-
№АртикулНазвание
-
1F2C-U1552-00-00 HANDLEHANDLE
-
2GP7-U155D-01-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5F0D-67250-10-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
6F0D-67255-02-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
7EW2-67256-00-00 ...SPRING...SPRING
-
8EW2-67258-01-00 ...WASHER...WASHER
-
9EW2-67259-01-00 ...E-RING...E-RING
-
10F0D-67257-00-00 ...SHAFT...SHAFT
-
11F1X-6725F-01-00 ...BOLT, THROTTLE...BOLT, THROTTLE
-
12F2C-68310-00-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
13EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1497880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
15FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
16FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1797880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
18F3K-61400-00-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
19F3K-67410-00-00 ...SHAFT ASSY...SHAFT ASSY
-
20F2C-6151T-00-00 ......NIPPLE, GREASE......NIPPLE, GREASE
-
21F2C-613B0-00-00 ......CAP......CAP
-
22F2C-6287A-00-00 ......LOCK ASSY......LOCK ASSY
-
23F2C-6152M-00-00 ...HOUSING ASSY...HOUSING ASSY
-
24F1K-6134M-00-00 ...BUSH...BUSH
-
25F2C-6134M-00-00 ...BUSH...BUSH
-
26F2C-6143C-00-00 ...SEAL, RUBBER...SEAL, RUBBER
-
27F2C-6146A-00-00 ...CABLE STOPPER ASSY....CABLE STOPPER ASSY.
-
28F2C-61369-00-00 ...BOLT...BOLT
-
2995720-06300-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
30F2C-6153R-00-00 ...ARM ASSY....ARM ASSY.
-
31F1K-61355-00-00 ...BOLT...BOLT
-
32F1K-6142B-00-00 ...PLATE, RETAINING...PLATE, RETAINING
-
3395720-08300-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
34F3J-6838B-00-00 ...SENSOR, MAGNET...SENSOR, MAGNET
-
35F1W-61516-00-00 ...BOLT...BOLT
-
36F1S-68341-00-00 ...BUZZER...BUZZER
-
37F3J-6838C-00-00 ...MAGNET...MAGNET
-
38F1B-613C1-00-00 ...SCREW...SCREW
-
39EU0-23814-31-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
4090119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
41F2C-U1554-00-00 PLATE, RETAININGPLATE, RETAINING
-
4290119-08836-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4390267-48806-00 RIVET, BLINDRIVET, BLIND
