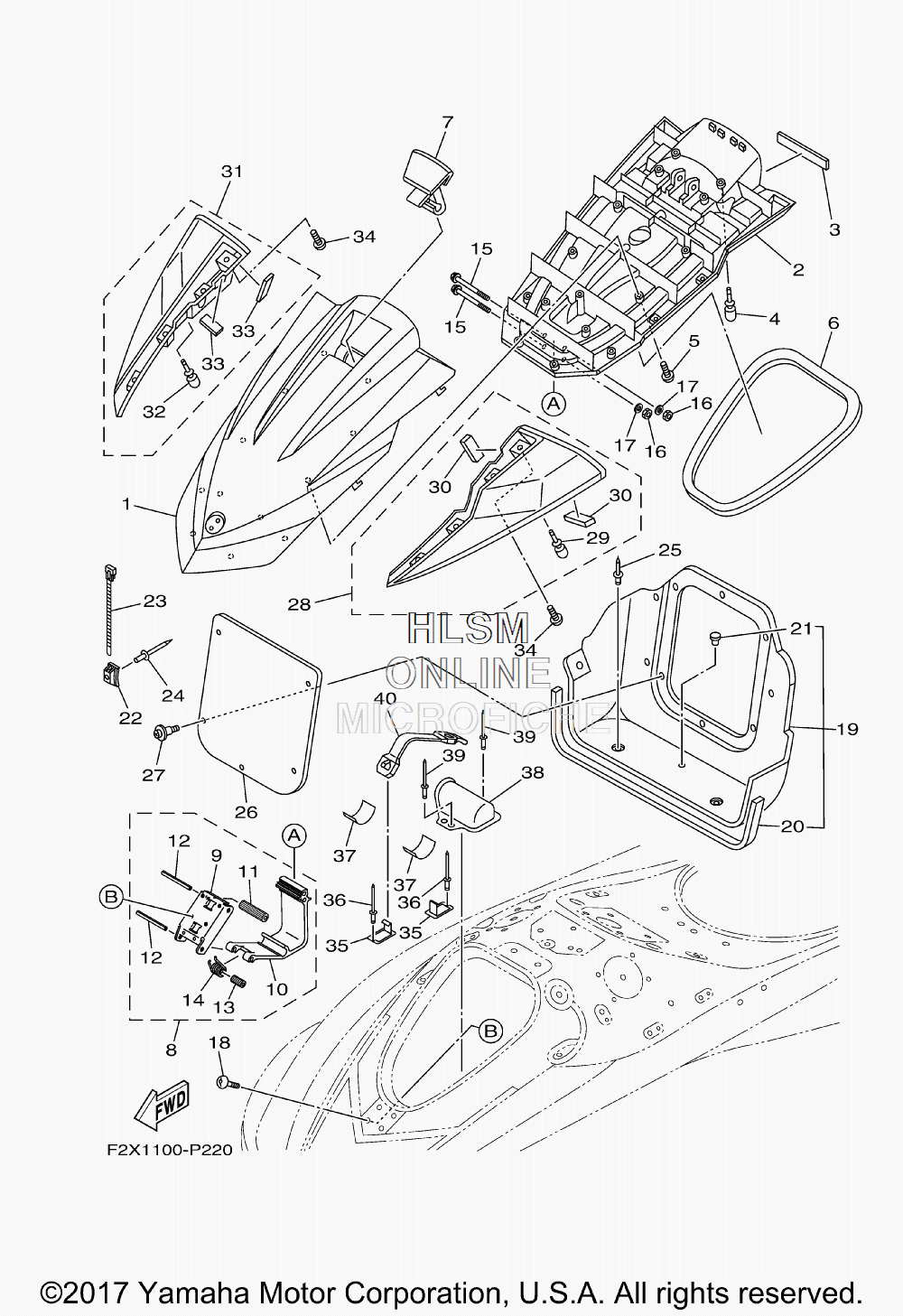

FRONT STORAGE W/ COVER для Yamaha VX DELUXE - 2015 года выпуска`
-
№АртикулНазвание
-
1F2X-U517B-00-P0 LID, ENGINE ROOM (DPBM11 - BLUE METALLIC) (CRUISER)LID, ENGINE ROOM (DPBM11 - BLUE METALLIC) (CRUISER)
-
1F2X-U517B-00-P2 LID, ENGINE ROOM (PURW - PURE WHITE) (CRUISER)LID, ENGINE ROOM (PURW - PURE WHITE) (CRUISER)
-
1F2X-U517B-00-P3 LID, ENGINE ROOM (LNMP - SILVER METALLIC) (DELUXE)LID, ENGINE ROOM (LNMP - SILVER METALLIC) (DELUXE)
-
1F2X-U517B-00-P4 LID, ENGINE ROOM (BMG - BLACK METALLIC) (DELUXE)LID, ENGINE ROOM (BMG - BLACK METALLIC) (DELUXE)
-
2F2X-U519G-00-00 INNER, ENGINE HATCHINNER, ENGINE HATCH
-
3F2C-U515D-00-00 DAMPER 1DAMPER 1
-
4F1W-U3768-01-00 CUSHION, RUBBERCUSHION, RUBBER
-
5F2S-U13C1-00-00 SCREWSCREW
-
6F2N-U2663-01-00 PACKING 1PACKING 1
-
7F2X-U517C-01-00 LOCK, LIDLOCK, LID
-
8F2X-U515A-00-00 HINGE ASSY.HINGE ASSY.
-
9F1K-U518E-04-00 ...PLATE, HINGE LID...PLATE, HINGE LID
-
10F1K-U517D-05-00 ...HINGE, LID...HINGE, LID
-
11F2X-U135C-00-00 ...ROLLER, DETENT...ROLLER, DETENT
-
12F1K-U517R-00-00 ...PIN, HINGE...PIN, HINGE
-
13F1K-U471E-03-00 ...SPACER 1...SPACER 1
-
14F1K-U283B-02-00 ...SPRING, TORSION...SPRING, TORSION
-
1590105-06826-00 BOLT, FLANGEBOLT, FLANGE
-
169572R-06300-00 NUT, NYLONNUT, NYLON
-
179299R-06200-00 WASHERWASHER
-
18F2N-67823-00-00 SCREWSCREW
-
19F2X-U475B-00-00 LOCKER,BOWLOCKER,BOW
-
20F2N-U266C-01-00 ...PACKING 4...PACKING 4
-
2190605-502U1-00 ...PLUG, BLIND...PLUG, BLIND
-
22F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2390267-48803-00 RIVET, BLINDRIVET, BLIND
-
2490464-32801-00 CLAMPCLAMP
-
2590269-08801-00 RIVETRIVET
-
26F2S-U475F-00-00 PLATE, LOKER BOWPLATE, LOKER BOW
-
2790269-08801-00 RIVETRIVET
-
28F2X-U590D-40-00 MIRROR ASSY. 1 (LNMP - SILVER METALLIC) (DELUXE)MIRROR ASSY. 1 (LNMP - SILVER METALLIC) (DELUXE)
-
28F2X-U590D-20-00 MIRROR ASSY. 1 (PURW - PURE WHITE) (CRUISER)MIRROR ASSY. 1 (PURW - PURE WHITE) (CRUISER)
-
28F2X-U590D-00-00 MIRROR ASSY. 1 (BMG - BLACK METALLIC) (DELUXE)MIRROR ASSY. 1 (BMG - BLACK METALLIC) (DELUXE)
-
28F2X-U590D-00-00 MIRROR ASSY. 1 (DPBM11 - BLUE METALLIC) (CRUISER)MIRROR ASSY. 1 (DPBM11 - BLUE METALLIC) (CRUISER)
-
29F1W-U3768-01-00 ...CUSHION, RUBBER...CUSHION, RUBBER
-
30F1K-U266B-00-00 ...PACKING 3...PACKING 3
-
31F2X-U590E-40-00 MIRROR ASSY. 2 (LNMP - SILVER METALLIC) (DELUXE)MIRROR ASSY. 2 (LNMP - SILVER METALLIC) (DELUXE)
-
31F2X-U590E-20-00 MIRROR ASSY. 2 (PURW - PURE WHITE) (CRUISER)MIRROR ASSY. 2 (PURW - PURE WHITE) (CRUISER)
-
31F2X-U590E-00-00 MIRROR ASSY. 2 (BMG - BLACK METALLIC) (DELUXE)MIRROR ASSY. 2 (BMG - BLACK METALLIC) (DELUXE)
-
31F2X-U590E-00-00 MIRROR ASSY. 2 (DPBM11 - BLUE METALLIC) (CRUISER)MIRROR ASSY. 2 (DPBM11 - BLUE METALLIC) (CRUISER)
-
32F1W-U3768-01-00 ...CUSHION, RUBBER...CUSHION, RUBBER
-
33F1K-U266B-00-00 ...PACKING 3...PACKING 3
-
34F2X-U13C1-00-00 SCREWSCREW
-
35F1K-U5772-04-00 HOOK AHOOK A
-
3690267-489U1-00 RIVET,BLINDRIVET,BLIND
-
37F1K-U759C-00-00 MAT 2MAT 2
-
38F2X-U5983-00-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
3990267-48802-00 RIVET, BLINDRIVET, BLIND
-
40F2P-U828K-00-00 BAND 1BAND 1
