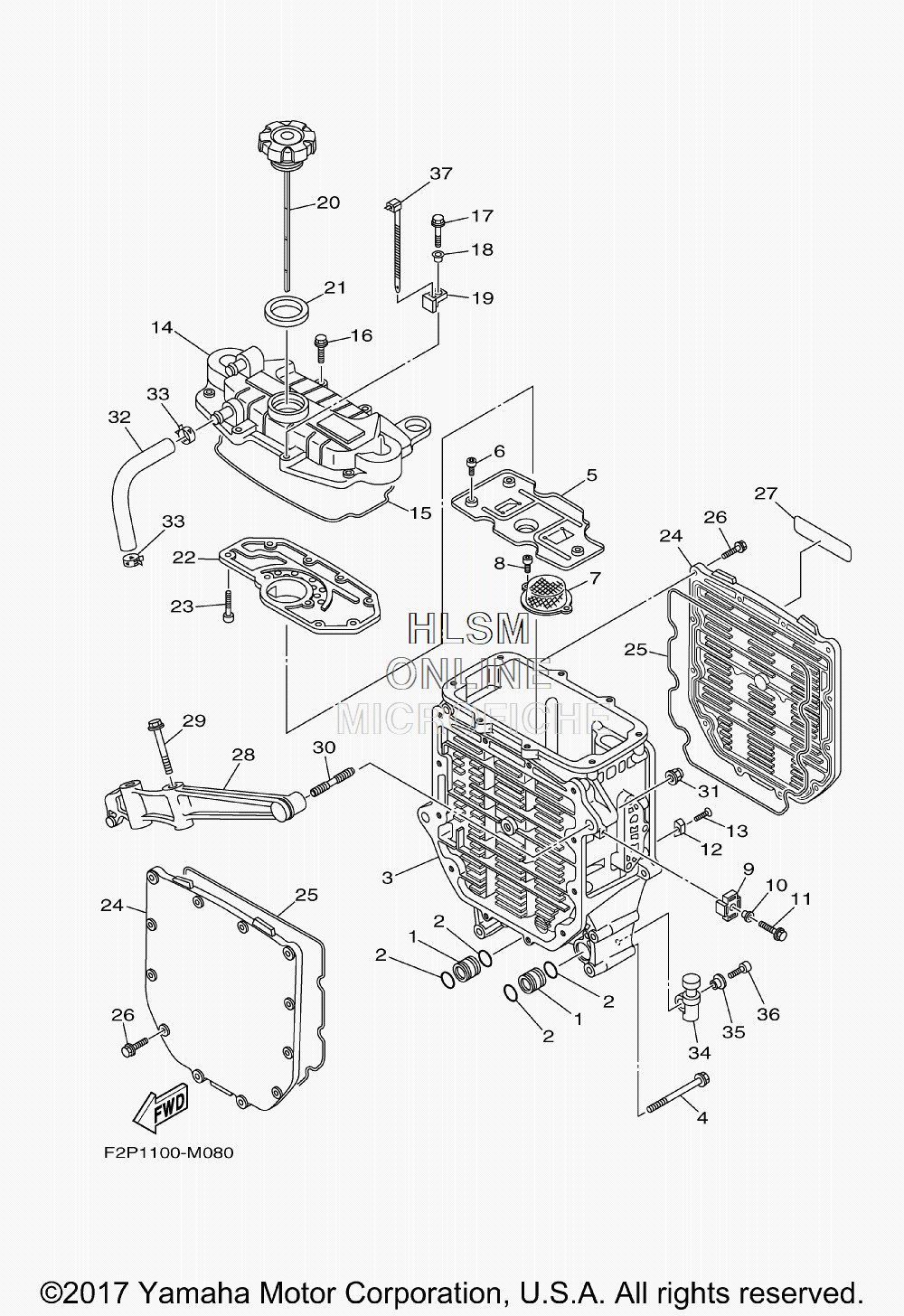

OIL COOLER для Yamaha VX DELUXE - 2015 года выпуска`
-
№АртикулНазвание
-
160E-13446-00-00 CONNECTORCONNECTOR
-
293210-18322-00 O-RINGO-RING
-
36D3-13462-00-94 CASE, OIL COOLERCASE, OIL COOLER
-
490119-10020-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
56B6-13317-00-00 PLATE, BAFFLEPLATE, BAFFLE
-
691317-05014-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
760E-13421-00-00 STRAINER 2STRAINER 2
-
891317-06014-00 BOLT,HEX.SOCKET HEADBOLT,HEX.SOCKET HEAD
-
96BU-85542-00-00 BRACKETBRACKET
-
1090387-06M05-00 COLLARCOLLAR
-
1197595-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
126E5-11325-00-00 ANODEANODE
-
1398780-04015-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
146D3-13463-00-94 COVER, OIL COOLERCOVER, OIL COOLER
-
1560E-13475-00-00 GASKETGASKET
-
1690105-06036-00 BOLT, FLANGEBOLT, FLANGE
-
1790105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1890387-06M05-00 COLLARCOLLAR
-
196AA-85542-00-00 BRACKETBRACKET
-
206BU-15362-A0-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2160E-13473-00-00 O-RINGO-RING
-
226D3-11165-00-00 PLATE, BREATHERPLATE, BREATHER
-
2391317-05016-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
246D3-13443-00-94 COVER, OIL COOLERCOVER, OIL COOLER
-
2560E-13476-10-00 GASKETGASKET
-
2690105-06M07-00 BOLT, FLANGEBOLT, FLANGE
-
2760E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
286B6-13151-00-94 STAYSTAY
-
2990119-10M02-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090116-10016-00 BOLT, STUDBOLT, STUD
-
3190176-10001-00 NUT, CROWNNUT, CROWN
-
326D3-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
3390467-170A4-00 CLIPCLIP
-
346S5-81364-10-00 GROMMETGROMMET
-
3590387-06M05-00 COLLARCOLLAR
-
3691380-06020-00 BOLTBOLT
-
3790465-13M39-00 CLAMPCLAMP
