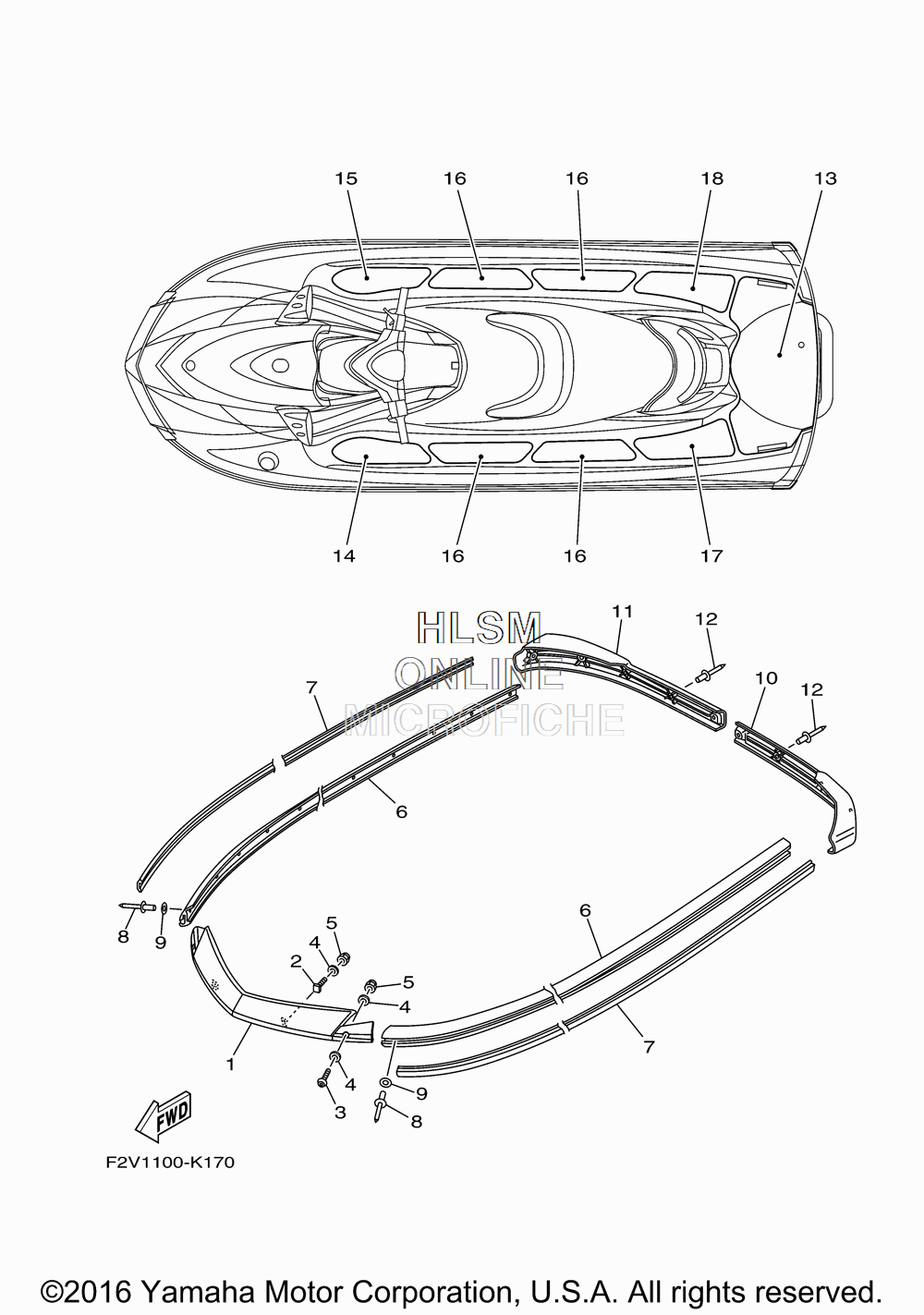

HULL - GUNWALE - MAT для Yamaha V1 SPORT - 2015 года выпуска`
-
№АртикулНазвание
-
1F2N-U2511-30-00 GUNWALE, BOW (DARK GRAY)GUNWALE, BOW (DARK GRAY)
-
2F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390111-06803-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
49299R-06200-00 WASHERWASHER
-
59572R-06300-00 NUT, NYLONNUT, NYLON
-
6F1K-U2512-30-00 GUNWALE, SIDE (DARK GRAY)GUNWALE, SIDE (DARK GRAY)
-
7F1K-U2519-20-00 INNER,GUNWALE (YAMAHA BLACK)INNER,GUNWALE (YAMAHA BLACK)
-
890267-489U8-00 RIVET, BLINDRIVET, BLIND
-
99299R-05200-00 WASHERWASHER
-
10F1K-U251D-30-00 GUNWALE, STERN 1 (DARK GRAY)GUNWALE, STERN 1 (DARK GRAY)
-
11F1K-U251E-30-00 GUNWALE, STERN 2 (DARK GRAY)GUNWALE, STERN 2 (DARK GRAY)
-
1290267-48963-00 RIVET, BLINDRIVET, BLIND
-
13F2P-U3581-00-00 MAT, UPPER (DARK GRAY)MAT, UPPER (DARK GRAY)
-
14F2P-U351H-00-00 MAT, STEP 1 (DARK GRAY)MAT, STEP 1 (DARK GRAY)
-
15F2P-U351J-00-00 MAT, STEP 2 (DARK GRAY)MAT, STEP 2 (DARK GRAY)
-
16F2P-U351K-00-00 MAT, STEP 3 (DARK GRAY)MAT, STEP 3 (DARK GRAY)
-
17F2P-U351M-00-00 MAT, STEP 4 (DARK GRAY)MAT, STEP 4 (DARK GRAY)
-
18F2P-U351N-00-00 MAT, STEP 5 (DARK GRAY)MAT, STEP 5 (DARK GRAY)
