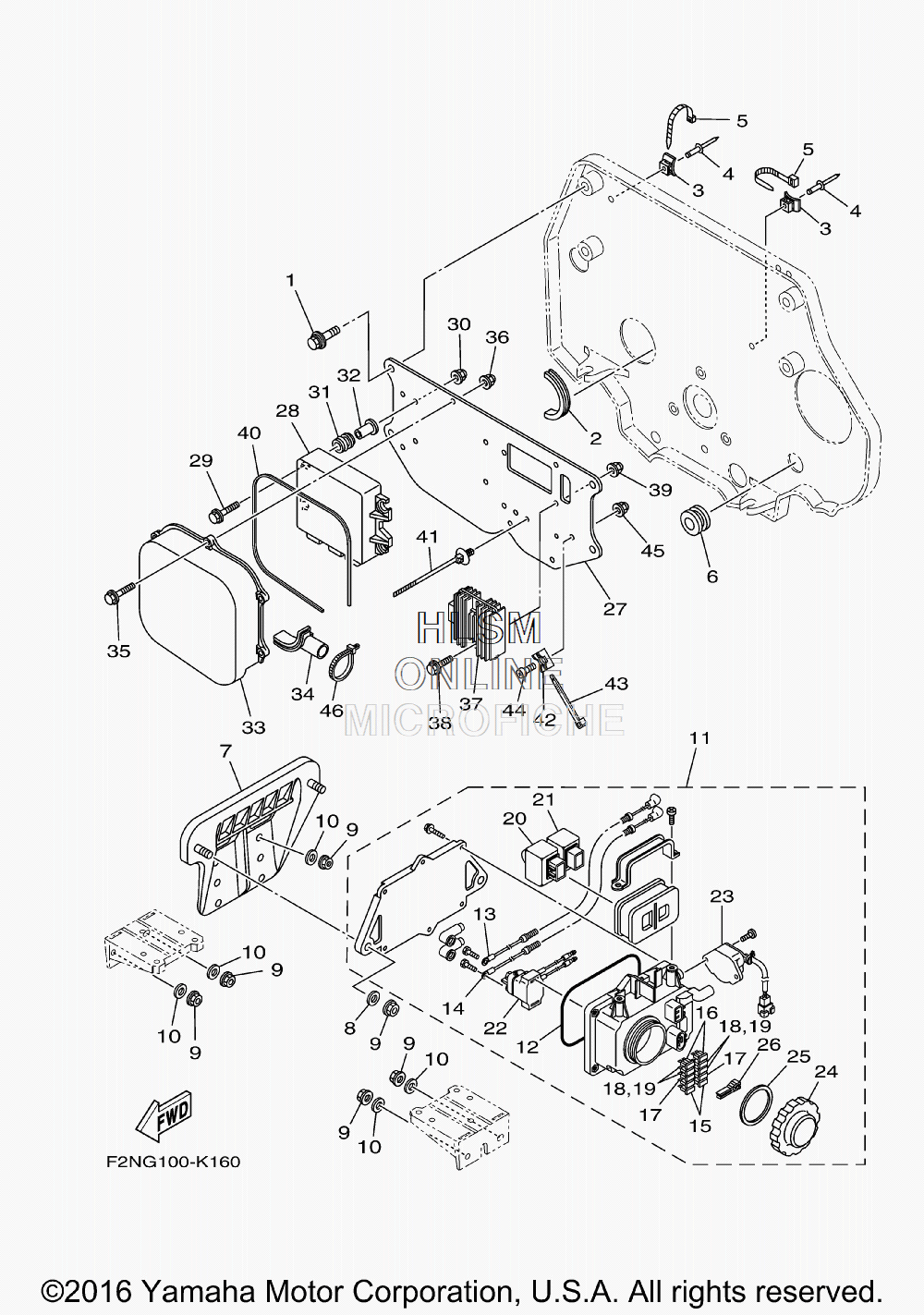

ELECTRICAL 1 для Yamaha V1 SPORT - 2015 года выпуска`
-
№АртикулНазвание
-
190119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2F1S-U828H-01-00 TRIM, 1TRIM, 1
-
3F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
490267-48802-00 RIVET, BLINDRIVET, BLIND
-
590464-32801-00 CLAMPCLAMP
-
690480-279U1-00 GROMMETGROMMET
-
7F2N-U815D-01-00 BRACKET, ELECTRIC BOXBRACKET, ELECTRIC BOX
-
890201-099U3-00 WASHER, PLATEWASHER, PLATE
-
99572R-08300-00 NUT, FLANGENUT, FLANGE
-
109299R-08200-00 WASHERWASHER
-
116BU-82170-00-00 FUSE BOX ASSYFUSE BOX ASSY
-
126D3-81921-00-00 ...GASKET, TERMINAL...GASKET, TERMINAL
-
136BU-82115-00-00 ...WIRE, PLUS LEAD...WIRE, PLUS LEAD
-
146D3-82117-00-00 ...WIRE, LEAD...WIRE, LEAD
-
1567F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
1667F-82151-10-00 ...FUSE (30A)...FUSE (30A)
-
1767F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
1867F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
1967F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
2060E-81950-00-00 ...RELAY ASSY...RELAY ASSY
-
2168V-81950-00-00 ...RELAY ASSY...RELAY ASSY
-
226B6-81940-00-00 ...STARTER RELAY ASSY...STARTER RELAY ASSY
-
2360E-8259E-00-00 ...SWITCH ASSY...SWITCH ASSY
-
2466V-8132W-00-00 ...CAP...CAP
-
2566V-81844-00-00 ...GASKET...GASKET
-
2667F-2812A-00-00 ...PULLER, FUSE...PULLER, FUSE
-
276BU-81845-00-00 PLATEPLATE
-
286EN-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
2995814-06025-00 BOLT, FLANGEBOLT, FLANGE
-
3090176-06047-00 NUT, CAPNUT, CAP
-
316A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
3290387-06119-00 COLLARCOLLAR
-
336BU-81639-00-00 COVERCOVER
-
346BU-81336-00-00 GROMMETGROMMET
-
3595814-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3690176-06047-00 NUT, CAPNUT, CAP
-
376S8-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
3895814-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3990176-06047-00 NUT, CAPNUT, CAP
-
406BU-81861-00-00 GASKETGASKET
-
4190464-31001-00 CLAMPCLAMP
-
4260E-1244E-00-00 BRACKET 1BRACKET 1
-
4390465-13M24-00 CLAMPCLAMP
-
4492014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4590176-06047-00 NUT, CAPNUT, CAP
-
4690465-13M18-00 CLAMPCLAMP
