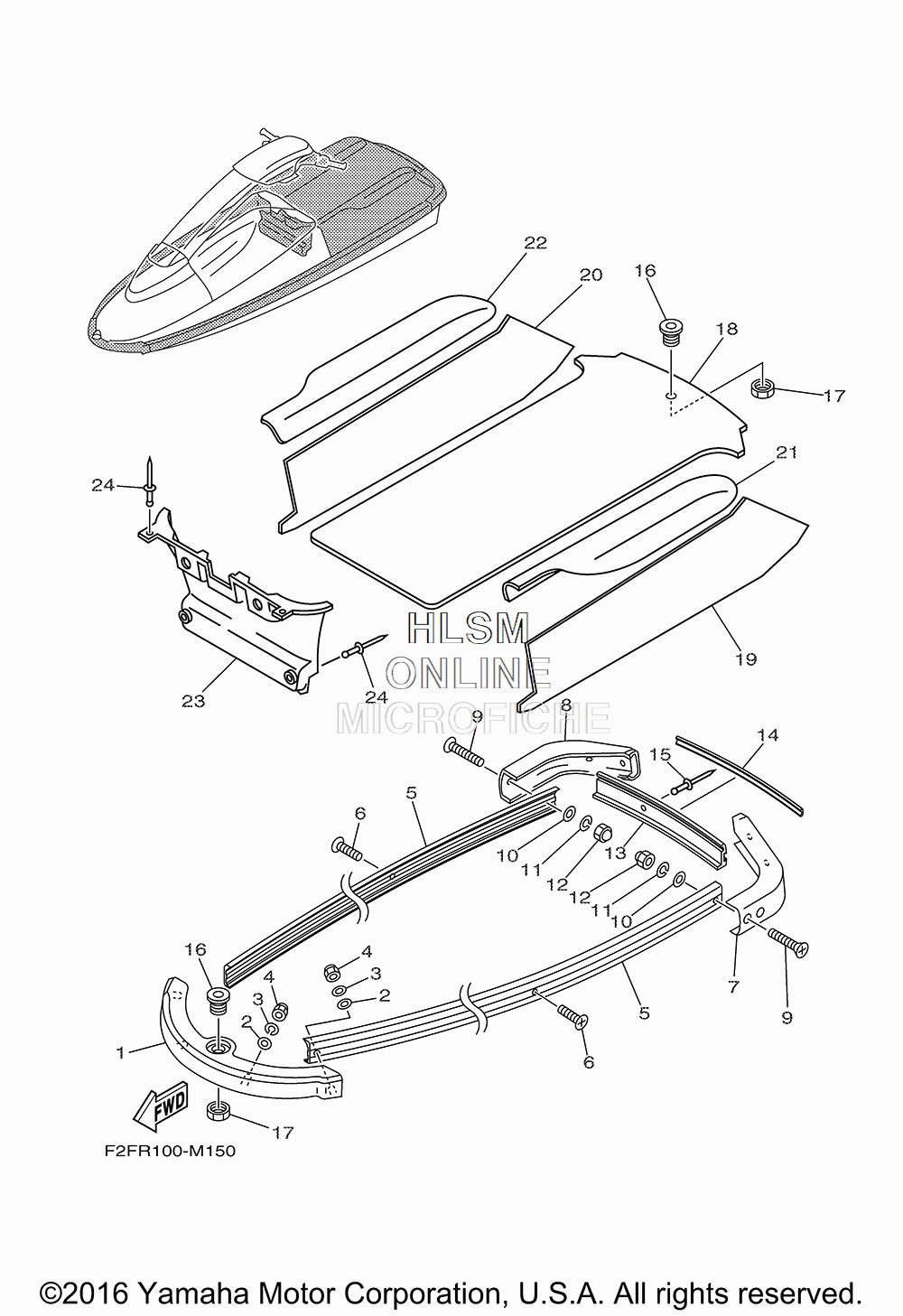

HULL - GUNWALE - MAT для Yamaha SUPER JET - 2015 года выпуска`
-
№АртикулНазвание
-
1GM6-62501-10-00 BOW GUNWALE COMP. (BLACK)BOW GUNWALE COMP. (BLACK)
-
292990-06200-00 WASHER, PLAINWASHER, PLAIN
-
392990-06100-00 WASHER, SPRINGWASHER, SPRING
-
495380-06800-00 NUTNUT
-
5F2F-62552-00-00 GUNWALE, SIDE 1 (BLACK)GUNWALE, SIDE 1 (BLACK)
-
690149-05962-00 SCREWSCREW
-
7GM6-6251D-10-00 GUNWALE, STERN 1 (YB - YAMAHA BLACK)GUNWALE, STERN 1 (YB - YAMAHA BLACK)
-
8GM6-6251E-10-00 GUNWALE, STERN 2 (YB - YAMAHA BLACK)GUNWALE, STERN 2 (YB - YAMAHA BLACK)
-
990149-05960-00 SCREWSCREW
-
1092990-05200-00 WASHER, PLAINWASHER, PLAIN
-
1192990-05100-00 WASHER, SPRINGWASHER, SPRING
-
1290179-05964-00 NUTNUT
-
13F2F-6252C-00-00 COVER, GUNWALE 1 (BLACK)COVER, GUNWALE 1 (BLACK)
-
14GM6-6252D-10-00 COVER, GUNWALE 2 (BLACK)COVER, GUNWALE 2 (BLACK)
-
1590267-48932-00 RIVET, BLINDRIVET, BLIND
-
16FN8-61651-01-00 ROPE HOLEROPE HOLE
-
17EU0-61652-00-00 NUTNUT
-
18F2F-6351B-00-00 MAT,LOWER (BLACK)MAT,LOWER (BLACK)
-
19GM6-6351C-00-00 MAT, SIDE 1 (BLACK)MAT, SIDE 1 (BLACK)
-
20GM6-6351D-00-00 MAT,SIDE 2 (BLACK)MAT,SIDE 2 (BLACK)
-
21GM6-6521C-10-00 PAD 1 (BLACK)PAD 1 (BLACK)
-
22GM6-6521D-10-00 PAD 2 (BLACK)PAD 2 (BLACK)
-
23GM6-6351E-10-00 MAT,BOW (YB - YAMAHA BLACK)MAT,BOW (YB - YAMAHA BLACK)
-
2490267-48963-00 RIVET, BLINDRIVET, BLIND
