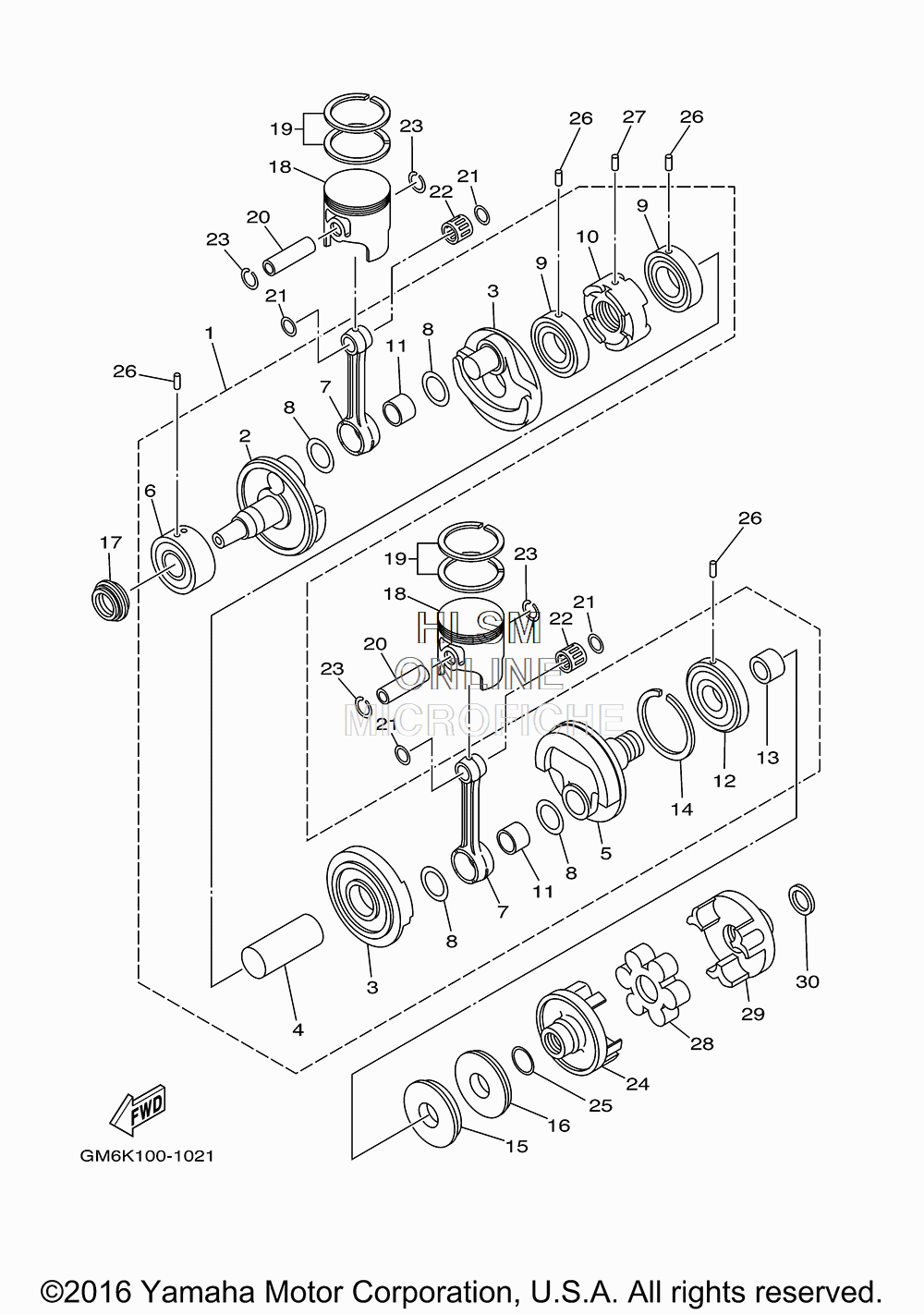

CRANKSHAFT W/ PISTON для Yamaha SUPER JET - 2015 года выпуска`
-
№АртикулНазвание
-
161X-11400-03-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
26M6-11412-00-00 ...CRANK 1...CRANK 1
-
36M6-11422-00-00 ...CRANK 2...CRANK 2
-
46M6-11431-10-00 ...CRANK 3...CRANK 3
-
56M6-11442-01-00 ...CRANK 4...CRANK 4
-
693305-30601-00 ...BEARING...BEARING
-
764X-11651-01-00 ...ROD, CONNECTING...ROD, CONNECTING
-
882M-11685-00-00 ...WASHER, CRANK PIN...WASHER, CRANK PIN
-
993306-207U2-00 ...BEARING...BEARING
-
1065U-11515-00-00 ...SEAL, LABYRINTH 1...SEAL, LABYRINTH 1
-
1193310-525U0-00 ...BEARING...BEARING
-
1293306-307U3-00 ...BEARING...BEARING
-
1362T-45526-00-00 ...COLLAR, DRIVE SHAFT...COLLAR, DRIVE SHAFT
-
1493440-80023-00 ...CIRCLIP...CIRCLIP
-
1593102-36M33-00 OIL SEALOIL SEAL
-
1693101-36M46-00 OIL SEALOIL SEAL
-
1793103-32M01-00 OIL SEALOIL SEAL
-
1861X-11631-02-93 PISTON (STD)PISTON (STD)
-
1861X-11635-02-00 PISTON (0.25MM O/S) (OPT)PISTON (0.25MM O/S) (OPT)
-
1861X-11636-02-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
1961X-11603-01-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1961X-11604-01-00 PISTON RING SET (0.25MM O/S) (OPT)PISTON RING SET (0.25MM O/S) (OPT)
-
1961X-11605-01-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
2061X-11633-00-00 PIN, PISTONPIN, PISTON
-
2190201-20M04-00 WASHER, PLATEWASHER, PLATE
-
2293310-320U2-00 BEARINGBEARING
-
2393450-21053-00 CIRCLIPCIRCLIP
-
246M6-45813-32-8P FLANGE, COUPLINGFLANGE, COUPLING
-
2562T-45127-00-00 SEALSEAL
-
2693603-10049-00 PIN, DOWELPIN, DOWEL
-
2793604-07141-00 PIN, DOWELPIN, DOWEL
-
2861X-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
296M6-45813-22-8P FLANGE, COUPLINGFLANGE, COUPLING
-
3090201-24M02-00 WASHER, PLATEWASHER, PLATE
