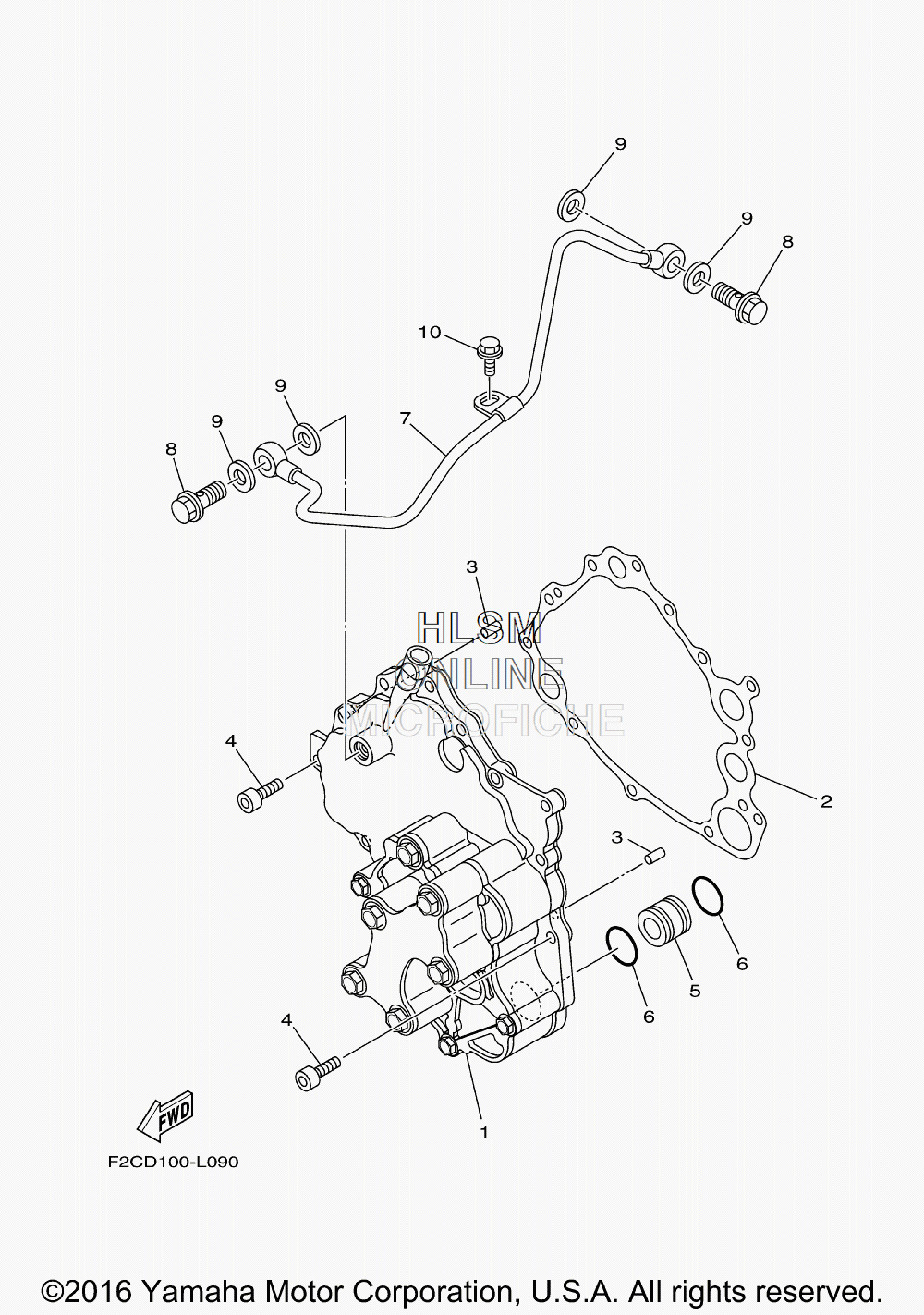

OIL PUMP для Yamaha FXR - 2015 года выпуска`
-
№АртикулНазвание
-
16S5-13300-22-00 OIL PUMP ASSYOIL PUMP ASSY
-
26S5-13563-00-00 GASKETGASKET
-
393606-12019-00 PIN, DOWELPIN, DOWEL
-
491314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
56S5-13446-10-00 CONNECTORCONNECTOR
-
693210-21631-00 O-RINGO-RING
-
76S5-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
890401-10040-00 BOLT, UNIONBOLT, UNION
-
990430-10007-00 GASKETGASKET
-
1095023-06012-00 BOLTBOLT
