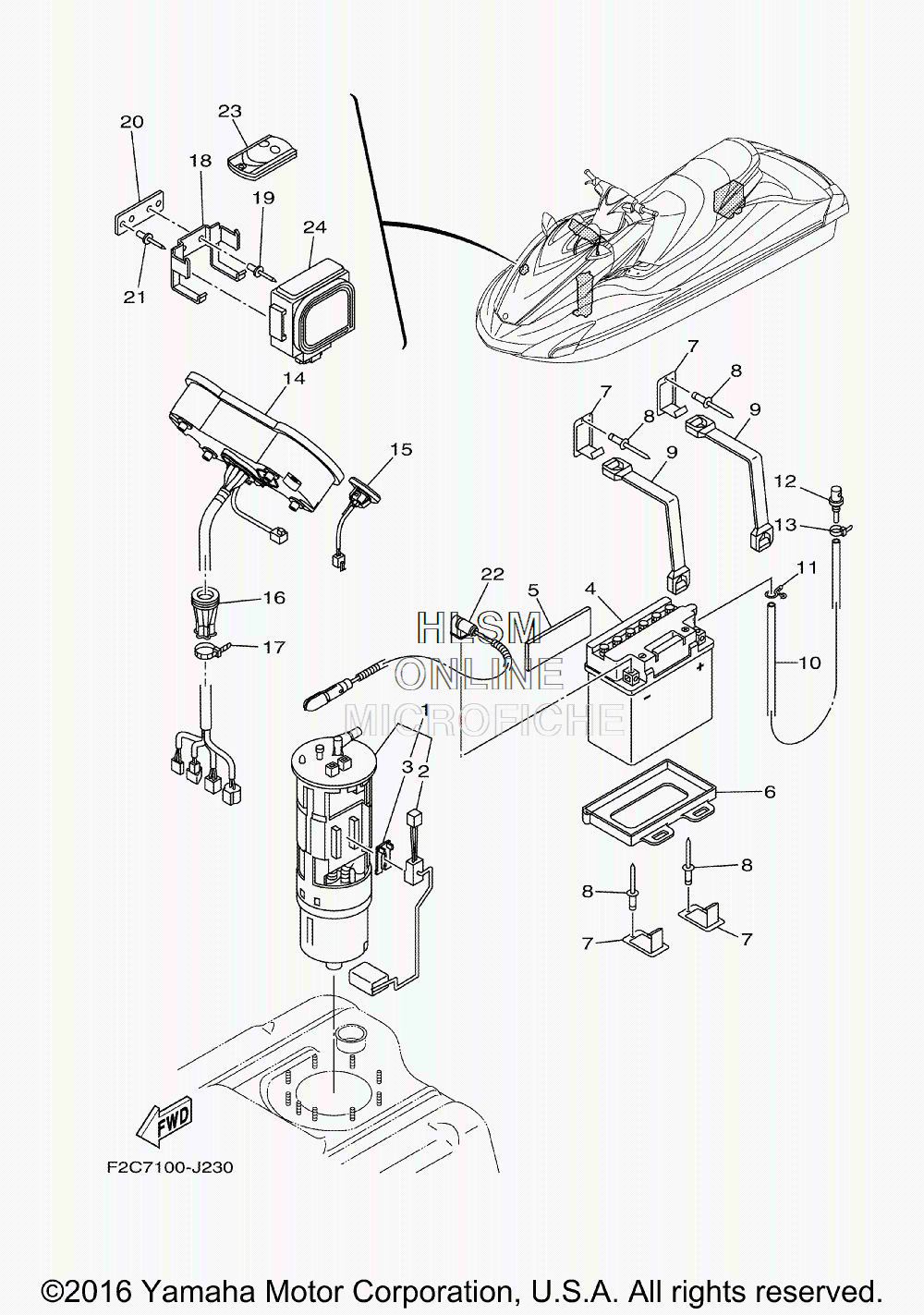

ELECTRICAL 3 для Yamaha FXR - 2015 года выпуска
-
№АртикулНазвание
-
16S5-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
26S5-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
4EU0-82110-09-00 BATTERY ASSY (YB16CL-B) (YUASA)BATTERY ASSY (YB16CL-B) (YUASA)
-
5F1K-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
6F1K-U8211-01-00 CASE, BATTERYCASE, BATTERY
-
7F1K-U5772-04-00 HOOK AHOOK A
-
890267-489U1-00 RIVET,BLINDRIVET,BLIND
-
9F1K-U821D-01-00 BAND, BATTERY 1BAND, BATTERY 1
-
10F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1190467-089U1-00 CLIPCLIP
-
12GJ3-6215F-00-00 NIPPLENIPPLE
-
1390465-11829-00 CLAMPCLAMP
-
14F2C-6820A-10-00 METER ASSYMETER ASSY
-
15F2C-68090-00-00 SWITCH ASSY.SWITCH ASSY.
-
16F1X-U822E-00-00 GROMMETGROMMET
-
1790601-200U1-00 BANDBAND
-
18F1W-U826C-00-00 BRACKETBRACKET
-
1990267-489U1-00 RIVET,BLINDRIVET,BLIND
-
20F1W-U8376-00-00 PLATEPLATE
-
2190267-489U1-00 RIVET,BLINDRIVET,BLIND
-
226S5-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
236B6-86261-00-00 XMTR. COMP.XMTR. COMP.
-
246B6-86265-00-00 RECEIVER COMPLETERECEIVER COMPLETE
