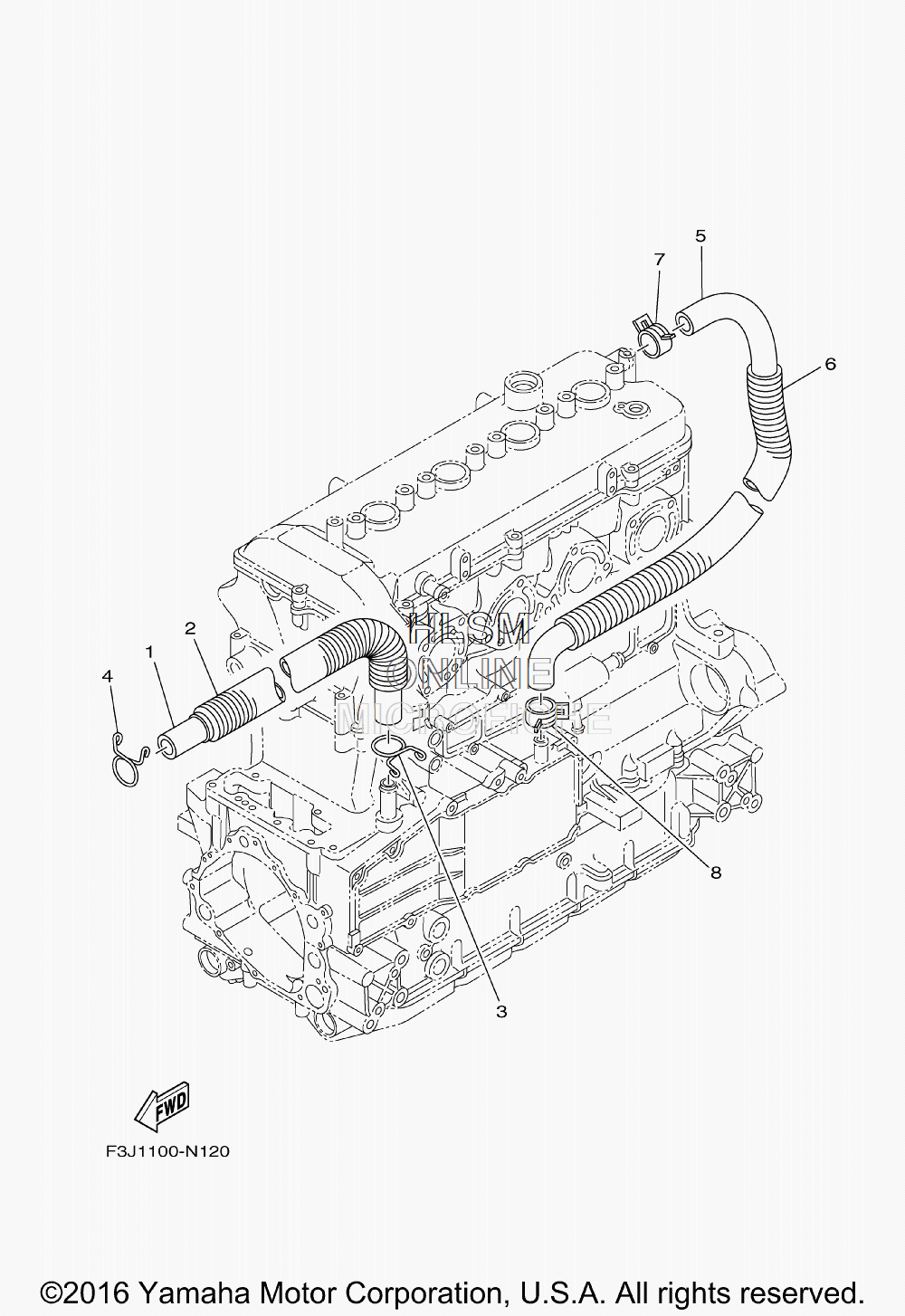

OIL BREATHER ASSY. для Yamaha FXR - 2015 года выпуска`
-
№АртикулНазвание
-
16S5-11166-10-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
290447-22015-00 TUBE (L410)TUBE (L410)
-
390467-190A0-00 CLIPCLIP
-
490467-190A0-00 CLIPCLIP
-
56S5-11167-10-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
690447-22016-00 TUBE (L490)TUBE (L490)
-
790467-240A0-00 CLIPCLIP
-
890467-200A3-00 CLIPCLIP
