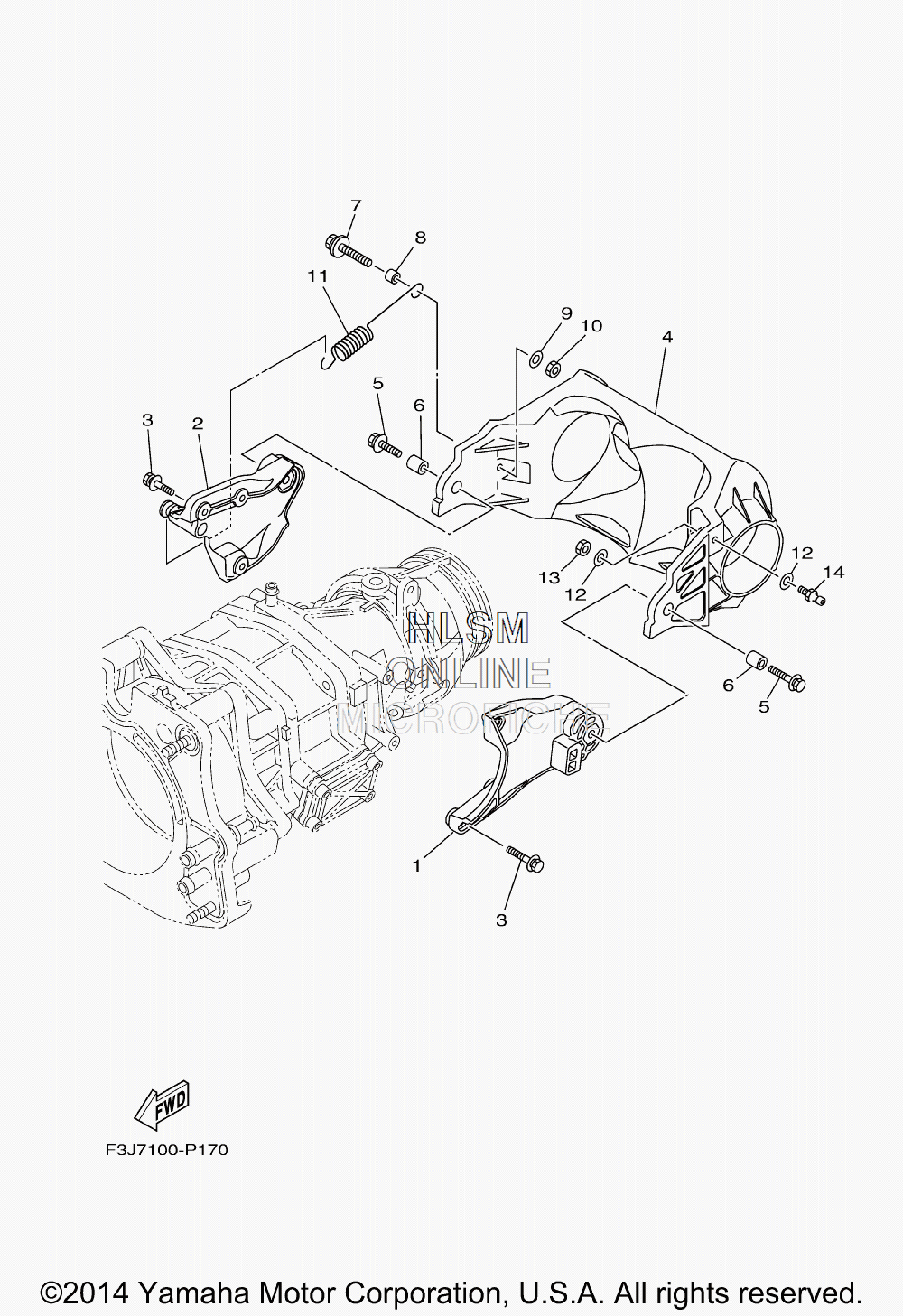

REVERSE GATE для Yamaha FX SVHO - 2015 года выпуска`
-
№АртикулНазвание
-
16ET-R1341-00-00 BRACKET 1BRACKET 1
-
26ET-R1342-00-00 BRACKET 2BRACKET 2
-
390119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
46ET-R1314-01-00 GATE, REVERSEGATE, REVERSE
-
590119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690387-08M30-00 COLLARCOLLAR
-
790119-069UX-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890387-06M30-00 COLLARCOLLAR
-
990201-06801-00 WASHER, PLATEWASHER, PLATE
-
109538R-06600-00 NUTNUT
-
116S5-52358-00-00 SPRING, RETAINERSPRING, RETAINER
-
1290201-06801-00 WASHER, PLATEWASHER, PLATE
-
139538R-06600-00 NUTNUT
-
14EU0-U1461-03-00 STUD, JOINT BALLSTUD, JOINT BALL
Все узлы модели:
- AIR CLEANER ASSY.
- BILGE PUMP
- BILGE SYSTEM
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD ASSY
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- • REVERSE GATE
- SEAT - REAR GRIP
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- SUPER CHARGER ASSY
- THROTTLE BODY ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
