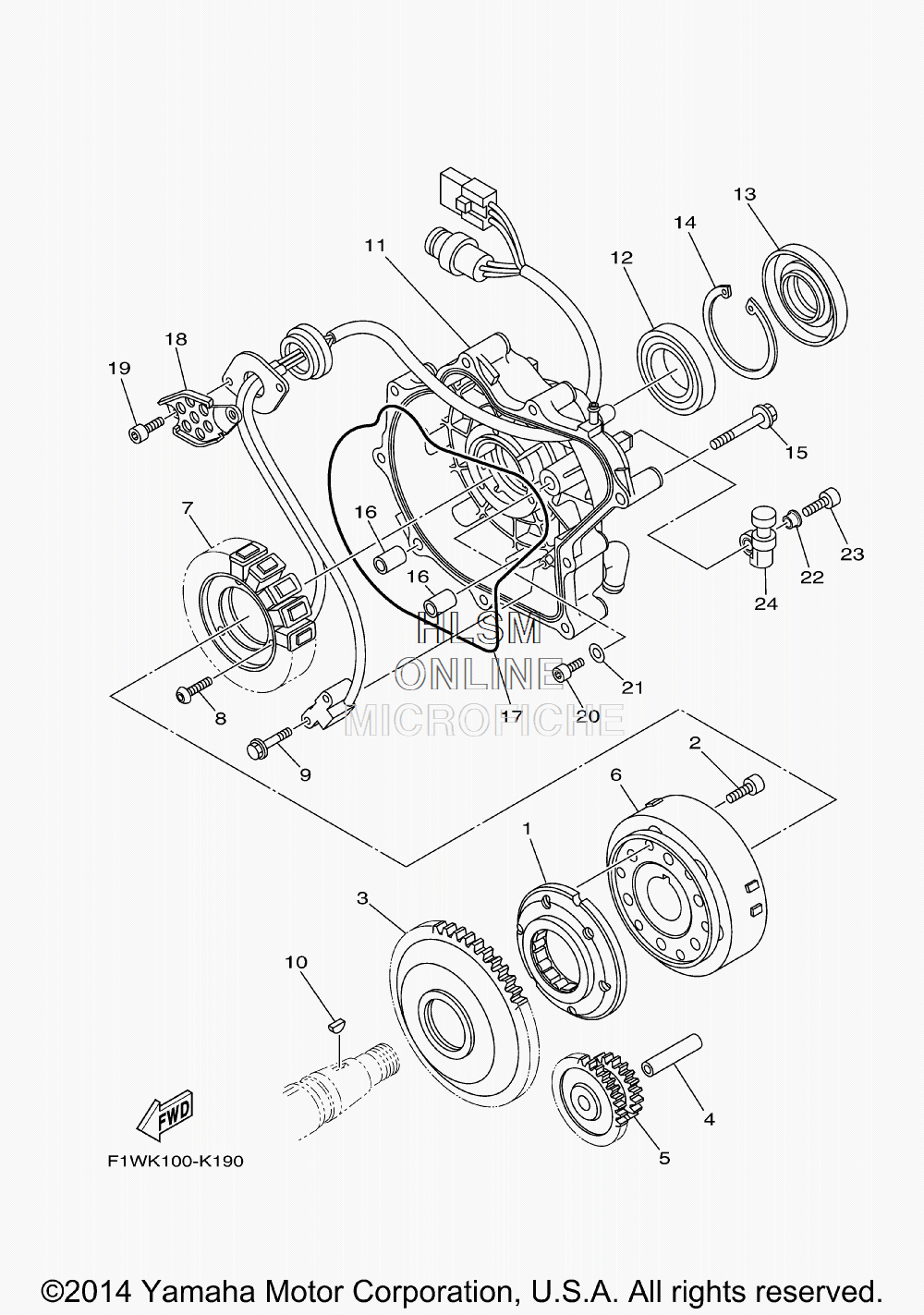

GENERATOR для Yamaha FX SVHO - 2015 года выпуска
‹-+›
-
№АртикулНазвание
-
16S5-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
290110-08212-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
36S5-15515-00-00 GEAR 3GEAR 3
-
46S5-15521-00-00 SHAFT 1SHAFT 1
-
56S5-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
66S5-81450-01-00 ROTOR ASSYROTOR ASSY
-
76S5-81410-11-00 STATOR ASSYSTATOR ASSY
-
890149-06229-00 SCREWSCREW
-
997513-05514-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090280-03047-00 KEY, WOODRUFFKEY, WOODRUFF
-
116S5-81337-20-00 COVER, FLYWHEELCOVER, FLYWHEEL
-
1293306-00805-00 BEARINGBEARING
-
136S5-81167-10-00 OIL SEALOIL SEAL
-
1499009-72500-00 CIRCLIPCIRCLIP
-
1590105-08249-00 BOLT, FLANGEBOLT, FLANGE
-
1699530-10114-00 PIN, DOWELPIN, DOWEL
-
176S5-81168-00-00 O-RINGO-RING
-
186S5-81328-00-00 CLAMPCLAMP
-
1991317-06014-00 BOLTBOLT
-
2091317-05010-00 BOLTBOLT
-
2190201-052E8-00 WASHER, PLATEWASHER, PLATE
-
2290387-06M05-00 COLLARCOLLAR
-
2391380-06020-00 BOLTBOLT
-
246S5-81364-10-00 GROMMETGROMMET
