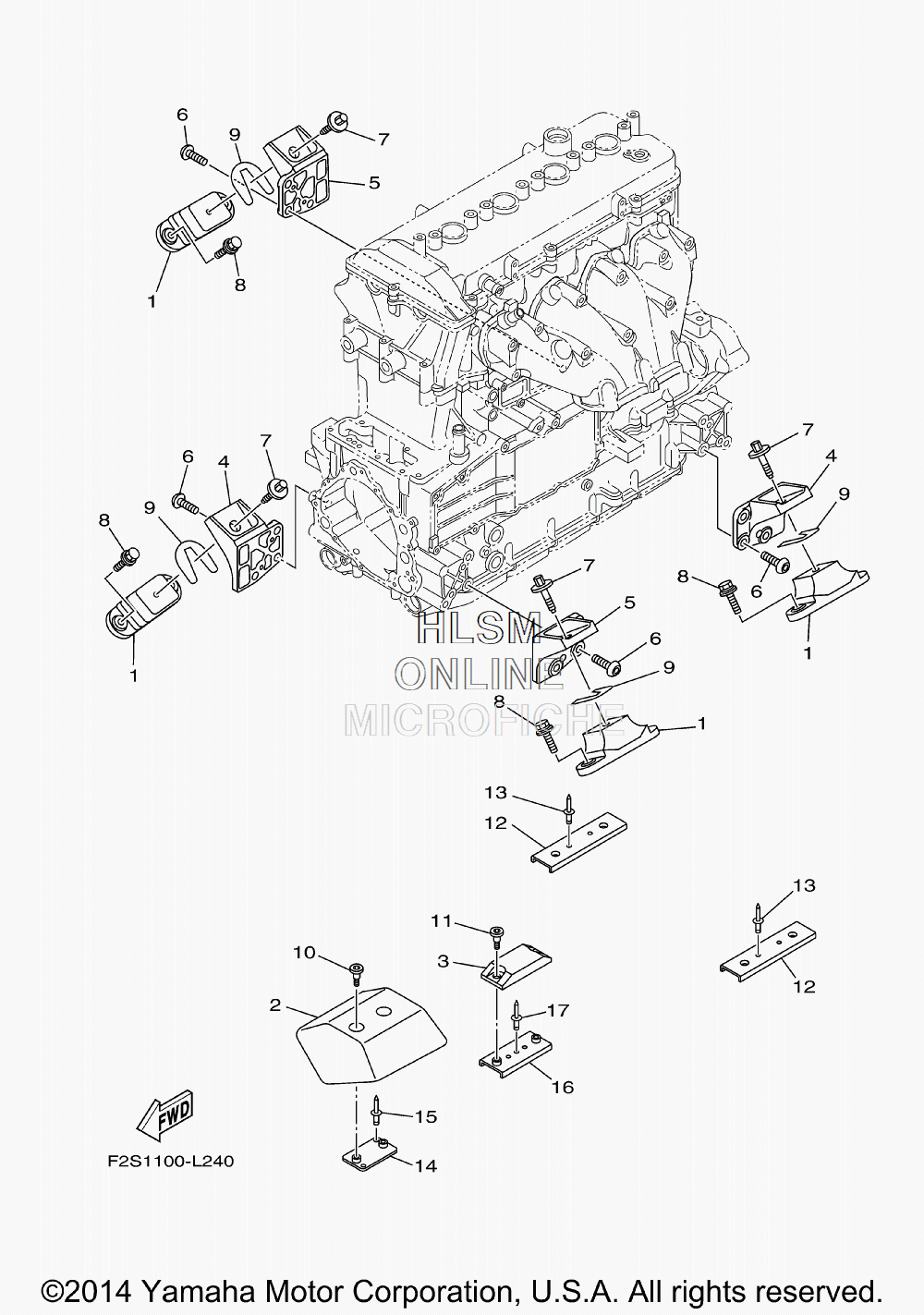

ENGINE MOUNTS для Yamaha FX SVHO - 2015 года выпуска`
-
№АртикулНазвание
-
167X-44517-10-00 MOUNT RUBBERMOUNT RUBBER
-
26BH-G4532-00-00 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
36BH-G4574-00-00 STOPPER, LOWER MOUNTSTOPPER, LOWER MOUNT
-
46BH-41661-00-94 BRACKET 1BRACKET 1
-
56BH-41662-00-94 BRACKET 2BRACKET 2
-
690149-10052-00 SCREWSCREW
-
790119-08859-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
8F2S-U1355-00-00 BOLTBOLT
-
9EU0-U7354-00-10 SHIM (T=1.0)SHIM (T=1.0)
-
9EU0-U7354-00-20 SHIM (T=2.0)SHIM (T=2.0)
-
9EU0-U7354-00-05 SHIM (T=0.5)SHIM (T=0.5)
-
9EU0-U7354-00-03 SHIM (T=0.3)SHIM (T=0.3)
-
9EU0-U7354-00-01 SHIM (T=0.1)SHIM (T=0.1)
-
1090109-06874-00 BOLTBOLT
-
1190109-06875-00 BOLTBOLT
-
12F2S-U732B-00-00 PLATEPLATE
-
1390267-489U2-00 RIVET, BLINDRIVET, BLIND
-
14F2S-U732B-10-00 PLATEPLATE
-
1590267-489U2-00 RIVET, BLINDRIVET, BLIND
-
16F2M-U732B-00-00 PLATEPLATE
-
1790267-489U2-00 RIVET, BLINDRIVET, BLIND
