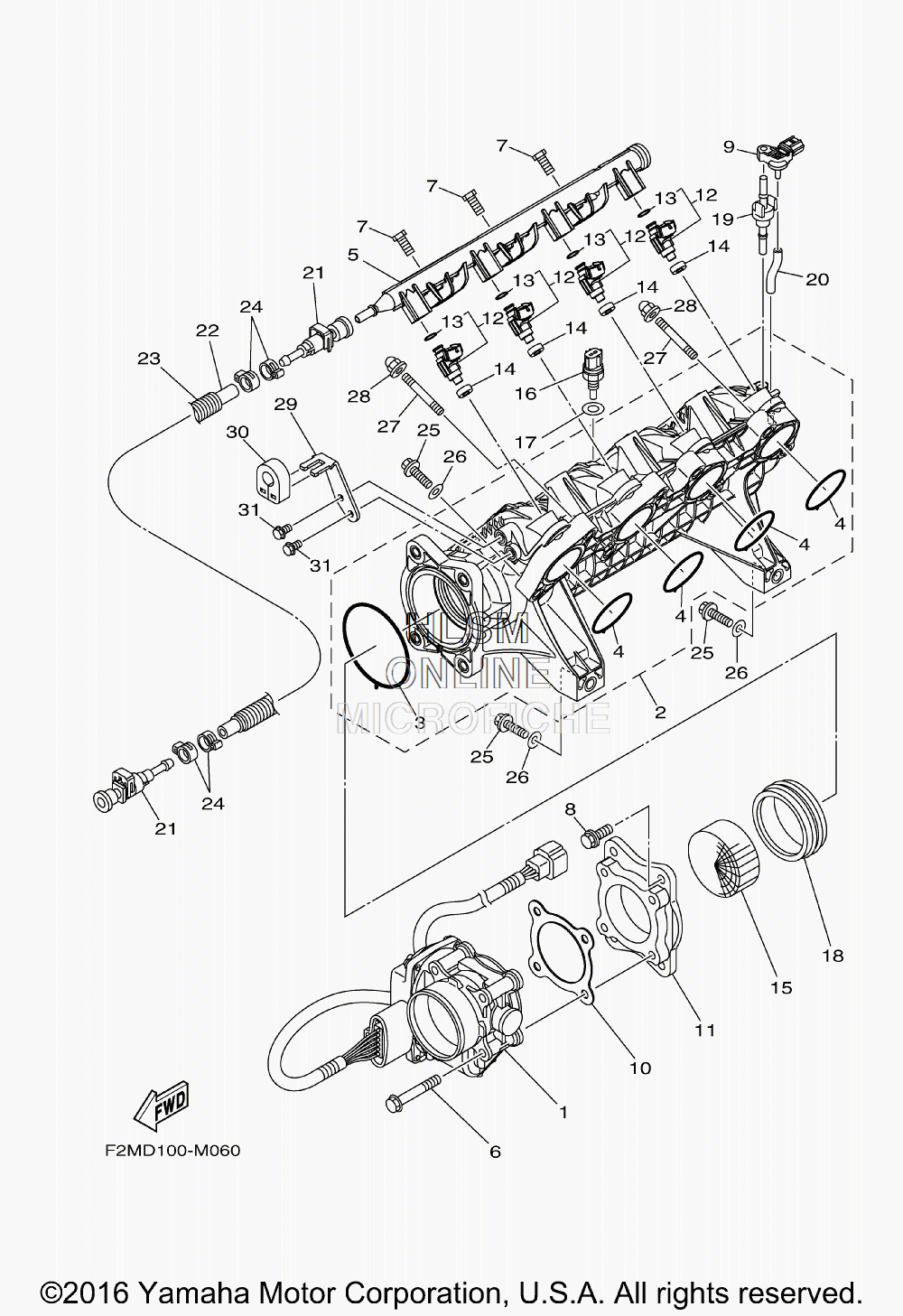

THROTTLE BODY ASSY. для Yamaha FX HO - 2015 года выпуска`
-
№АртикулНазвание
-
16BH-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
26BH-13641-10-00 MANIFOLD, INTAKE 1MANIFOLD, INTAKE 1
-
36BH-14156-00-00 ...GASKET, INSULATING...GASKET, INSULATING
-
46BH-14126-00-00 ...GASKET...GASKET
-
56CS-12880-00-00 DELIVERY PIPEDELIVERY PIPE
-
690105-08243-00 BOLT, FLANGEBOLT, FLANGE
-
76CS-14446-00-00 BOLTBOLT
-
897513-08525-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
96BH-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
106CR-14536-00-00 GASKETGASKET
-
116CR-14163-00-00 SPACERSPACER
-
126S5-13761-10-00 INJECTORINJECTOR
-
1368V-1416A-00-00 ...O-RING...O-RING
-
148FP-13556-10-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
156D3-1444B-00-00 RIBBONRIBBON
-
1665L-85886-00-00 THERMOSENSORTHERMOSENSOR
-
176S5-14285-00-00 WASHERWASHER
-
186S5-14457-00-00 HOLDERHOLDER
-
196BH-14445-00-00 GROMMETGROMMET
-
206BH-13532-00-00 HOSE, VACUUM SENSING 3HOSE, VACUUM SENSING 3
-
216S5-24300-01-00 FUEL PIPE JOINTFUEL PIPE JOINT
-
226AN-14294-10-00 HOSEHOSE
-
2390447-19017-00 TUBE (L495)TUBE (L495)
-
2490450-17M17-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2597013-08035-00 BOLTBOLT
-
2692903-08600-00 WASHER, PLATEWASHER, PLATE
-
2790116-08032-00 BOLT, STUDBOLT, STUD
-
2890176-08080-00 NUT, CROWNNUT, CROWN
-
296CR-14572-00-00 PLATE, STAYPLATE, STAY
-
306CS-14445-00-00 GROMMETGROMMET
-
3195023-06012-00 BOLTBOLT
