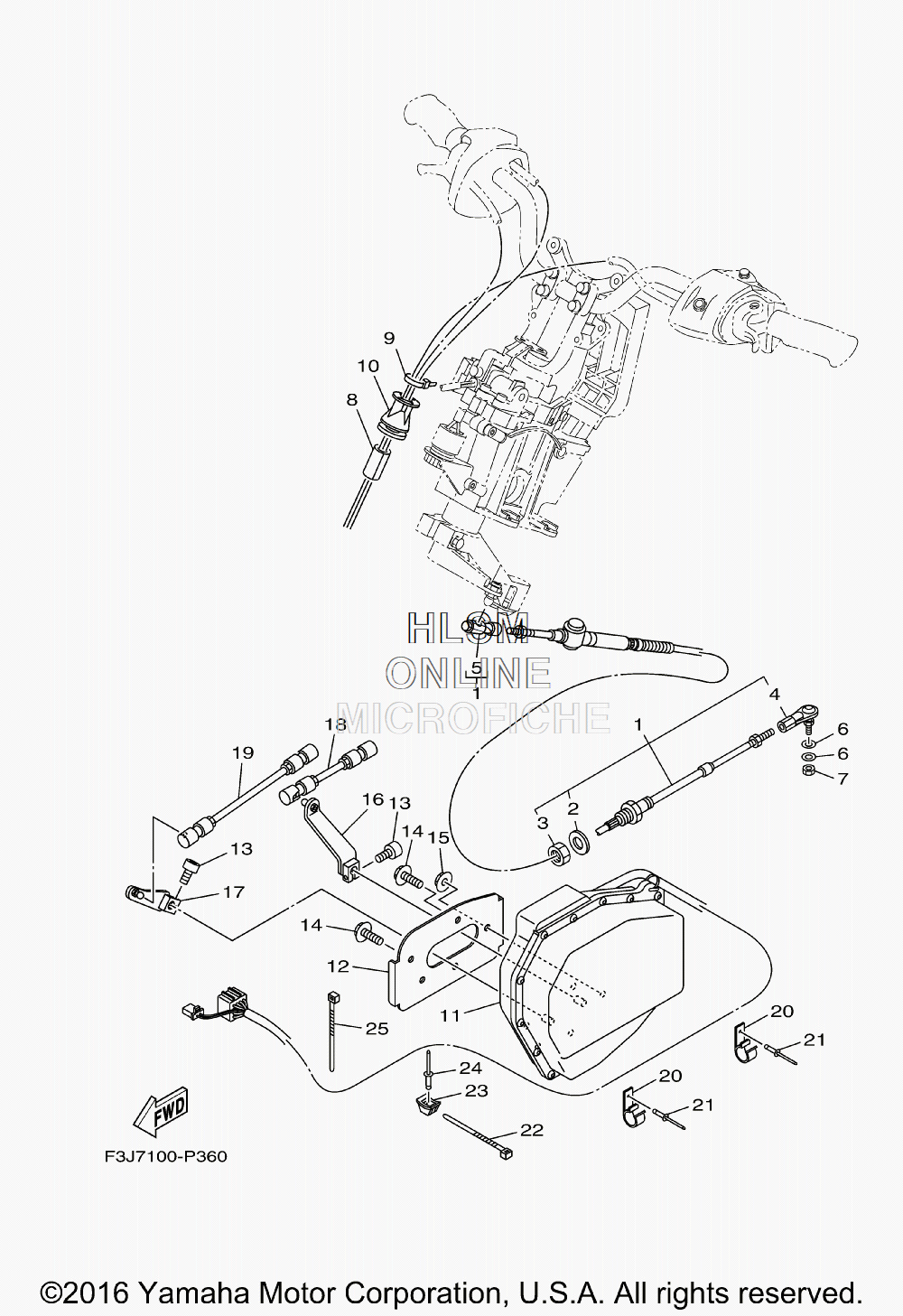

CONTROL CABLES для Yamaha FX HO - 2015 года выпуска
‹-+›
-
№АртикулНазвание
-
1F1S-61481-10-00 CABLE, STEERINGCABLE, STEERING
-
2F1B-61438-00-00 ...PACKING C...PACKING C
-
3F1B-6151S-00-00 ...NUT...NUT
-
4F1B-61461-02-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
5F2N-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
690201-06906-00 WASHER, PLATEWASHER, PLATE
-
79538R-06700-00 NUTNUT
-
8GJ1-U7578-21-00 PACKING, HOSE 2PACKING, HOSE 2
-
990464-32801-00 CLAMPCLAMP
-
10F3J-U822E-00-00 GROMMETGROMMET
-
11F3J-6140B-00-00 MOTOR ASSY.MOTOR ASSY.
-
12F3J-U8285-00-00 PLATEPLATE
-
1390110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
159572R-08300-00 NUT, FLANGENUT, FLANGE
-
16F3J-6150E-00-00 TRIM ARM ASSYTRIM ARM ASSY
-
17F3J-6150F-00-00 SHIFT ARM ASSYSHIFT ARM ASSY
-
18F3J-6150A-00-00 ROD ASSYROD ASSY
-
19F3J-6150D-00-00 ROD ASSY 2ROD ASSY 2
-
20F3J-U8368-00-00 CLAMPCLAMP
-
2190267-409U5-00 RIVET, BLINDRIVET, BLIND
-
2290464-32801-00 CLAMPCLAMP
-
23F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2490267-48802-00 RIVET, BLINDRIVET, BLIND
-
2590464-32801-00 CLAMPCLAMP
