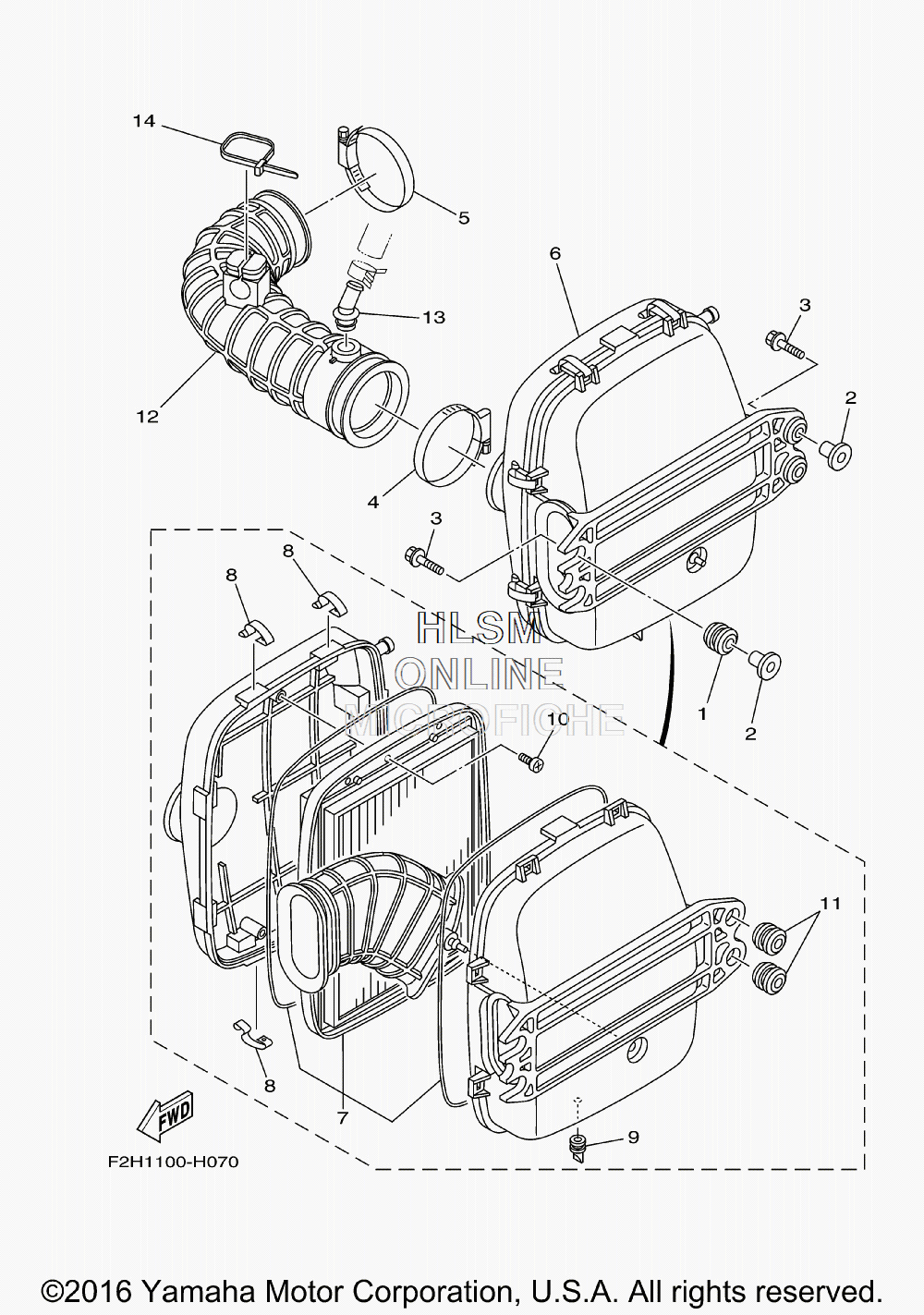

AIR CLEANER ASSY. для Yamaha FX HO - 2015 года выпуска`
-
№АртикулНазвание
-
190480-22M15-00 GROMMETGROMMET
-
290387-08M37-00 COLLARCOLLAR
-
390119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490450-90002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
590450-90002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
66S5-E4410-01-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
76S5-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
86S5-E4436-00-00 ...HOOK...HOOK
-
96S5-G2717-00-00 ...RUBBER, SEAL 2...RUBBER, SEAL 2
-
1097780-60516-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1190480-22801-00 ...GROMMET...GROMMET
-
126BH-E4419-00-00 PIPEPIPE
-
136BH-R1142-10-00 CONNECTIONCONNECTION
-
1490464-40825-00 CLAMPCLAMP
