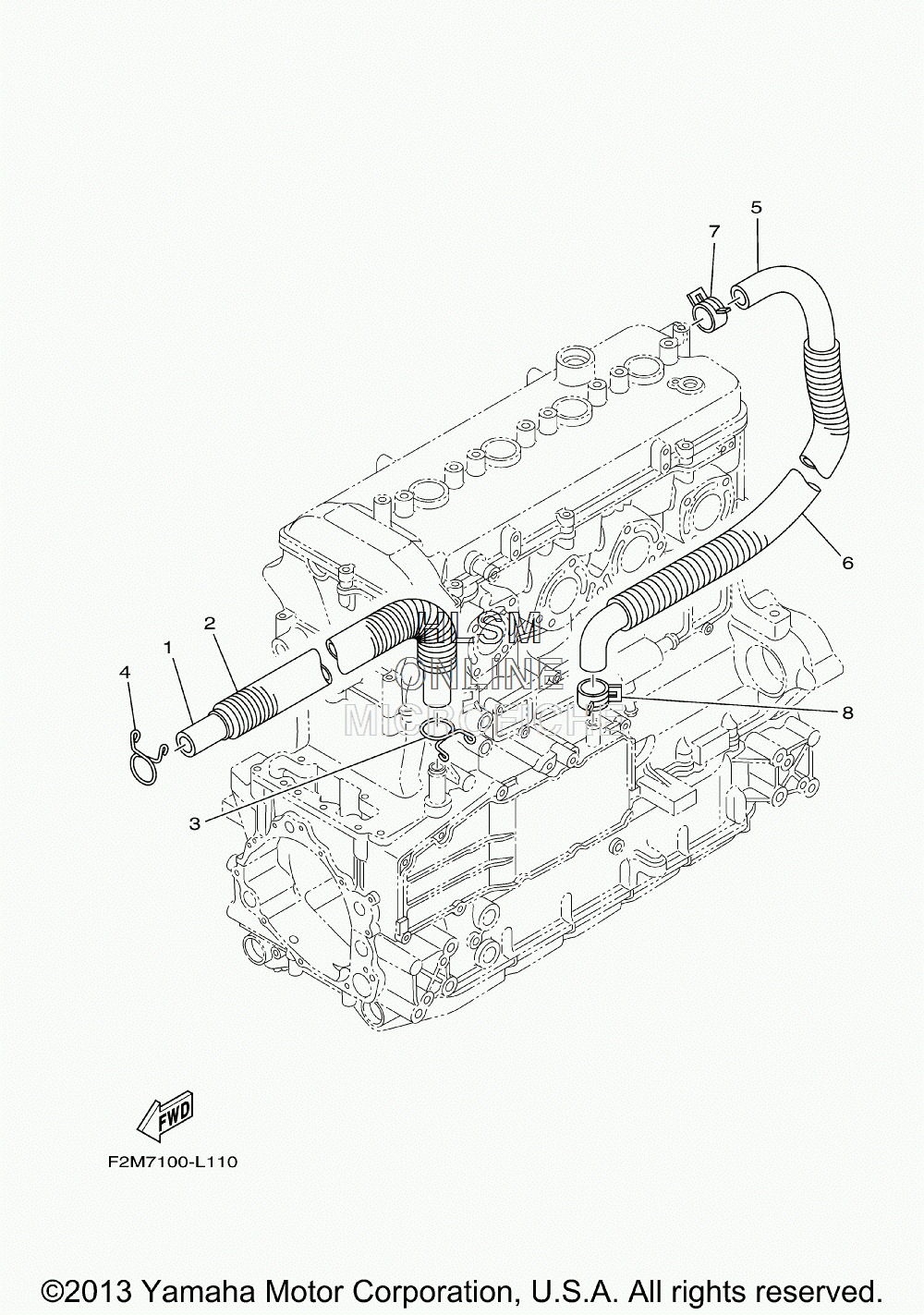

OIL BREATHER ASSY. для Yamaha VXS - 2014 года выпуска`
-
№АртикулНазвание
-
16S5-11166-10-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
290447-22015-00 TUBE (L410)TUBE (L410)
-
390467-190A0-00 CLIPCLIP
-
490467-190A0-00 CLIPCLIP
-
56S5-11167-10-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
690447-22016-00 TUBE (L490)TUBE (L490)
-
790467-240A0-00 CLIPCLIP
-
890467-200A3-00 CLIPCLIP
Все узлы модели:
- AIR FILTER
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- • OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
