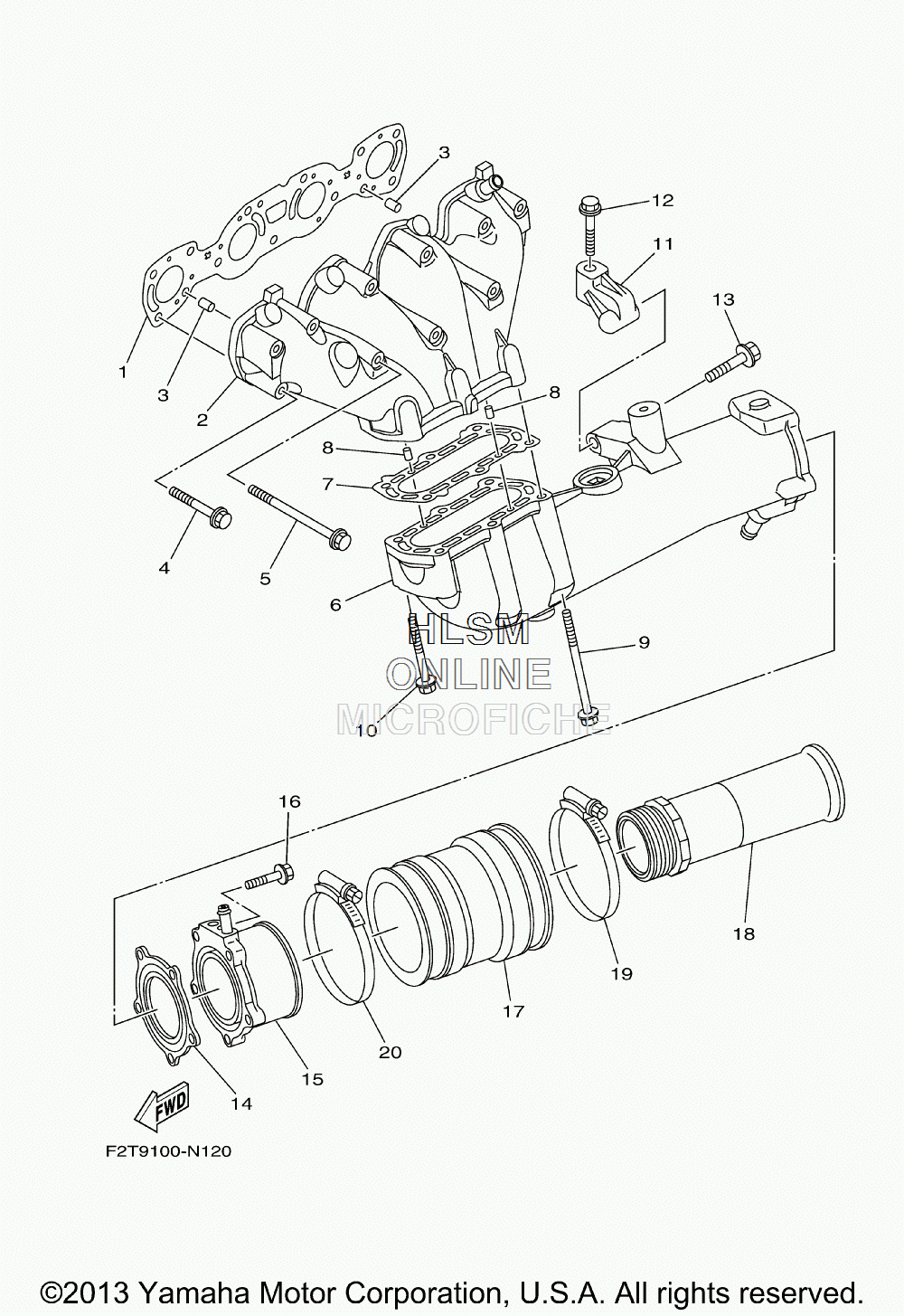

EXHAUST SYSTEM для Yamaha VXS - 2014 года выпуска`
-
№АртикулНазвание
-
16BH-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
26BH-14711-10-00 MUFFLER 1MUFFLER 1
-
393608-16M16-00 PIN, DOWELPIN, DOWEL
-
490119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-08097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
66BH-14721-10-00 MUFFLER 2MUFFLER 2
-
76S5-14739-00-00 GASKET, MUFFLER DAMPER 1GASKET, MUFFLER DAMPER 1
-
893606-12019-00 PIN, DOWELPIN, DOWEL
-
990119-08097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
116S5-14771-00-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
1290119-08096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-10029-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
146BH-14749-00-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
156BH-14784-01-94 PIPE, TAILPIPE, TAIL
-
1695024-08035-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
176S5-E4752-00-00 PIPE, OUTLETPIPE, OUTLET
-
186CS-1475A-00-00 PIPE 1PIPE 1
-
1990450-99016-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2090450-99015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
