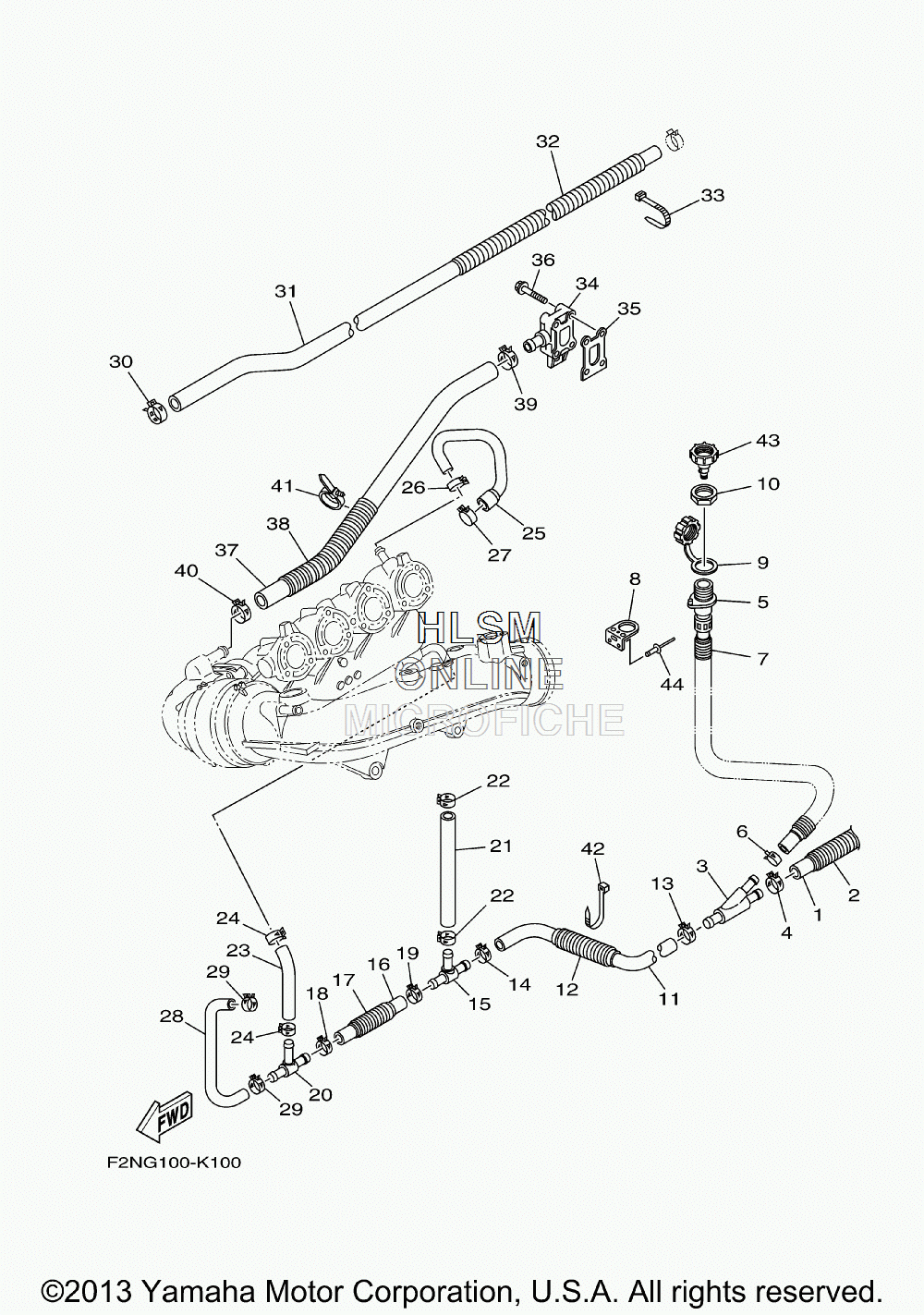

EXHAUST - HOSES для Yamaha VX CRUISER - 2014 года выпуска`
-
№АртикулНазвание
-
190445-21805-00 HOSE (L300)HOSE (L300)
-
290447-22004-00 HOSE, WITH SPRING (L200)HOSE, WITH SPRING (L200)
-
360E-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
490467-200A3-00 CLIPCLIP
-
563M-12580-00-00 JOINT ASSYJOINT ASSY
-
690467-150A5-00 CLIPCLIP
-
790447-19801-00 TUBE (L485)TUBE (L485)
-
860E-12443-00-00 STAYSTAY
-
9682-84385-01-00 CAP,1CAP,1
-
10EU0-61652-00-00 NUTNUT
-
116BU-1243A-00-00 HOSE 1HOSE 1
-
1290447-22003-00 HOSE, WITH SPRING (L300)HOSE, WITH SPRING (L300)
-
1390467-200A3-00 CLIPCLIP
-
1490467-200A3-00 CLIPCLIP
-
1560E-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
166S5-12589-01-00 HOSE 6HOSE 6
-
1790447-22001-00 HOSE, WITH SPRING (L100)HOSE, WITH SPRING (L100)
-
1890467-200A3-00 CLIPCLIP
-
1990467-200A3-00 CLIPCLIP
-
206D3-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
216D3-1244H-10-00 HOSE 5HOSE 5
-
2290467-160A0-00 CLIPCLIP
-
2390445-18M03-00 HOSE (L108)HOSE (L108)
-
2490467-160A0-00 CLIPCLIP
-
256D3-12577-10-00 HOSE 2HOSE 2
-
2690467-170A4-00 CLIPCLIP
-
2790467-200A3-00 CLIPCLIP
-
286D3-1244G-10-00 HOSE, 4HOSE, 4
-
2990467-160A0-00 CLIPCLIP
-
3090467-210A0-00 CLIPCLIP
-
3190445-22007-00 HOSE (L1165)HOSE (L1165)
-
3290447-25002-00 TUBE (L800)TUBE (L800)
-
3390464-35132-00 CLAMPCLAMP
-
346D3-12446-00-00 JOINTJOINT
-
3560E-12435-00-00 GASKETGASKET
-
3690105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
376BU-1243F-10-00 HOSE,3HOSE,3
-
3890447-22005-00 HOSE, WITH SPRING (L200)HOSE, WITH SPRING (L200)
-
3990467-200A3-00 CLIPCLIP
-
4090467-200A3-00 CLIPCLIP
-
4190464-31001-00 CLAMPCLAMP
-
4290464-35132-00 CLAMPCLAMP
-
4367X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
4490267-489U1-00 RIVET,BLINDRIVET,BLIND
