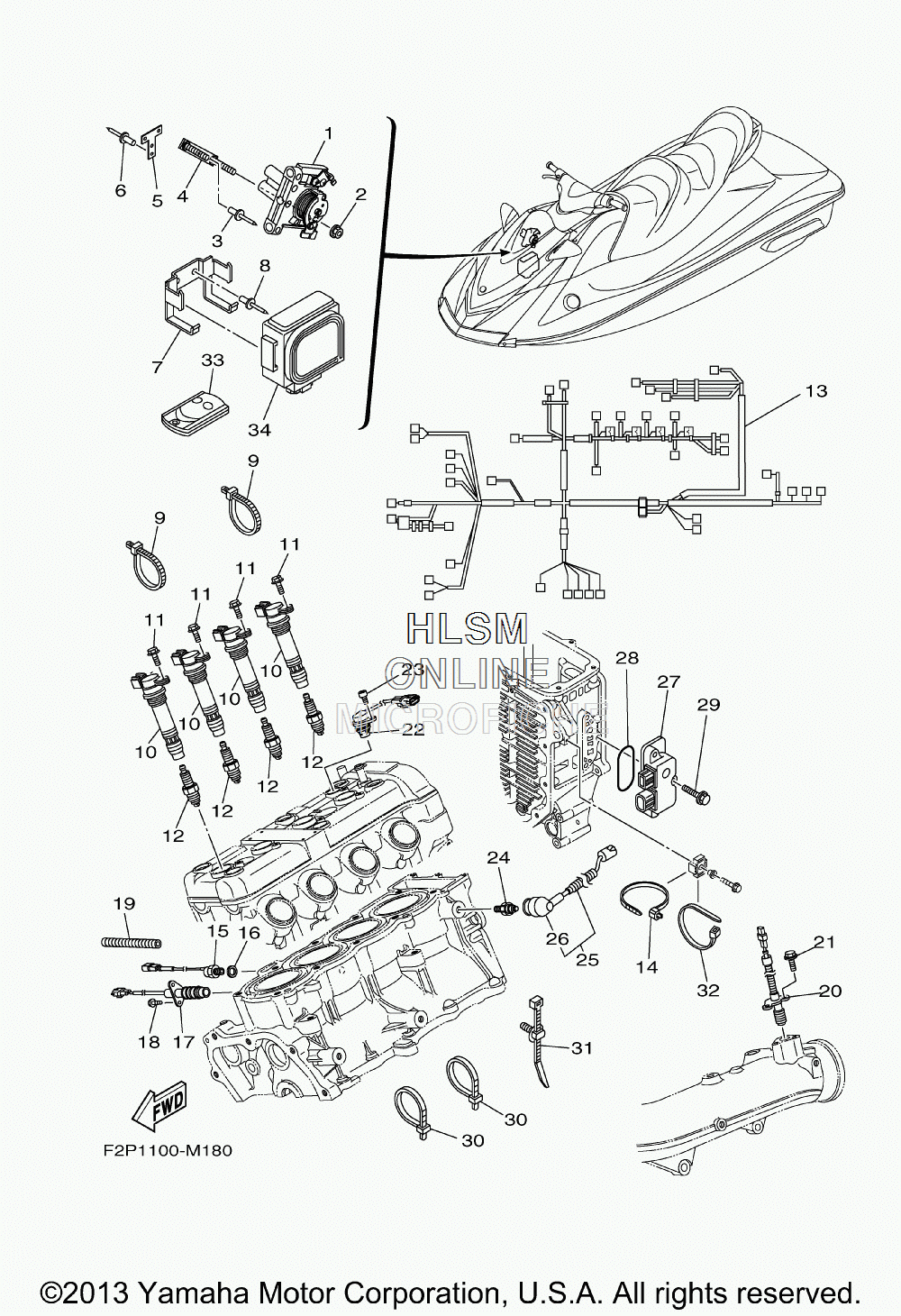

ELECTRICAL 2 для Yamaha VX CRUISER - 2014 года выпуска`
-
№АртикулНазвание
-
16D3-14305-21-00 ACCEL. POSITON SENSOR ASSYACCEL. POSITON SENSOR ASSY
-
295780-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
390267-489U1-00 RIVET,BLINDRIVET,BLIND
-
4F2N-U7254-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
5F2P-U8376-00-00 PLATEPLATE
-
690267-489U1-00 RIVET,BLINDRIVET,BLIND
-
7F1W-U826C-00-00 BRACKETBRACKET
-
890267-489U9-00 RIVET, BLINDRIVET, BLIND
-
990464-35132-00 CLAMPCLAMP
-
106D3-82310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1195880-06016-00 BOLT, FLANGEBOLT, FLANGE
-
12CR9-EB000-00-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
136BU-8259L-C0-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
1490465-13M24-00 CLAMPCLAMP
-
1561A-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1692990-10600-00 WASHER, PLATEWASHER, PLATE
-
1760E-82560-A1-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1897595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990446-14M23-00 HOSE (L180)HOSE (L180)
-
206D3-82560-01-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
2197595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
226D3-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
2391380-06016-00 BOLTBOLT
-
2468V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
2560E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
2660E-82532-00-00 ...CAP...CAP
-
276D3-8273J-01-00 EARTH PLATE COMP.EARTH PLATE COMP.
-
2893210-60ME8-00 O-RINGO-RING
-
2990119-06048-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090465-13M18-00 CLAMPCLAMP
-
3190464-45002-00 CLAMPCLAMP
-
3290465-13152-00 CLAMPCLAMP
-
336B6-86261-00-00 TRANSMITTER COMPTRANSMITTER COMP
-
346B6-86265-00-00 RECIVER COMPRECIVER COMP
